8.27 MAJ- 1635 EUS CONNECTOR HOLDER

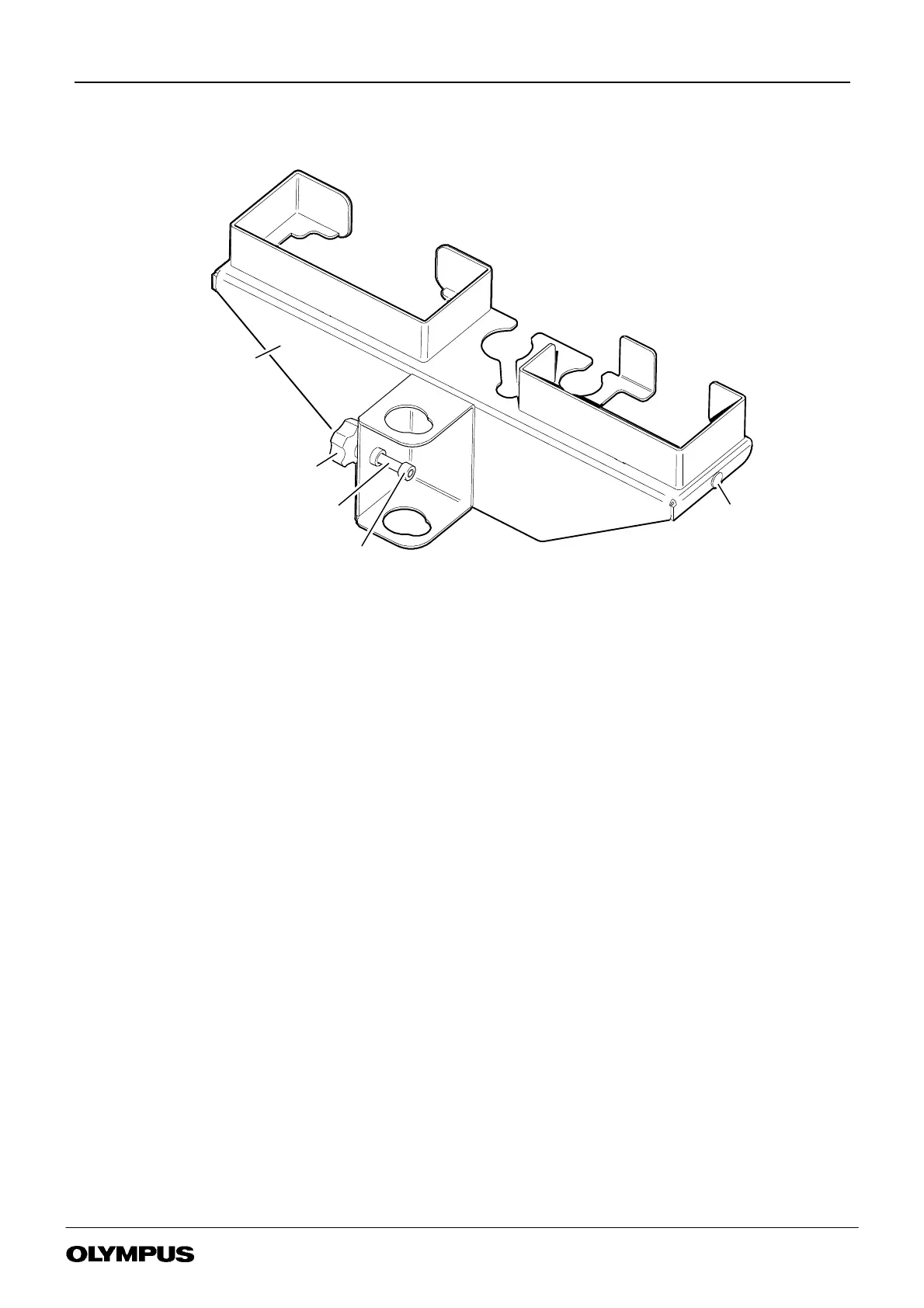

FIGURE 8-27
MAJ--1635 EUS CONNECTOR HOLDER
3
9
1
2
6
A/R
5
A/R
4
MAJ- 1635 EUS CONNECTOR HOLDER - p/no K10011159
Item Description Part No Qty
Torque
Remarks
1 MAJ--1635 EUS CONNECTOR BRACKET S/P ............... K10011158 1 -- --
2 BUSH ............................................ K7502527 1 -- --
3 HANDKNOBM6BLACK ............................... 3920317 1 -- --
4 GRUBSCREWNYLONENDM6X50 ...................... K10015225 1 -- --
5 ADHESIVEPERMABOND947 .......................... K10011344 A/R -- --
6 ADHESIVELOCTITE638 .............................. 3001067 A/R -- --
7 INSTRUCTIONS FOR U SE MAJ--1635 ..................... K10011180 1 -- N/S
9 GROMMET--black................................... K10015707 1 -- --
Remarks
N/S Not shown.
