8.19 MAJ- 1620 14” CRT MOUNT (NARROW)
MAJ- 1621 20” CRT MOUNT (NARROW)
MAJ- 1622 14” CRT MOUNT (WIDE)
MAJ- 1623 20” CRT MOUNT

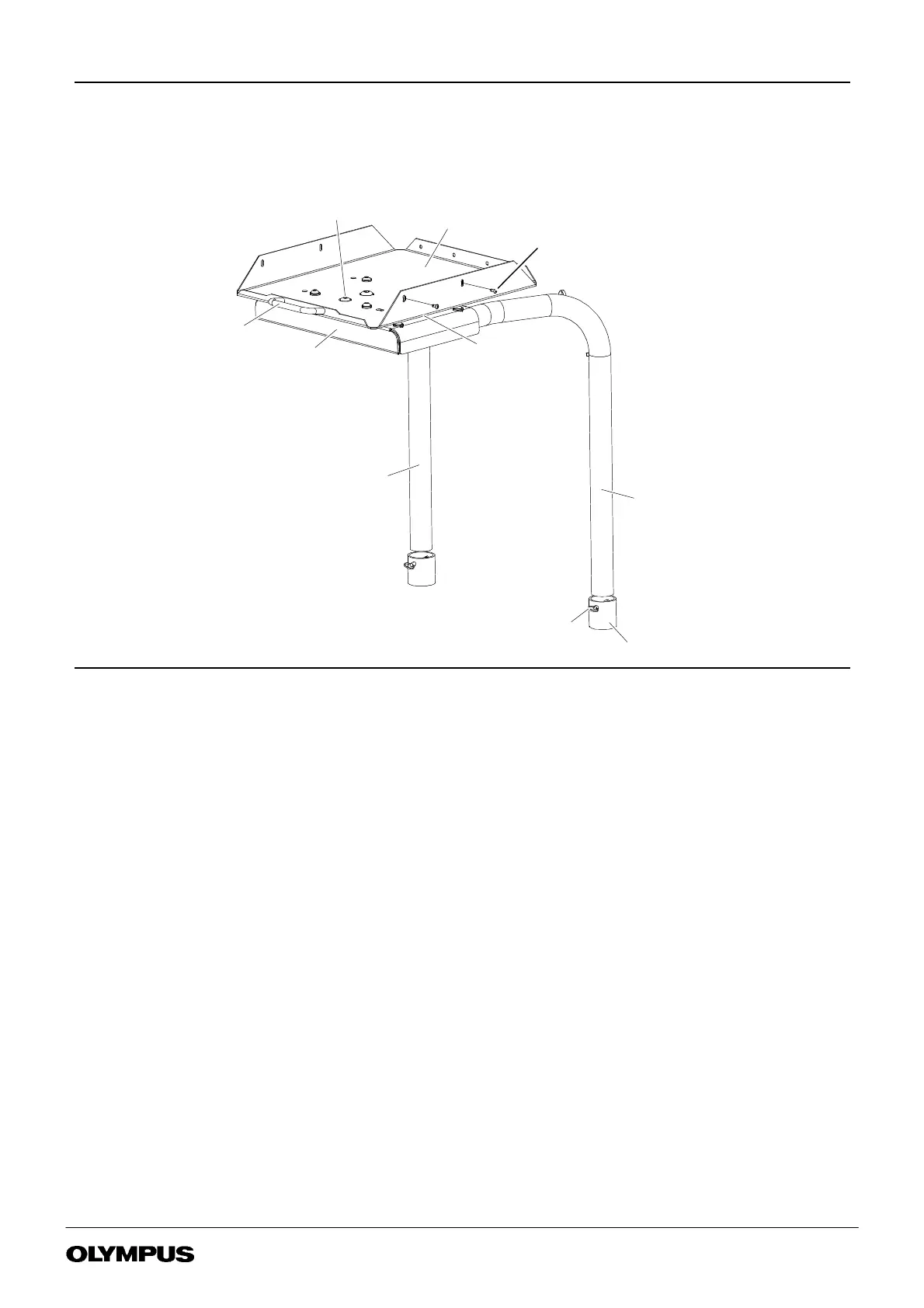

FIGURE 8-19
CRT MOUNT
2, 14
1, 14
5
4
8
15
7, 20, 26, 33
20 Nm
3
13, 22
2
,30
2
23
4
MAJ- 1620 14” CRT MOUNT (NARROW) p/no K10004201
MAJ- 1621 20” CRT MOUNT (NARROW) p/no K10004202
MAJ- 1622 14” CRT MOUNT (WIDE) p/no K10004203
MAJ- 1623 20” CRT MOUNT p/no K10004204
Item Description Part No Qty
Torque
Remarks
1 MONITORARMRHWM--NP1/WM--WP1 ................... K10004214 1 -- --
2 MONITORARMLHWM--NP1/WM--WP1 ................... K10004215 1 -- --
3 BRIDGEWM--260.................................... K7504046 1 -- A, B
MONITORBRIDGEWM--W260 .......................... K7504047 1 -- C,D
4 14INCHMONITORTRAY.............................. K7504030 1 -- A
20INCHMONITORTRAY.............................. K10004216 1 -- B,D
5 THRUST WASHER ................................... K7504039 1 -- --
6 ADAPTORPLATE.................................... K7504040 1 -- --
7 COLLAR .......................................... K7504038 1 -- --
8 COLLAR MONITOR ARMWM--NP1/WM--WP1.............. K10004213 2 -- --
9 ANGLEDADAPTORPLATE ............................ K7504041 1 -- --
10 SPARE
11 SPARE
12 SPARE
