WM--P1 SERIES WORKSTATIONS
8.26 MAJ- 1631 PLUG BLOCK KIT - EU

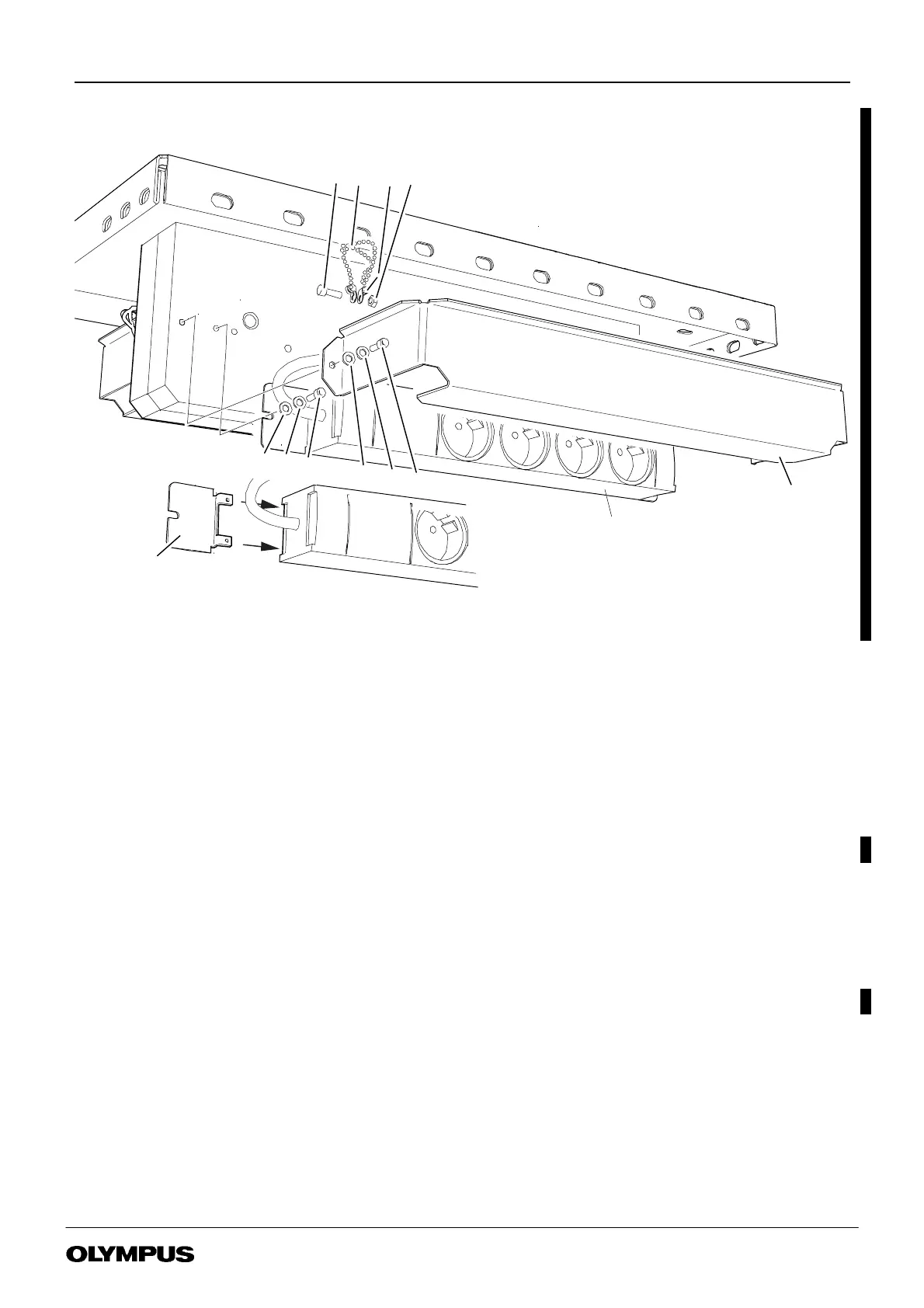

FIGURE 8-26
MAJ--1631 PLUG BLOCK KIT -- EU
12
3
8
1
3, 6
0.2m
,7
2
,9
4
8
5
8
3
8
4
8
5
8
Adaptor brackets
supplied with
Plug block item 12
MAJ- 1631 PLUG BLOCK KIT - EU p/no K10004515
Item Description Part No Qty
Torque
Remarks
1 PLUGBLOCKCOVER ................................ K10004501 2 -- --
2SPARE
3 SCREWM4x12HEXSKTCAPHD ...................... 3109445 10 -- --
4 WASHERM4 ....................................... 3071219 8 -- --
5 WASHERM4SINGLECOIL ............................ K10000038 8 -- --
6 CHAINBALL ....................................... 3090019 0.2m -- --
7 BALLCHAINCONNECTORNO.8 ........................ K3921579 4 -- --
8SPARE
9 NUTNORMALM4 ................................... 3038360 2 -- --
10 INSTRUCTIONS FOR MAJ--1631 ........................ K10004518 1 -- NS
11 SPARE
12 4 WAY SCHUKO SOCKET STRIP ........................ K10022588 2 -- --
13 SPARE --
14 ALLENKEY3MMA/F ................................. 3066142 1 -- NS
Remarks
NS Not shown
