Olympus WM-NP1 User Manual

Page 67 of 76
Issue 20 : July 2012
WM--P1 SERIES WORKSTATIONS
8.21 MAJ- 1625 EUM30 K EYBOARD

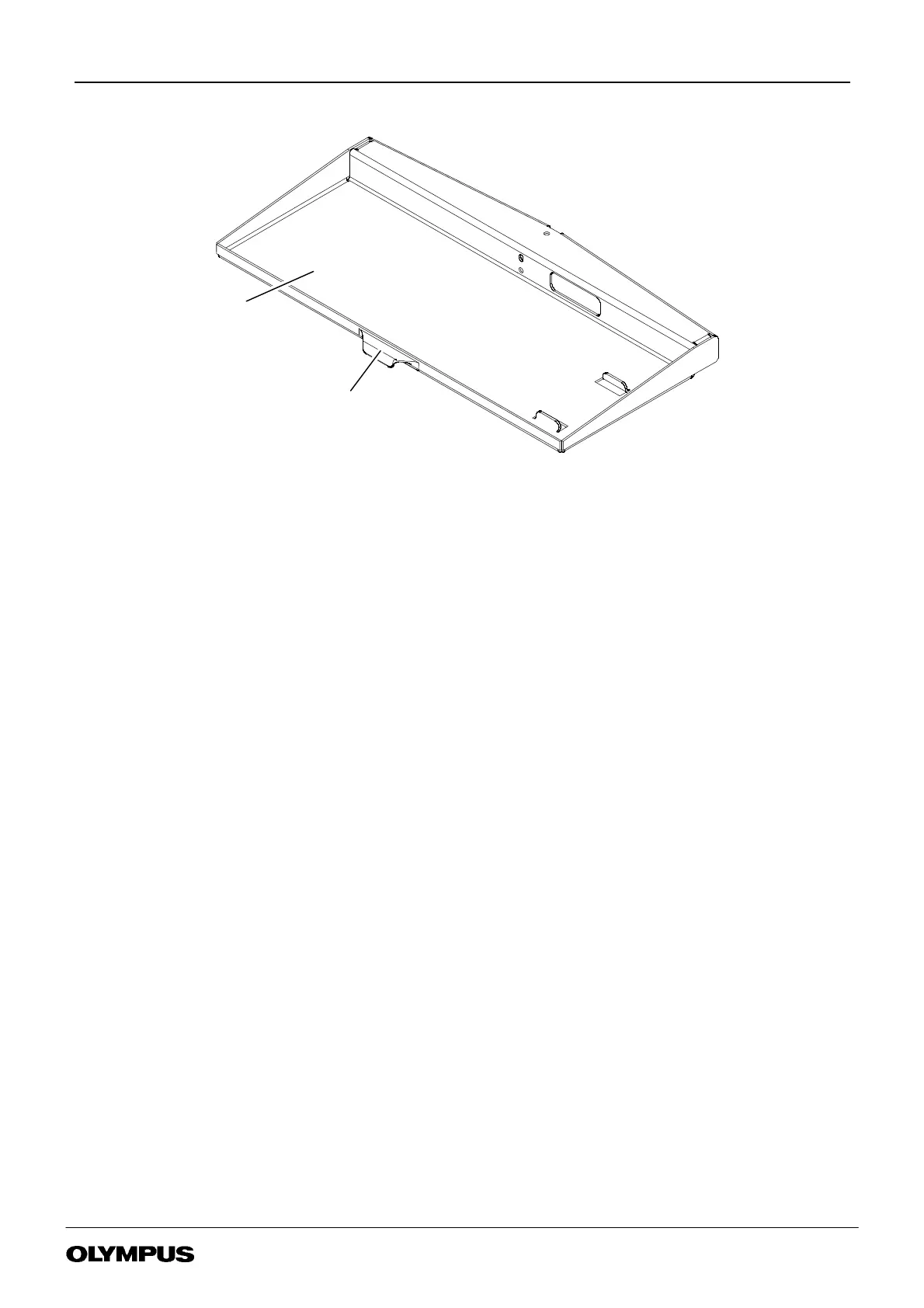

FIGURE 8-21
MAJ--1625 EUM30 KEYBOARD
1
2, 9
2
,8
2
,7
20,2--0,3Nm
MAJ- 1625 EUM30 KEYBOARD p/no K10004262
Item Description Part No Qty
Torque
Remarks
1 WELDED TRAY ASSY (WM--W260) ....................... K7504684 1 -- --
2 FINGERPULL ...................................... K7502154 1 -- --
3SPARE
4SPARE
5SPARE
6SPARE
7 SCREW 3 x 8 SELF TAPPING ........................... K3921297 2 0.2 --
0.3Nm
NS
8 WASHERCRINKLEM3 ............................... 3920331 2 -- NS
9 WASHERM3 ....................................... 3071227 2 -- NS
10 SPARE
11 SPARE
12 SPARE
13 SPARE
14 SCREWM6x12HEXSKTBUTTHD ..................... 3920326 3 -- A, NS
15 WASHERM6 ....................................... 3920333 3 -- A, NS
16 WASHERCRINKLEM6 ............................... 3072622 3 -- A, NS
17 SPARE
18 SPARE
19 INSTRUCTIONS FOR USE MAJ--146 (JAPANESE) ........... K5070391 1 -- NS
20 ALLENKEY4mm .................................... 3066011 1 -- NS
21 INSTRUCTIONS FOR USE MAJ-- 146 (ENGLISH) ............. K5070377 1 -- NS
Remarks
A These items secure the keyboard tray to the keyboard arm.
NS Not shown
