Olympus WM-NP1 - MAJ- - 198 WM- - NP1 Shelf Kit (Narrow); MAJ- - 199 WM- - WP1 Shelf Kit (Wide)

Page 57 of 76
Issue 20 : July 2012
WM--P1 SERIES WORKSTATIONS
8.14 MAJ- 198 WM- NP1 SHELF KIT (Narrow)
MAJ- 199 WM- WP1 SHELF KIT (Wide)

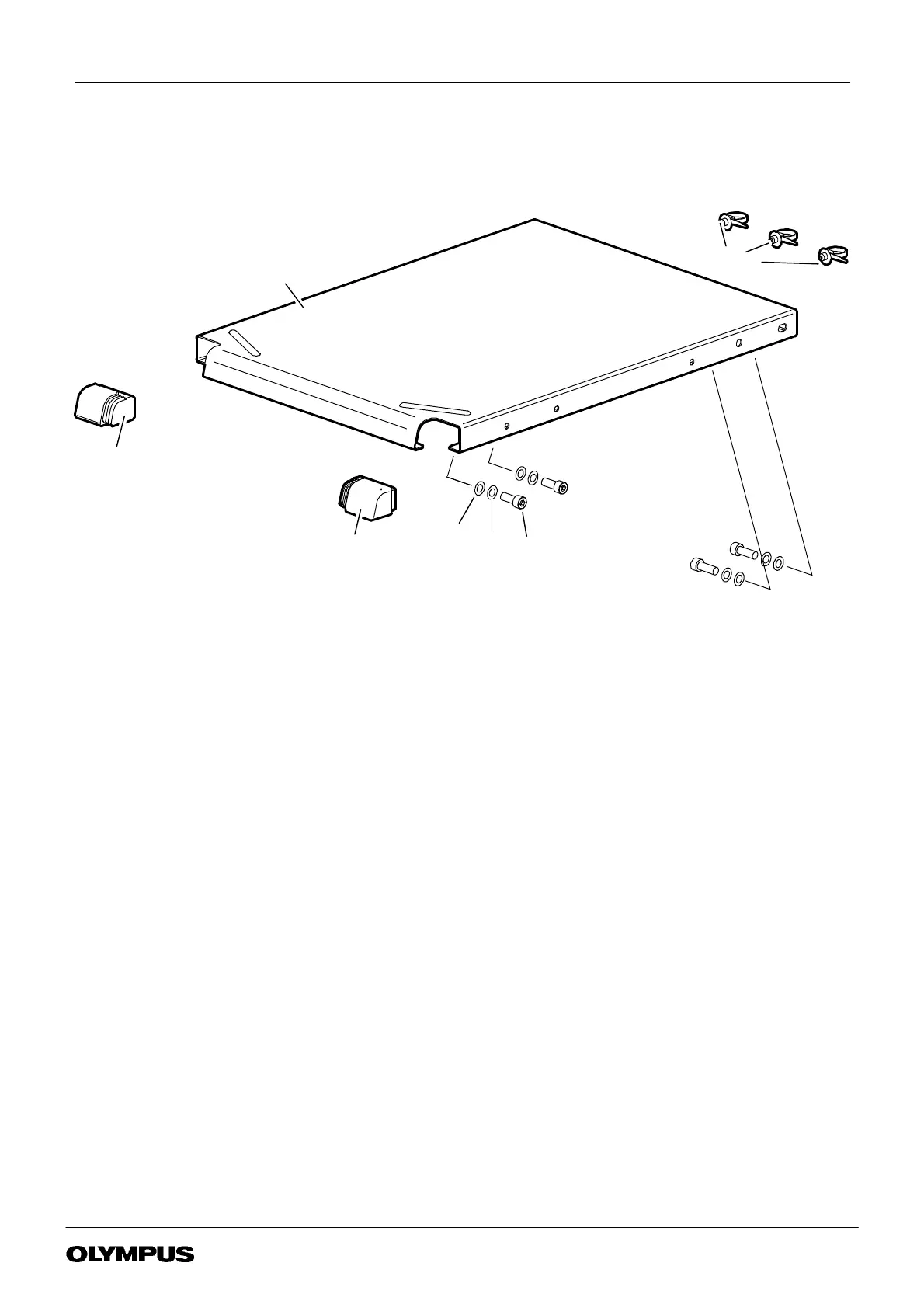

FIGURE 8-14
MAJ--198 WM--NP1 SHELF KI T (NARROW)
1
3
2
5
6
6
6
4
6
7
MAJ- 198 WM- NP1 SHELF KIT (Narrow) p/no K10001429
MAJ- 199 WM- WP1 SHELF KIT (Wide) p/no K10001430
Item Description Part No Qty
Torque
Remarks
1 SHELFWM--NP1SERIES.............................. -- 1 -- A,C
SHELFWM--WP1SERIES ............................. -- 1 -- B,C,NS
2 CORNERBUFFER--SHELFR/H ........................ K10001123 1 -- A, B
3 CORNERBUFFER--SHELFL/H......................... K10001124 1 -- A, B
4 SCREWM8x16HEXSKTCAPHD ...................... K3921515 4 -- A, B
5 WASHER24ODx8.4IDx2MMTHK ..................... K3921536 4 -- A, B
6 WASHERCRINKLEM8 ............................... K3920997 4 -- A, B
7 CABLE CLIP RELEASABLE NYLON ...................... 3920309 4 -- A, B
8 L--WRENCHBALLDRIVE6MMA/F....................... K3921444 1 -- A, B, NS
9 M AJ--198/199 INSTRUCTION FOR USE ................... K10003524 1 -- A, B, NS
REMARKS
A Used on MAJ--198 WM--NP1 SHELF KIT (Narrow) p/no K10001429
B Used on MAJ--199 WM--WP1 SHELF KIT (Wide) p/no K10001430
C Repair by replacing whole accessory
NS Not Shown
