Issue 20 : July 2012
WM--P1 SERIES WORKSTATIONS
8.25 MAJ- 1630 VIDEO/SCOPE CABLE BRACKET

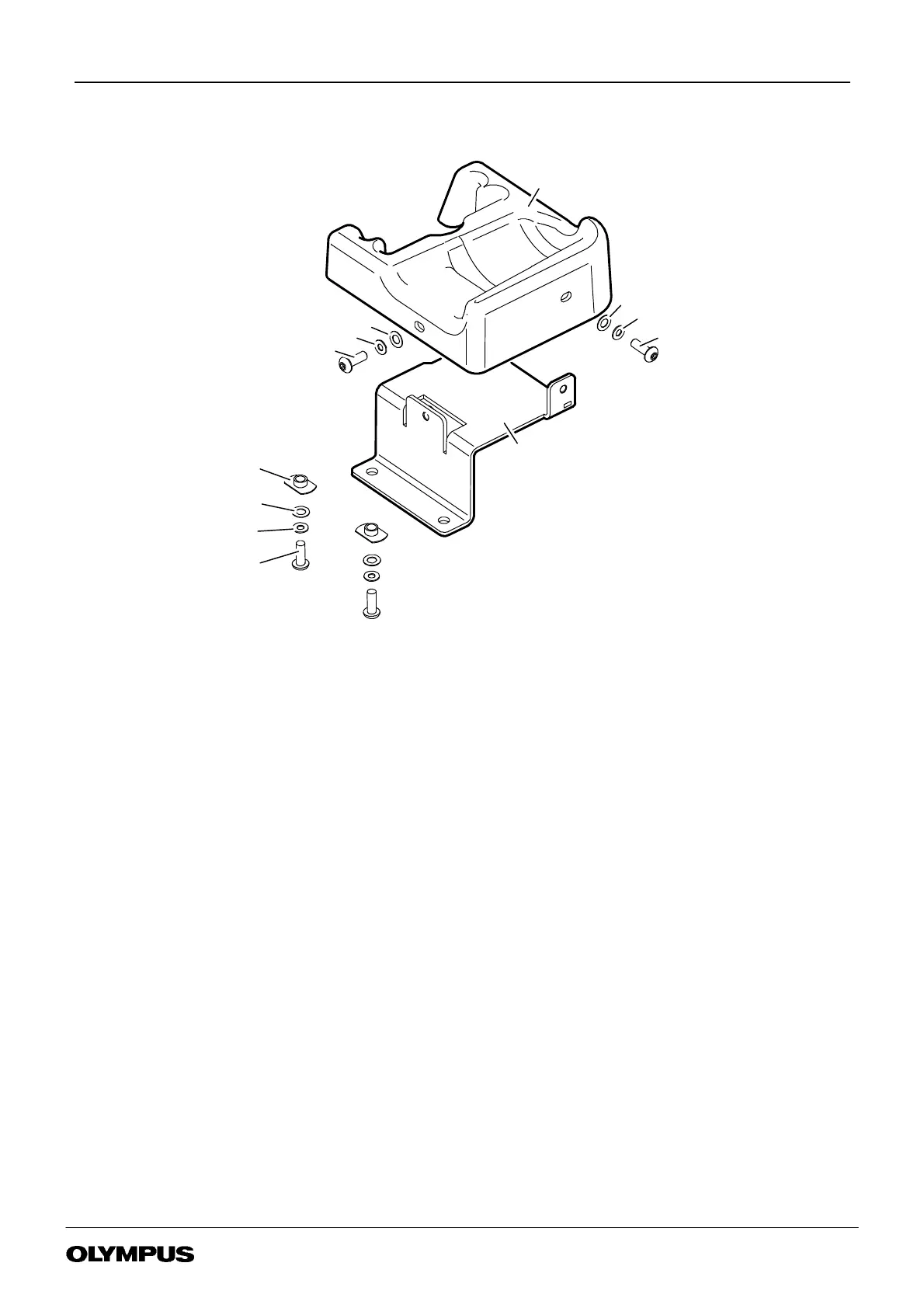

FIGURE 8-25
MAJ--1630 VIDEO/SCOPE CABLE
BRACKET
1
2
8
9
7
8
9
7
4
2
3
2
6
2
5
2
MAJ- 1630 VIDEO/SCOPE CABLE BRACKET p/no K10004449
Item Description Part No Qty
Torque
Remarks
1 BRACKETCABLE(VIDEO/SCOPE) ...................... K10004448 1 -- --
2 BRACKETVIDEO/SCOPE ............................. K10004113 1 -- --
3 WASHERM5 ....................................... 3071286 2 -- A
4 WASHERCRINKLEM5 ............................... 3920499 2 -- A
5 SCREWM5x12BUTTHDSKTST/ST .................... 3108601 2 -- A
6 JETNUTM5SINGLENUTPLATE ........................ K10004575 2 -- A
7 SCREWM4x12BUTTHDSKTST/ST .................... 3108571 2 2.0 Nm --
8 WASHERM4 ....................................... 3072461 2 -- --
9 WASHERCRINKLEM4 ............................... 3920332 2 -- --
10 ALLENKEY3MMA/F ................................. 3066142 1 -- NS
11 SPARE
12 SPARE
13 INSTRUCTIONS FOR MAJ--1630 ........................ K10004452 1 -- NS
Remarks
NS Not shown
A Used for fixing V ideo/scope cable bracket to the workstation.
