Olympus WM-NP1 User Manual

Page 66 of 76
Issue 20 : July 2012
WM--P1 SERIES WORKSTATIONS
8.20 MAJ- 1624 NURSES CONTROL PANEL ARM

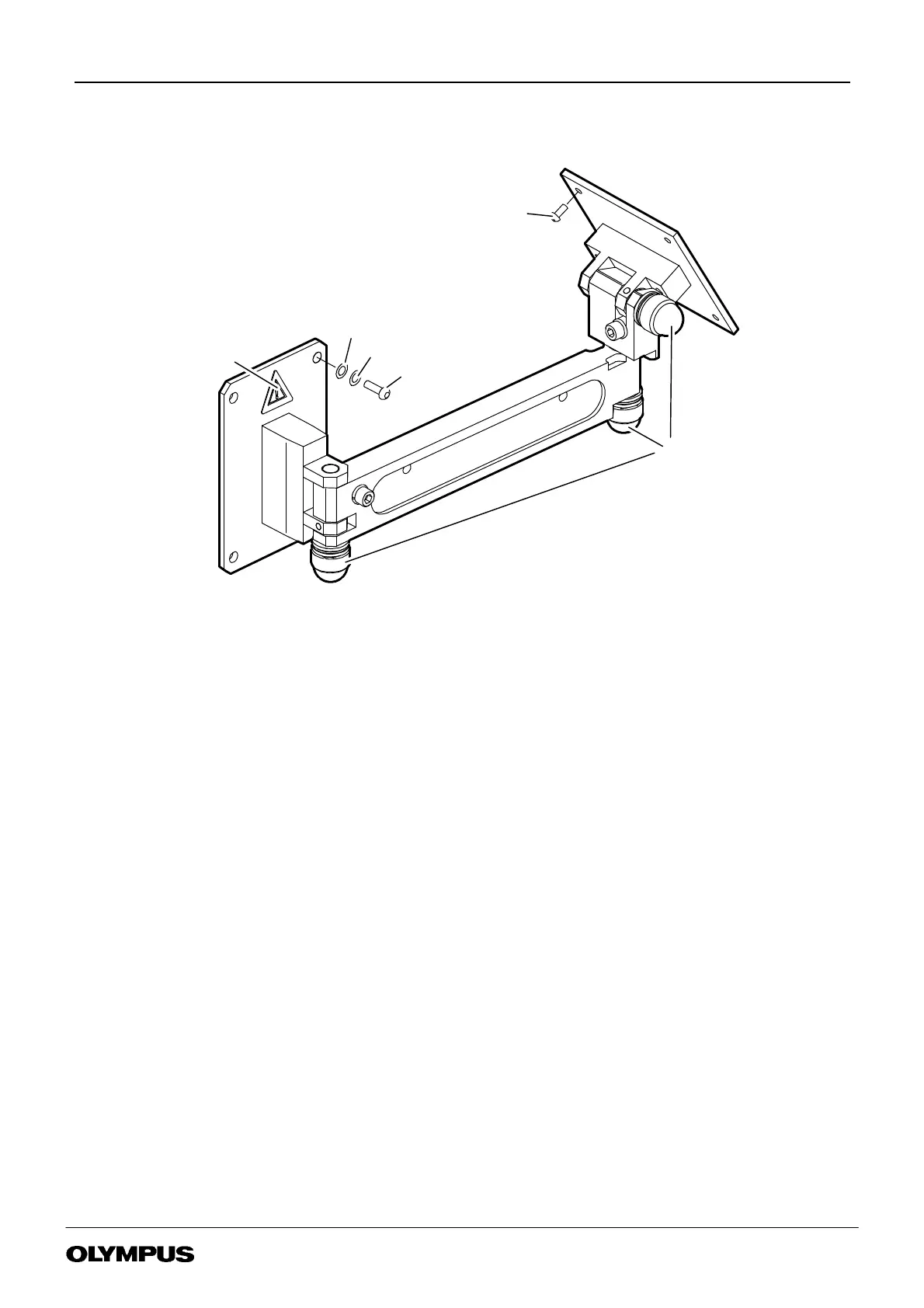

FIGURE 8-20
MAJ--1624 NURSES CONTROL
PANEL ARM
4
4
3
4
2
4
1
4
9
10
MAJ- 1624 NURSES CONTROL PANEL ARM - pt/no K10003563
Item Description Part No Qty
Torque
Remarks
1 SCREWM4x10PHILLIPSFLANGEPANHD ................. K3921655 4 -- --
2 SCREWM6x16SKTBUTTHD ........................... 3109704 4 -- --
3 WASHERM6SINGLECOIL .............................. 3072771 4 -- --
4 WASHERM6 ......................................... 3117138 4 -- --
5 ALLENKEY4mmA/F ................................... 3066011 1 -- NS
6 CABLETIE........................................... K3921530 3 -- NS
7 SPRINGNUTM6 ...................................... K7503840 4 -- --
8 INSTRUCTIONS (ENG/JAP) ............................. K10004227 1 -- NS
9 PROTECTIONCAPM10................................. K3921359 3 -- --
10 LABEL -- WRNING TRIANGLE 12mm HIGH .................. K10003463 2 -- --
11 SPANNER7mmA/Fx80mm............................. K10007289 1 -- NS
Remarks
NS Not shown
