Page 68 of 76
Issue 20 : July 2012
WM--P1 SERIES WORKSTATIONS

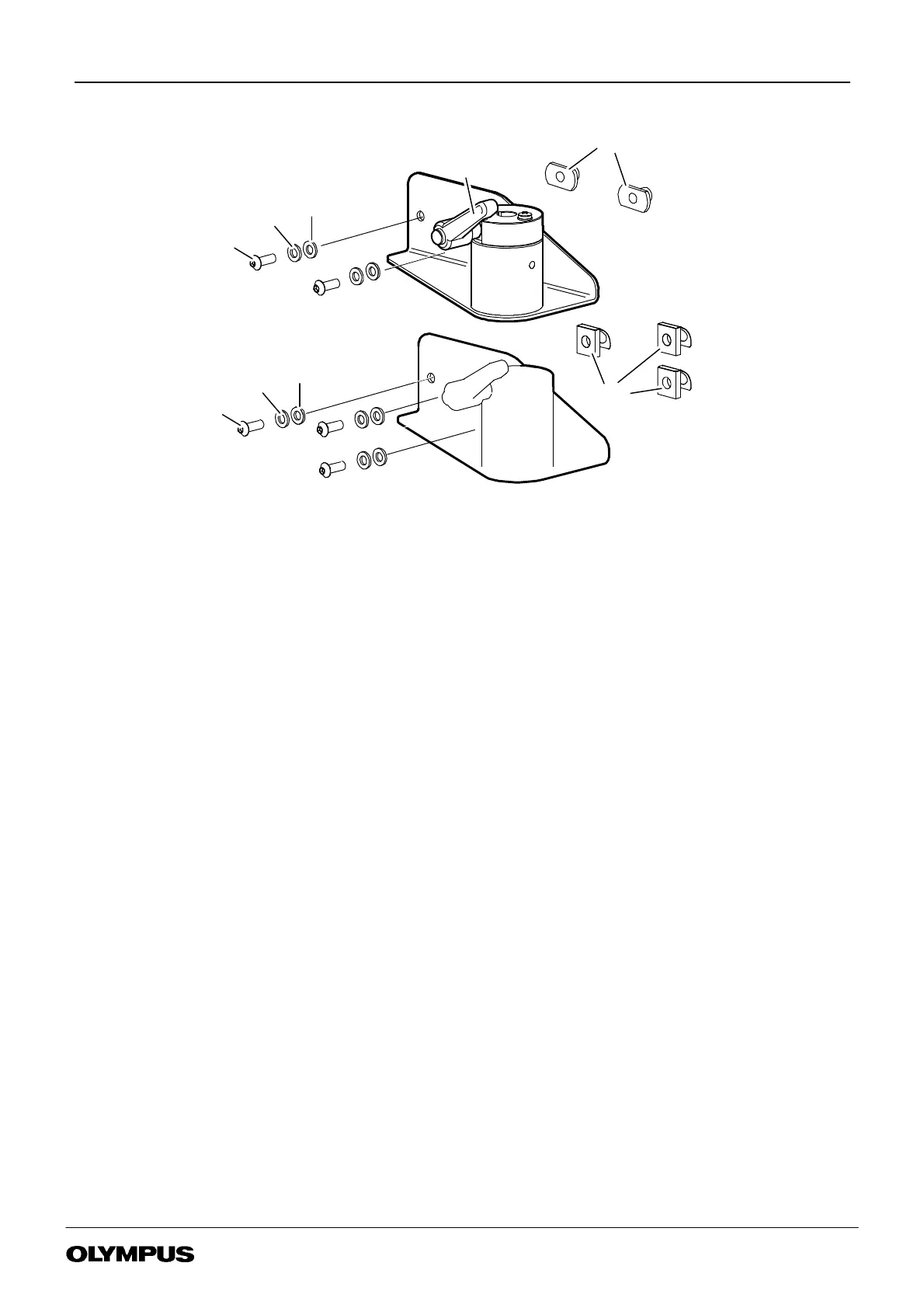

8.22 MAJ- 1626 EUS ARM MOUNT
FIGURE 8-22
18
2
13
3
17
2
7
2
16
2
9
17
3
7
3
6
3
Fixing to top tray
Fixing to frame
MAJ- 1626 EUS ARM MOUNT KIT p/no K10004158
Item Description Part No Qty
Torque
Remarks
1to5 SPARE
6 SCREWM6x12HEXSKTBUTTHD ..................... 3920326 3 -- A,B
7 WASHERCRINKLEM6 ............................... 3072622 5 -- A
8SPARE
9 HANDLE LEVER TYPE BLACK BUTTON ................... K3920719 1 -- --
10 ALLENKEY4mmA/FSHORT........................... 3066011 1 -- NS
11 INSTRUCTIONS FOR USE MAJ--1026 ..................... K10004240 1 -- NS
12 SPARE
13 SPRINGNUTM6 .................................... K7503840 3 -- A, B
14 SPARE
16 SCREWM6x25HEXSKTBUTTHD ..................... K10004105 2 -- A, C, D
17 WASHERM6 ....................................... 3117138 3 -- A
18 JETNUTM6 ........................................ 3920573 2 -- A, C, D
19 ADHESIVELOCTITE638 .............................. 3001067 A/R -- --
Remarks
A These items are used to secure the Arm Mount to the workstation.
B Used for fixing Arm Mount to Frame of WM--260 or WM--P1
C Used for fixing Arm Mount to Top Tray of WM--P1
D Used for fixing Arm Mount to Top T ray of WM--260 or WM--P1
NS Not shown
