Issue 20 : July 2012
WM--P1 SERIES WORKSTATIONS

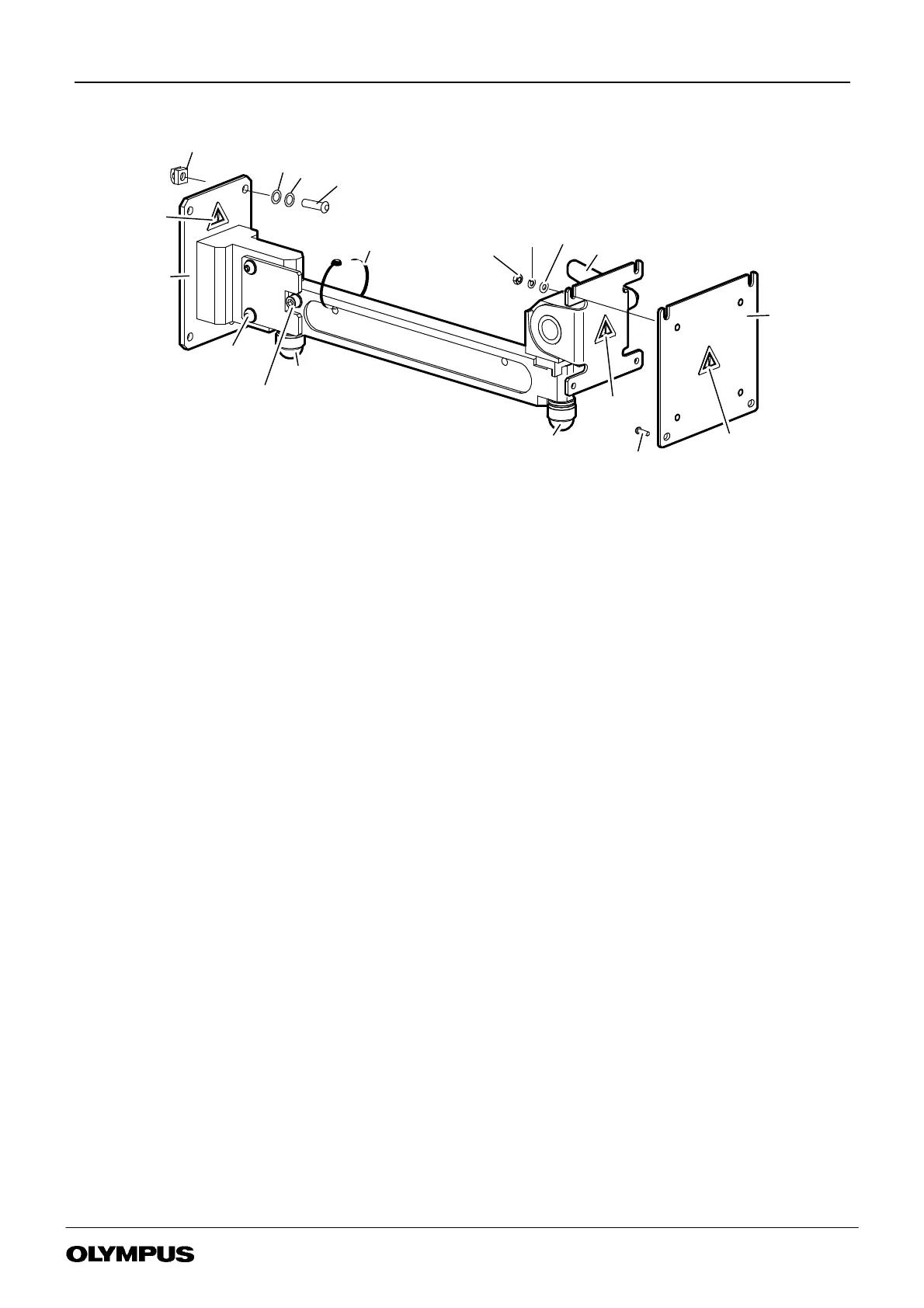

8.24 MAJ- 1628 NURSES CONTROL PANEL ARM
FIGURE 8-24
MAJ--1628 NURSES CONTROL PANEL
ARM
19
4
120
46Nm
31
A/R
13
3
18
4
43
41.5Nm
39
28
4
17
4
19
2
18
23Nm
12
42
4
21
2
18
23Nm
12
41
4
32
40
39
22
4
39
MAJ- 1628 NURSES CONTROL PANEL ARM p/no K10004881
Item Description Part No Qty
Torque
Remarks
1 MOUNTINGPLATE .................................. K10004944 1 -- --
2SPARE
3SPARE
6SPARE
7SPARE
8SPARE
9SPARE
10 SPARE
11 NUT M10 3038564 2 -- A, NS
12 M10PROTECTIONCAPBLACK ......................... K3921359 2 -- --
13 CABLE TIE REL 4.8W x 200L BLACK ..................... K3921530 3 -- --
14 WASHERM10 ...................................... 3072762 4 -- NS
15 WASHER THRUST ................................... K3921531 4 -- NS
16 WASHERBELLVILLE ................................. K3921532 2 -- NS
17 WASHERM6 ....................................... 3117138 4 -- --
18 WASHERSINGLECOILM6 ............................ 3072771 8 -- --
19 SCREWM6x16HEXSKTBUTTHD ..................... 3920327 6 3Nm --
20 SCREWM6x16HEXSKTCSKHD ...................... K3921648 4 6Nm --
21 SCREWM6x8HEXSKT .............................. K3921529 2 3Nm --
22 SCREWM4x10PHILLIPSFLANGEPANHD ............... K3921655 4 -- --
23 ALLENKEY4MMA/FSHORT........................... 3066011 1 -- NS
24 INSTRUCTIONS FOR USE MAJ--1628 UK ................. K10005050 1 -- NS
continued overleaf
