Olympus WM-NP1 User Manual

Page 58 of 76
Issue 20 : July 2012
WM--P1 SERIES WORKSTATIONS
8.15 MAJ- 1600 14” CRT BRACKET KIT
MAJ- 1601 14” CRT BRACKET KIT WIDE
MAJ- 1602 20” CRT BRACKET KIT WIDE

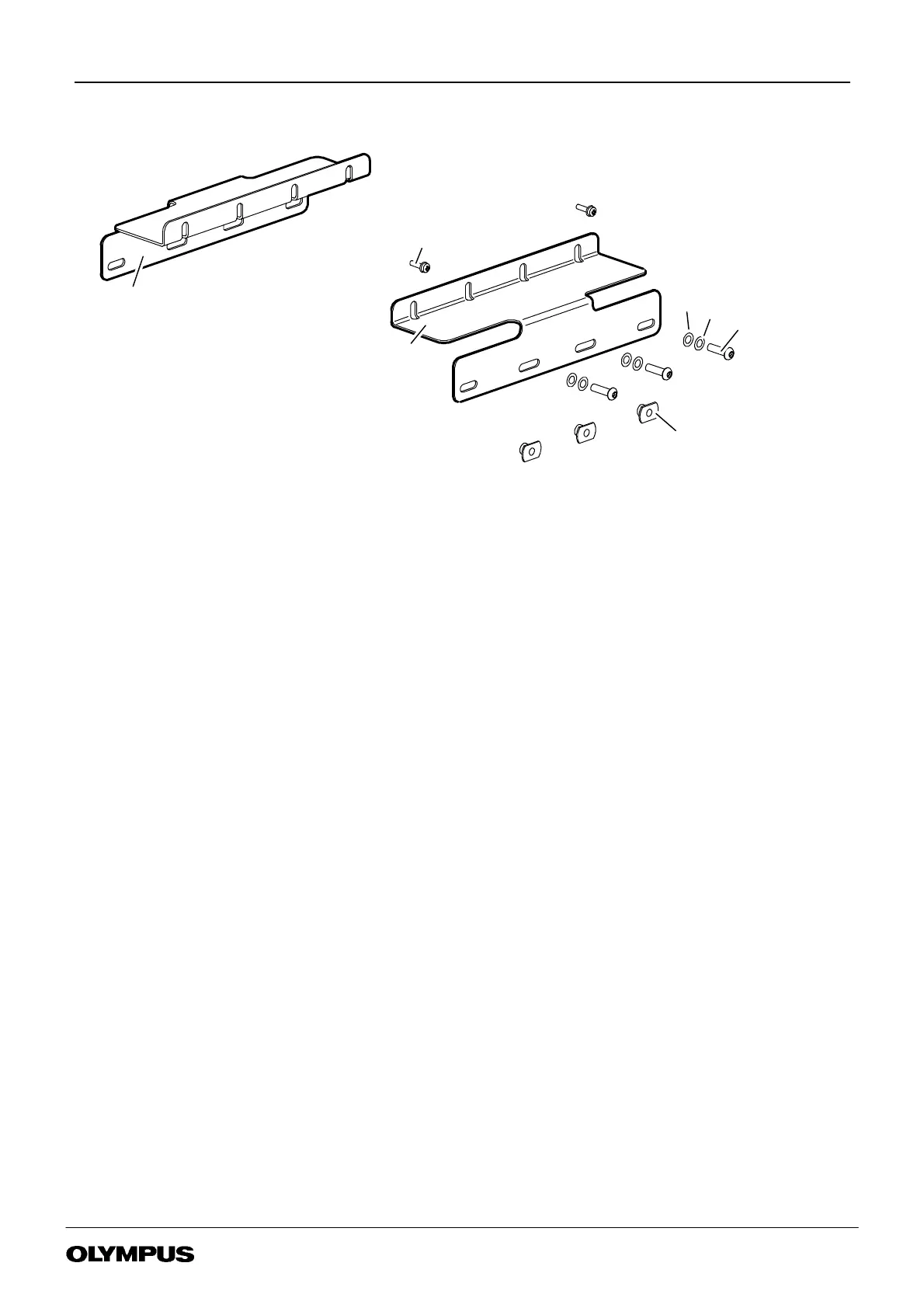

FIGURE 8-15
MAJ--1600 14” CRT BRACKET KIT
1
8
4
12
6
4
6
2
6
3
6
1
MAJ- 1600 14” CRT BRACKET KIT p/no K10003525
MAJ- 1601 14” CRT BRACKET KIT WIDE p/no K10003526
MAJ- 1602 20” CRT BRACKET KIT WIDE p/no K10003527
Item Description Part No Qty
Torque
Remarks
1 14INCHFIXEDMONITORBRKT ........................ K10003525 2 -- A, F
14INCHFIXEDMONITORBRKT--WIDE .................. K10003526 2 -- B, F, NS
20INCHFIXEDMONITORBRKT--WIDE .................. K10003527 2 -- C, F, NS
2 SCREWM6x25HEXSKTBUTTHD ..................... K10004105 6 -- --
3 JETNUTM6SINGLENUTPLATE ........................ 3920573 6 -- --
4 WASHERSINGLECOILM6 ............................ 3072771 6 -- --
5 ALLENKEY4MMA/FSHORT........................... 3066011 1 -- NS
6 INSTRUCTIONS MAJ 1600 1601 1602 ..................... K10003532 1 -- NS
7SPARE
8 SCREWM4x16POZIPANHD(INCLS.COIL+PLWASHER) .... K3921595 4 -- D
SCREWM5x12PANHDPOZI.......................... 3094006 4 -- E
9SPARE
10 SPARE
11 SPARE
12 WASHERM6 ....................................... 3117138 6 -- --
REMARKS
A Used on MAJ--1600 14” CRT BRACKET KIT p/no K10003525
B Used on MAJ--1601 14” CRT BRACKET KIT WIDE p/no K10003526
C Used on MAJ--1602 20” CRT BRACKET KIT WIDE p/no K10003527
D Used on 14” Monitor
E Used on 20“ Monitor
F Repair by replacing whole accessory
NS Not Shown
