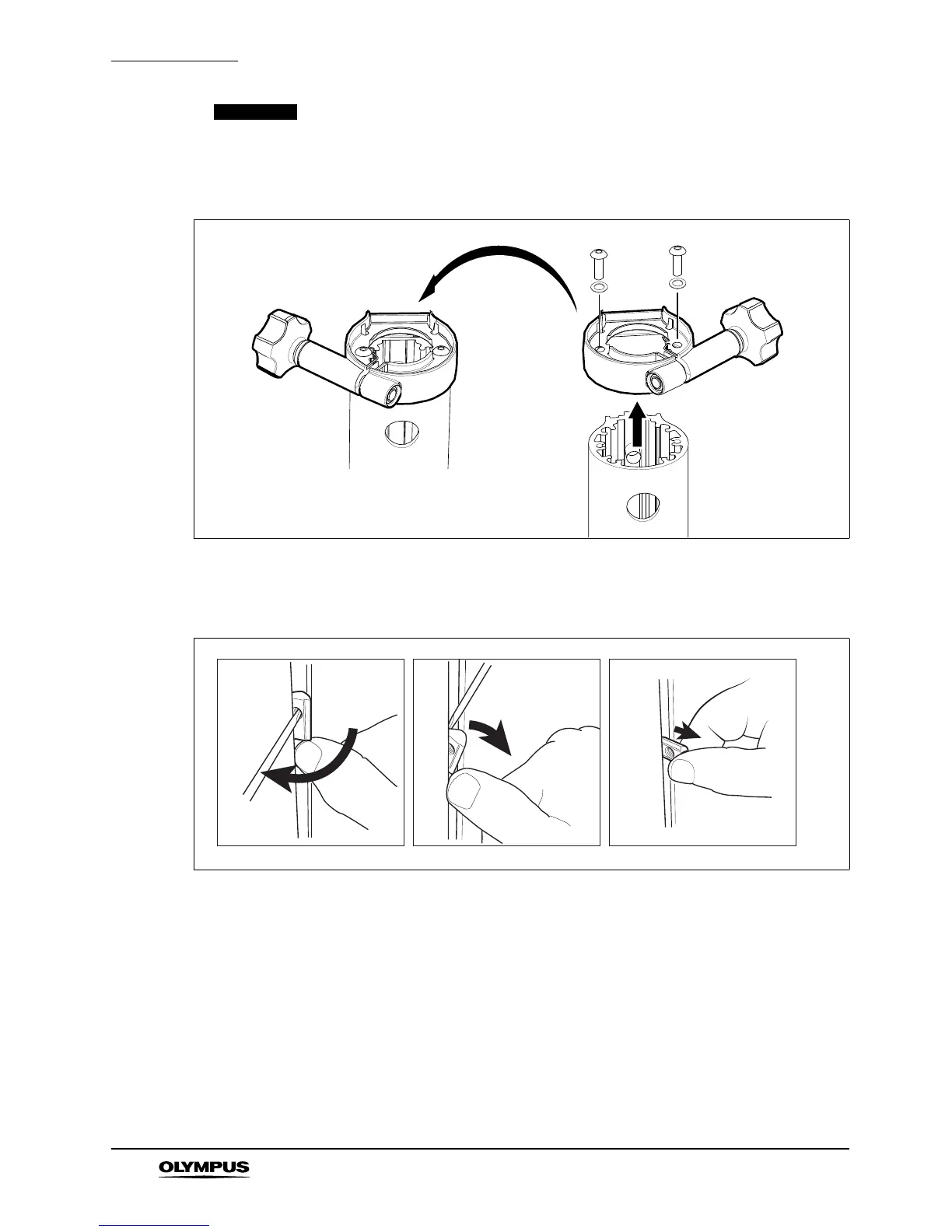

Always turn the handwheel upside down when mounting on the left
hand side of the workstation. If you do not turn the handwheel upside
down, it will protrude onto the back of the workstation.
8. Referring to Figure 4.24, use a small flat bladed screwdriver and remove the two M6 T-nuts
from the slot in the workstation hoop as shown.
9. Referring to Figure 4.25 and the steps below, fit the T-nuts, that were removed in step 3., in
the slots on the left hand side.
(i) Insert one corner of the T-nut into the slot on the side of the workstation.
(ii) Push the T-nut in so that its ball goes inside the slot.
(iii) Push the other corner of the T-nut into the slot using the supplied Allen key or similar.
(iv) Position one T-nut near the base and the other one approximately level with the top tray.
Figure 4.23
Figure 4.24
