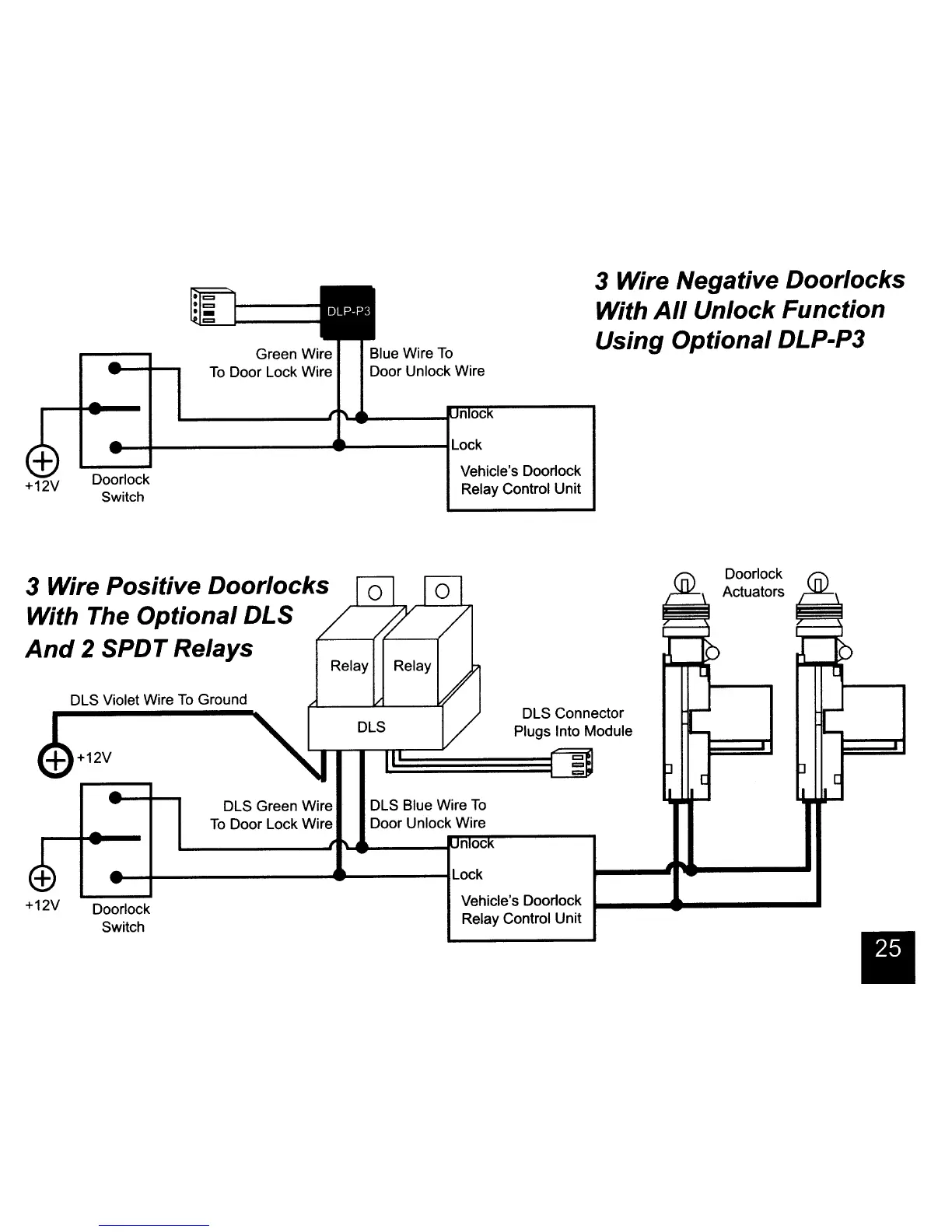

Omega REC-12 - Wiring Connections - 3 Wire Doorlocks Variants; 3 Wire Negative Doorlock Wiring (Optional DLP-P3); 3 Wire Positive Doorlock Wiring (Optional DLS)

Green Wire
To Door Lock Wire
Blue Wire
To
Door Unlock Wire
3 Wire Negative Doorlocks
With
All Unlock Function
Using Optional DLP-P3
""-l-- __ -fUn oc
Doorlock
Switch
+
+12V
__ --+---------..1 __ ------" Lock
Vehicle's Doorlock
Relay Control Unit
•
Doorlock
Actuators
DLS Connector
Plugs Into Module
DLS Green Wire
To Door Lock Wire
DLS Blue Wire
To
Door Unlock Wire
-------
.... """ 'l~ .....,n oc
__ --+----------1 __ ------" Lock
Vehicle's Doorlock
.... ---4----- ...
Relay Control Unit
DLS Violet Wire
To Ground
3 Wire Positive Doorlocks
With The Optional DLS
And 2 SPDT Relays
+12V Doorlock
Switch
