Omega REC-12 User Manual

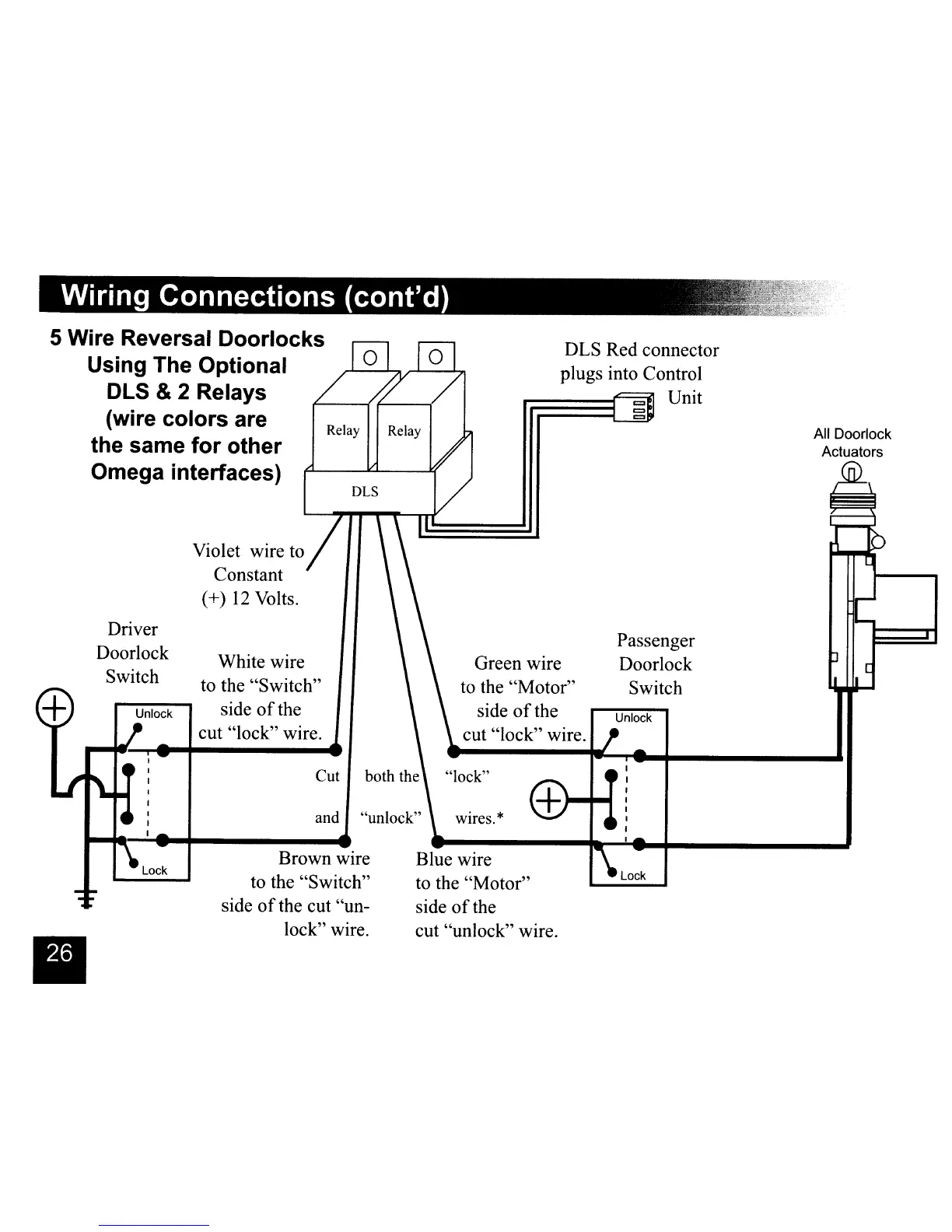

Wirin Connections (cont'd) -~<,~Ft,
All Doorlock
Actuators
Passenger
Doorlock
Switch
Unlock
DLS Red connector
plugs into Control
~===iJ~~ Unit
Green wire
to the "Motor"
side
of the
cut "lock" wire.
wires.*
"lock"
Blue wire
to the "Motor"
side
of the
cut "unlock" wire.
Brown wire
to the "Switch"
side
of the cut "un-
lock" wire.
and "unlock"
Cut
White wire
to the "Switch"
side
of the
cut "lock" wire.
Violet wire to
Constant
(+) 12 Volts.
Driver
Doorlock
Switch
5 Wire Reversal Doorlocks
Using The Optional
DLS & 2 Relays
(wire colors are
the same for other
Omega interfaces)
•

Omega REC-12 Specifications

General

Brand	Omega
Model	REC-12
Category	Remote Starter
Language	English
