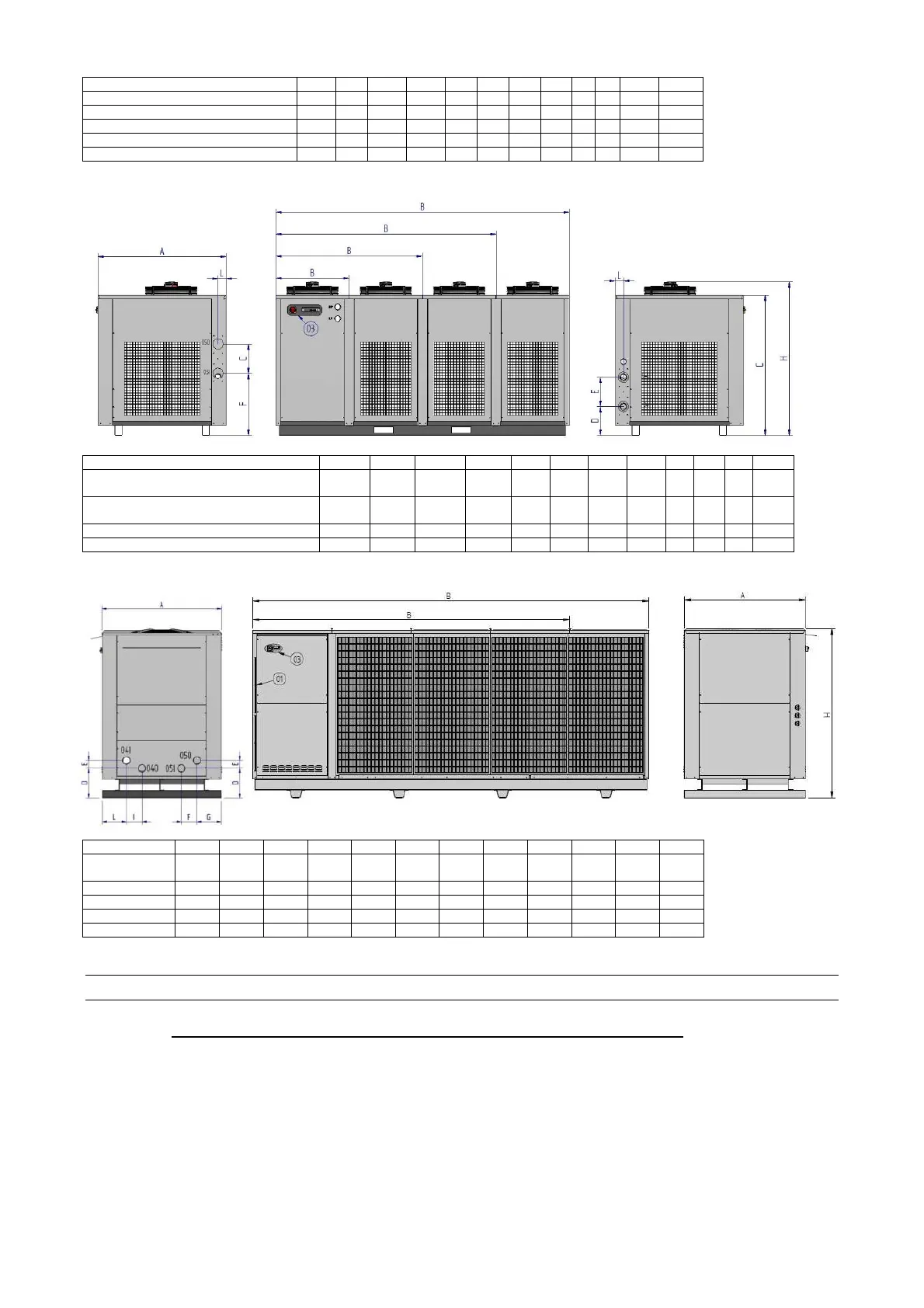

MODELS
A
B
H
C
D
E
F
G
I
L
M
(Ø)
CHW 97, 130
760
760
1335
1250
767
100
972
100
/
84
1445
¾”
CHO 97, 130
760
760
1335
1250
767
100
972
100
/
84
1445
1”1/2
CHG 75
760
760
1335
1250
767
100
972
100
/
84
1445
¾”
CHW 149 / CHG 100
760
760
1385
1300
767
100
972
10
0
/
84
1510
¾”
CHO 149
760
760
1385
1300
767
100
972
100
/
84
1510
1”1/2
MODELS: CHW 162 to CHW 1202; CHG 140 to CHG 365
MODELS
A
B
H
C
D
E
F
G
I
L
M
(Ø)
CHW 162, 192, 242, 292, 372
CHG 140, 180
1325 760 1570 1440 300 300 635 300 / 84 / 1”
CHW 432 t
o 752
CHG 225, 280, 365
1325 1520 1570 1440 300 300 635 300 / 84 / 1½”
CHW 1002
1325
2280
1570
1440
300
300
635
300
/
84
/
1½”
CHW 1202
1325
3040
1570
1440
300
300
635
300
/
84
/
2”
MODELS: CHW 1452 to CHW 3652
MODELS
A
B
H
C
D
E
F
G
I
L
M
(Ø)
CHW
1452,
1802
1525 3990 2170 2060 381
100
/
/
200
310
/
3”
CHW
2052
1525
3990
217
0
2060
381
100
/
/
200
310
/
3”
CHW 2552
1525
3990
2170
2060
381
100
/
/
200
310
/
3”
CHW 3152
1525
4990
2170
2060
381
100
/
/
200
310
/
3”
CHW
3652
1525
4
990
217
0
2060
381
100
/
/
200
310
/
3”
4. TRANSPORT/ PACKAGING/ STORAGE
4.1 REMOVING THE PACKAGING AND HANDLING THE CHILLER
Each chiller is supplied in a reinforced carton on a wooden pallet. The chiller must be kept in an upright
position at all times. NOTE: Tilting the chiller may cause serious damage!
Procedure:
* Remove the strapping from the carton. Always wear safety gloves when using scissors
or other tools to cut the straps.
* Remove the carton.
* Raise the chiller using suitable lifting gear.
NOTE: If the chiller is fitted with eyebolts, these must be used for lifting it in accordance with the ap-
plicable safety standards.
If the chiller is not fitted with eyebolts, the lifting gear must be appropriate for the weight of the
chiller, as indicated on the identification plate and in the Annex.
