CP SB1 User Manual
62

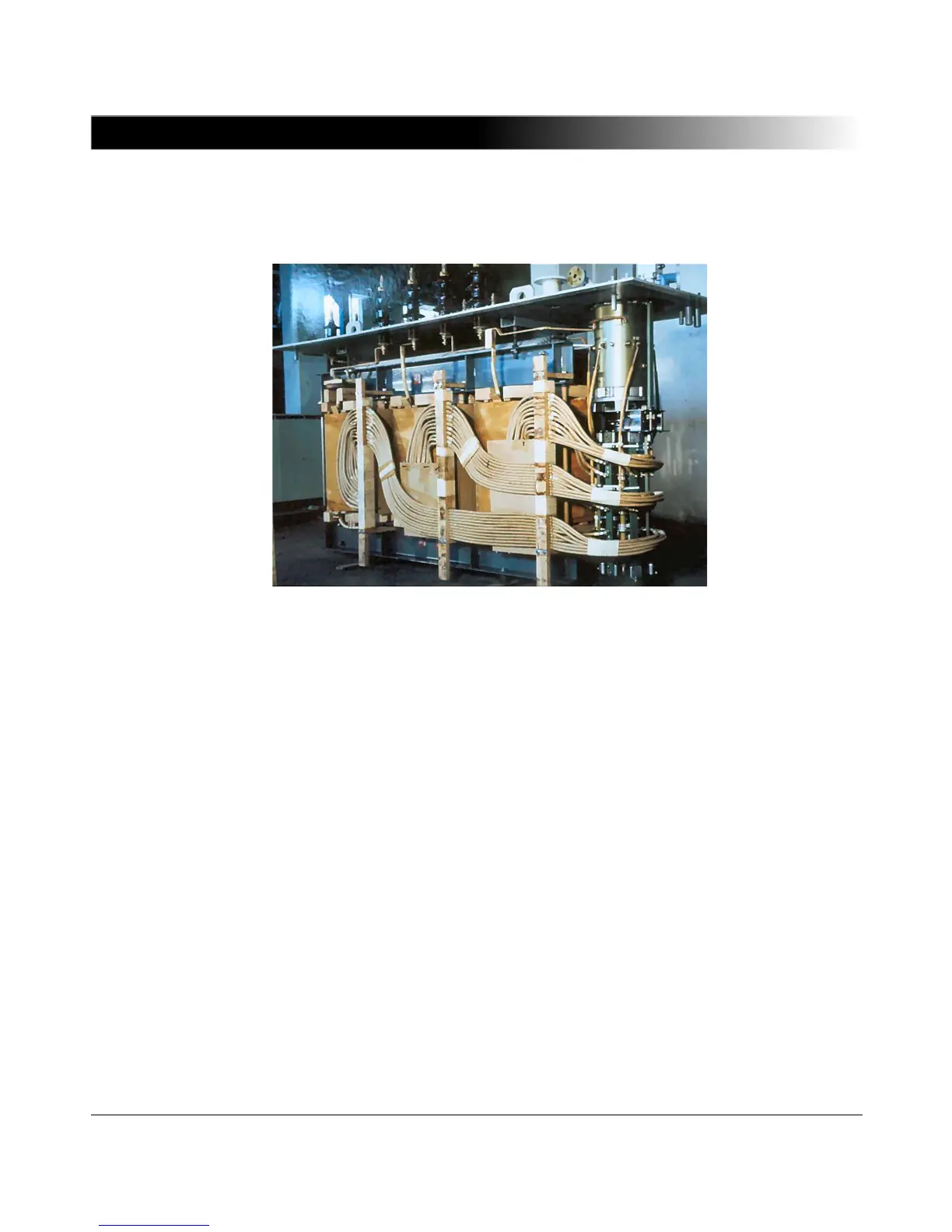

In Figure 5-6, a transformer with an attached tap changer is shown. In both
pictures the separate oil tank of the diverter switch is clearly visible.
Figure 5-6 Transformer with tap changer
