Appendix
current between the taps which could otherwise become very high due to the
interruption-free switching of the contacts. The switching process between two
taps takes approximately 40 - 80 ms.

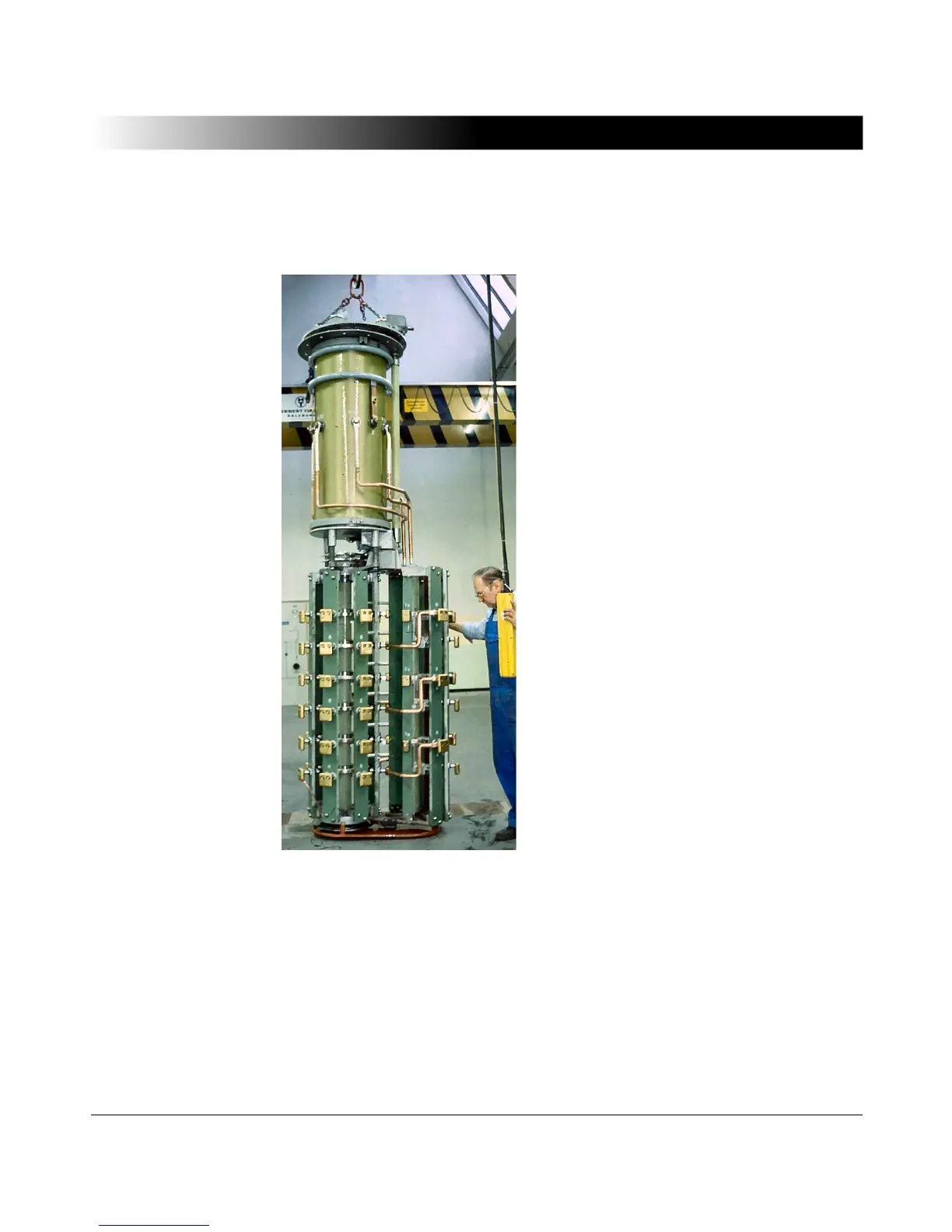

Figure 5-5 Tap changer
Figure 5-5 shows a tap changer with the tap selector (lower part) and the
diverter switch (upper part).
