EN
34
Electronic version
Connection of auxiliary equipment to the interfaces RS-232 and
RS-485

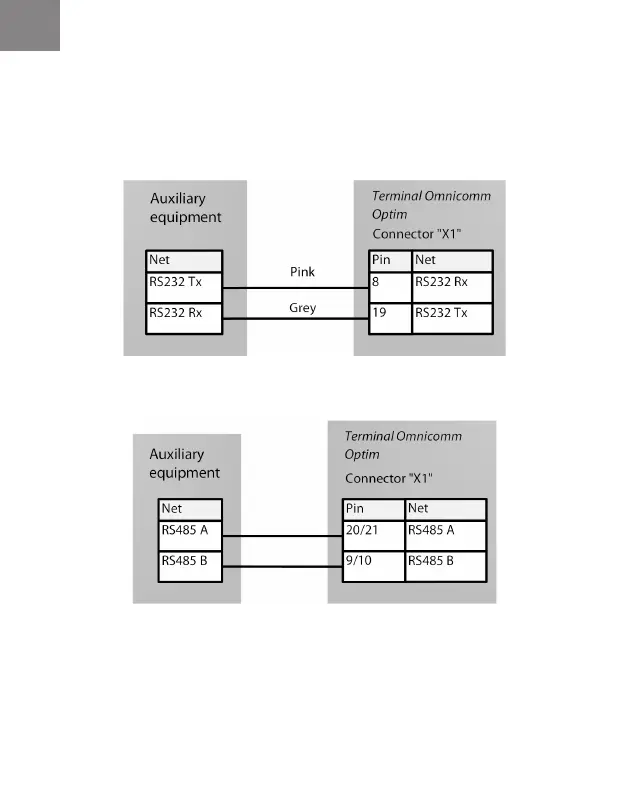

Connection of auxiliary equipment should be performed in
accordance with schemes 9, 10
Figure 9.
Figure 10.
