Connecting the auxiliary equipment to the universal inputs

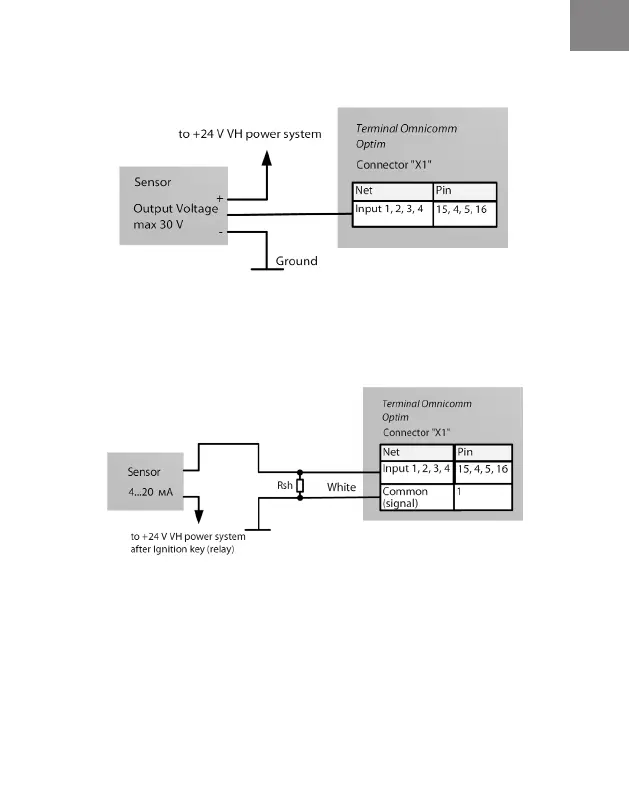

Figure 11. Scheme of connection of the analogue sensor which has a unied voltage
output (for the sensors whose power supply range includes 24 V voltage) to the
universal input of the OmnicommOptim Terminal
Figure 12. Connection scheme for the analogue sensor which has a unied current
output.
Shunt R is from 500 to 1000 Ohm – 1 W – 0.5%.
