When connecting to VH equipped with a ground switch, it is
required to use Galvanic isolation unit BR-15. Potential type
of discrete sensors: contact or no-contact discrete (capacitive,
induction, optical or magnetic type) with the output of the “open
collector” N-P-N type.

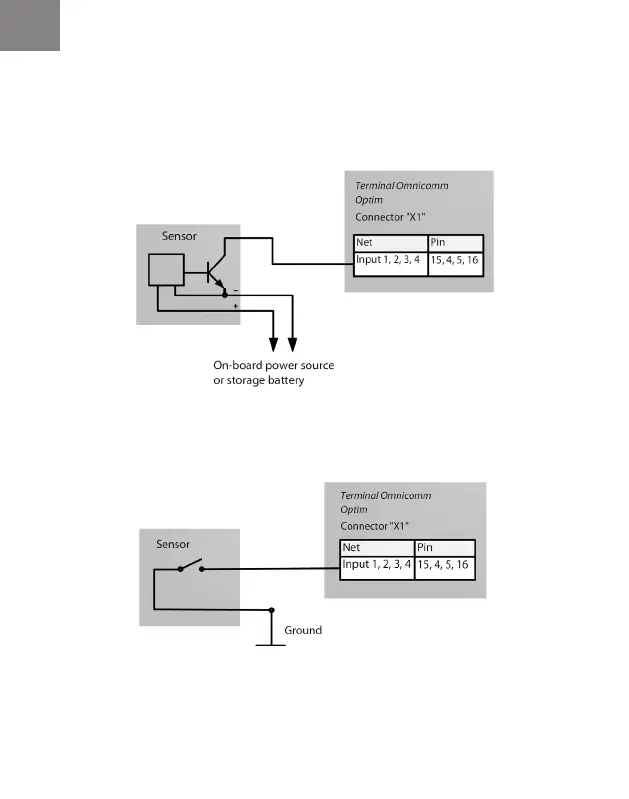

Figure 13. Scheme of connection of the sensor with the output of the “open collector”
N-P-N type
Figure 14. Scheme of connection of a contact sensor
