OMPHOBBY M4 - Landing Gear and Flight Controller Mount Assembly

Swashplate Guidance Plate (×1)
M4-205

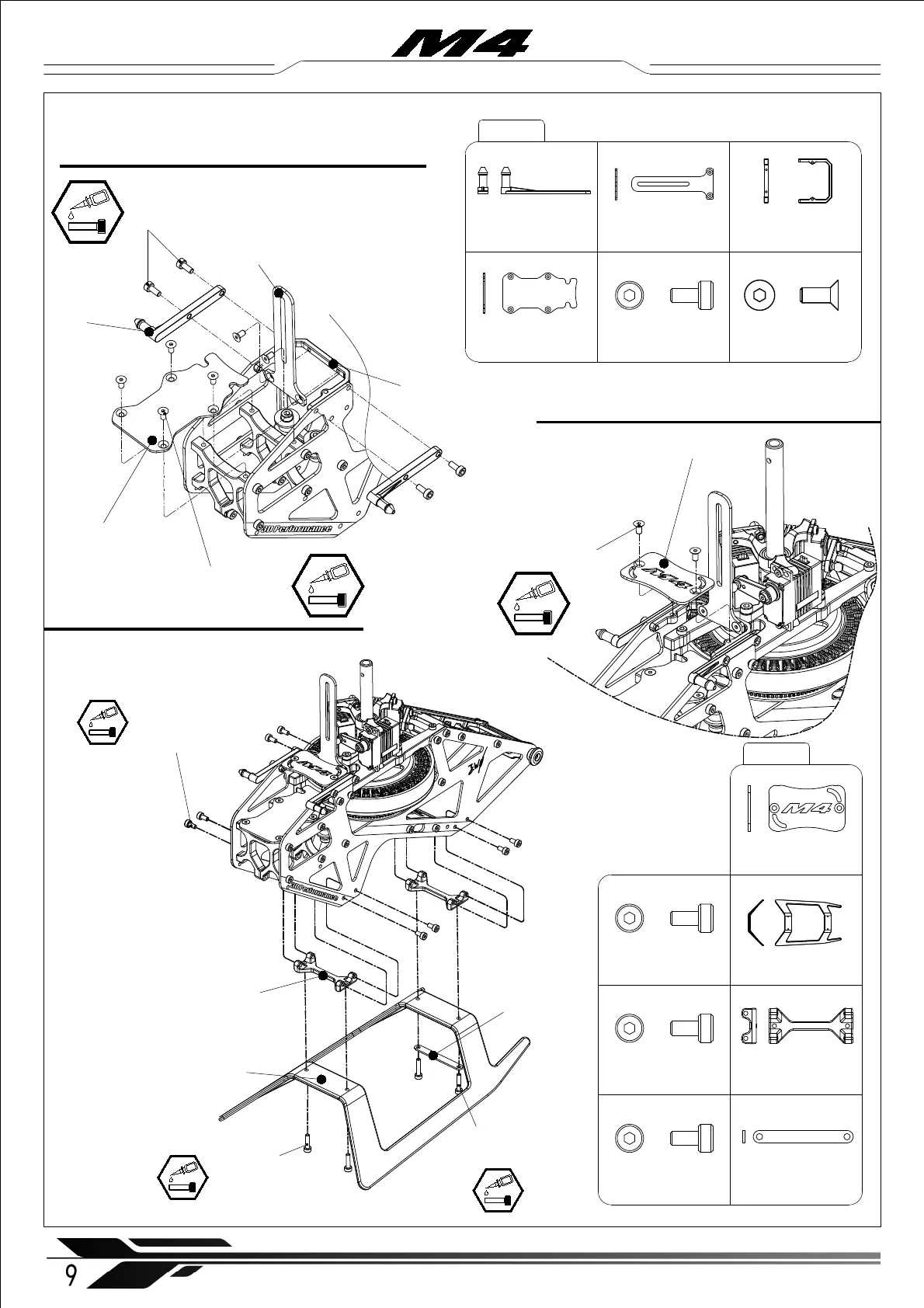

2-5 Landing gear and flight controller
mount assembly
Landing gear ( × 1)
Receiver Mounting Plate (×1)
M4-205
Landing Skid
Mount set ( × 2)
Canopy support ( × 1)
Socket cap screw
M2.5x10mm ( × 2)
Socket cap screw
M2.5x5mm ( × 8)
Socket cap screw
M2.5x12mm ( × 2)
Flight Control Mounting Plate (×1)
countersunk head
hexagon socket screw
M2.5x5mm ( × 8)
9
WWW.OMPHOBBY.COM
Swashplate Guidance Mount ( × 1)
Swashplate Guidance
Mount ( × 1)
Flight Control Mounting
Plate (×1)
Swashplate Guidance
Plate (×1)
Countersunk head
hexagon socket screw
M2.5x5mm ( × 6)
Canopy Mounting Post (× 2 )
Socket cap screw
M2.5x8mm ( × 4)
Canopy Mounting
Post (× 2)
Socket cap screw
M2.5x8mm ( × 4)
Installation steps 安装步骤
Socket cap screw
M2.5x10mm ( × 2)
Socket cap screw
M2.5x12mm ( × 2)
Landing Skid
Mount set ( × 2)
Canopy support
brace ( × 1)
Landing gear ( × 1)
※ Attach the landing skid
mount to the side frame
before installing the landing
gear.
Countersunk head
hexagon socket screw
M2.5x5mm ( × 2)
Receiver Mounting
Plate (×1)
Socket cap screw
M2.5x5mm ( × 8)
