Tail Slider Ring Set (× 1)

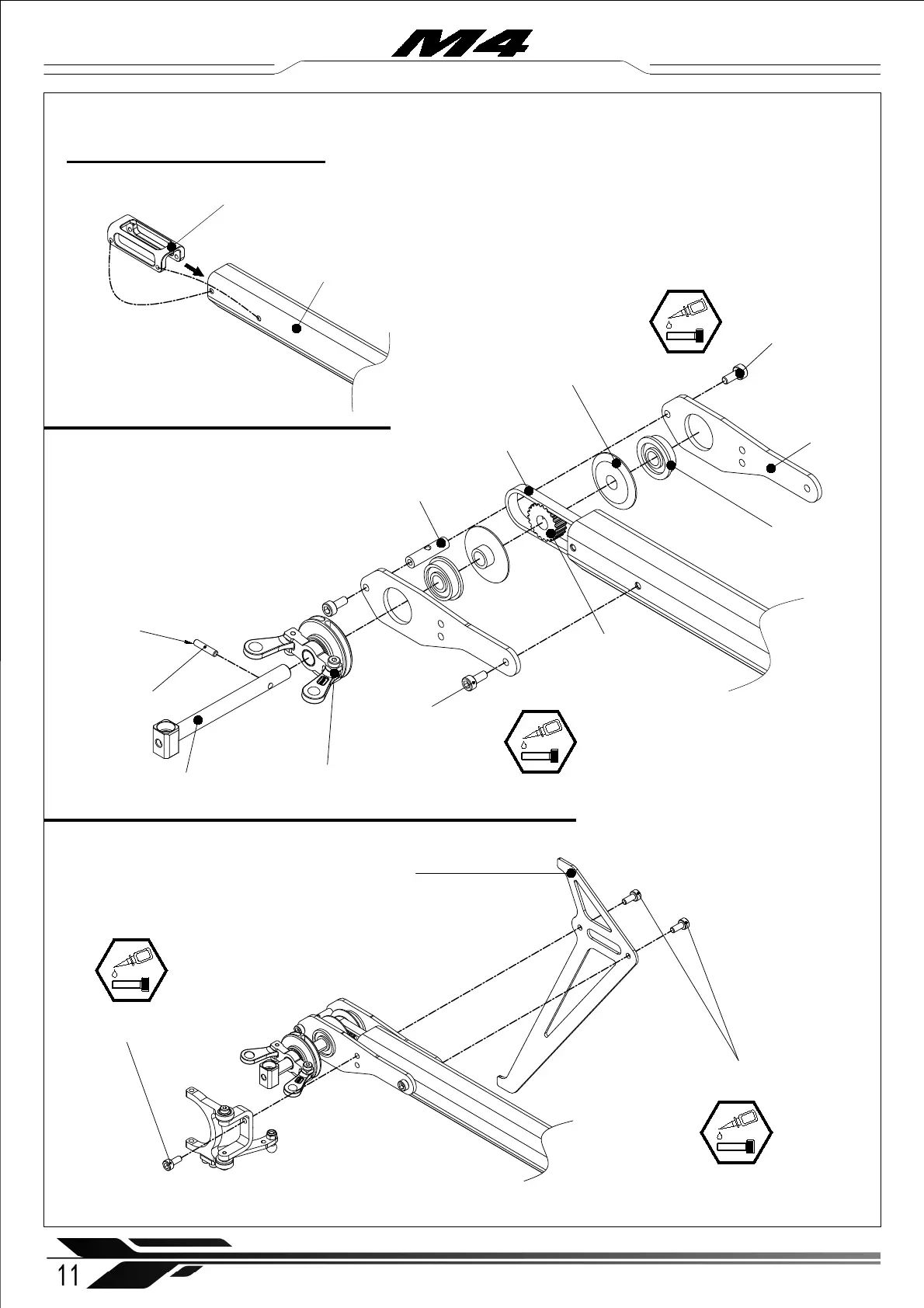

3-1 Tail rotor assembly
Socket cap screw
M2.5x8mm (× 1)
Tail Fin (× 1)
11
WWW.OMPHOBBY.COM
Installation steps 安装步骤
Socket cap screw
M2.5x8mm ( × 2)
Tail boom (× 1)
Tail Housing Mounting Brace (× 1)
Socket cap screw
M2.5x6mm ( × 2)
Tail Case Side
Plate ( × 2)
Tail Pulley Pin
∅ 2x9.5mm ( × 1)
Tail Case
Crossmember ( × 1)
Tail Rotor Shaft ( × 1)
Tail Pulley Guidance
Flange ( × 2)
Flanged Bearing
∅ 5x ∅ 13x4mm (× 2)
Tail Belt ( × 1)
Tail Pulley ( × 1)
※ Then install the tail case, tail shaft, belt
and pulleys onto the boom. Work from right
to left for easiest assembly.
※ First insert the mounting brace
into the tail boom and align it with the
four screw holes.
※ Insert the tail pulley pin
after the tail rotor shaft
passes through the tail pulley.
Socket cap screw
M2.5x8mm ( × 1)
To Next Page
