Main rotor hub linkage ( × 2)
4.5mm linkage Ball Joint Set (× 4)
※ First fix the XT60 plug holder (optional) to the
battery plate with countersunk head screws, then
insert the XT60 plug through the XT60 plug holder
support and secure it in place with set screws.
Lastly, tie the battery to the tray with battery straps.
M4-402
XT60 plug holder set ( × 1)
Battery panel set ( × 1)

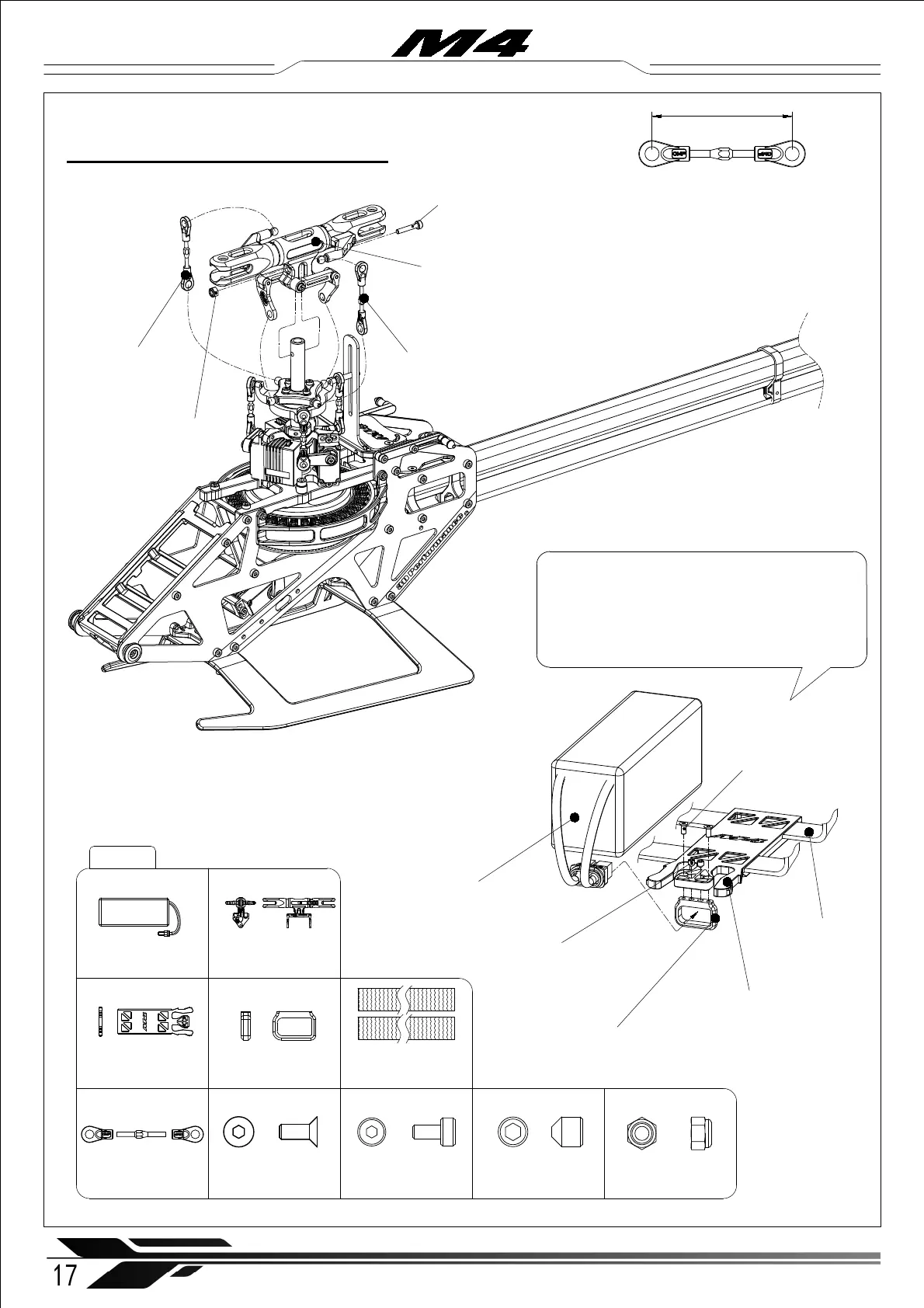

4-2 Main rotor hub assembly
约38mm
※ Make two linkages of the same length, note that
turnbuckles feature one right hand and one left hand
thread each. The tapered side of the turnbuckle faces
down. The ball joint’s flat spot with OMP logo faces
outward when connecting the linkages with the ball
screws. The turnbuckles can be adjusted in length
without removing them from the helicopter.
Setscrew
M3x3mm (× 2)
Countersunk head hexagon
socket screw
M2x6mm ( × 2)
6S Battery (× 1)
XT60 plug holder set (× 1)
※ Can optionally be added as per pilot preference.
Countersunk head
hexagon socket screw
M2x6mm ( × 2)
Setscrew
M3x3mm (× 2)
Battery panel set ( × 1)
※ The main rotor hub thrust bearing and rubber dampers are subject to high
flight forces and thus should be periodically inspected and lubricated, and, if
worn or damaged, replaced. When flying hard at high rotor speeds, the
inspection interval should be reduced. Replace on condition to ensure flight
safety.
1 7
WWW.OMPHOBBY.COM
Battery strap ( × 2)
Battery strap ( × 2)
Main rotor hub set ( × 1)
Main rotor hub linkage ( × 2)
4.5mm linkage Ball
Joint Set (× 4)
Socket cap screw
M2.5x14mm ( × 1)
M2.5 Nylon locknut ( × 1)
6S Battery (× 1)
Main rotor hub set ( × 1)
Socket cap screw
M2.5x14mm ( × 1)
M2.5 Nylon locknut ( × 1)
Installation steps 安装步骤
※
