OMPHOBBY M4 - Motor and Servo Assembly

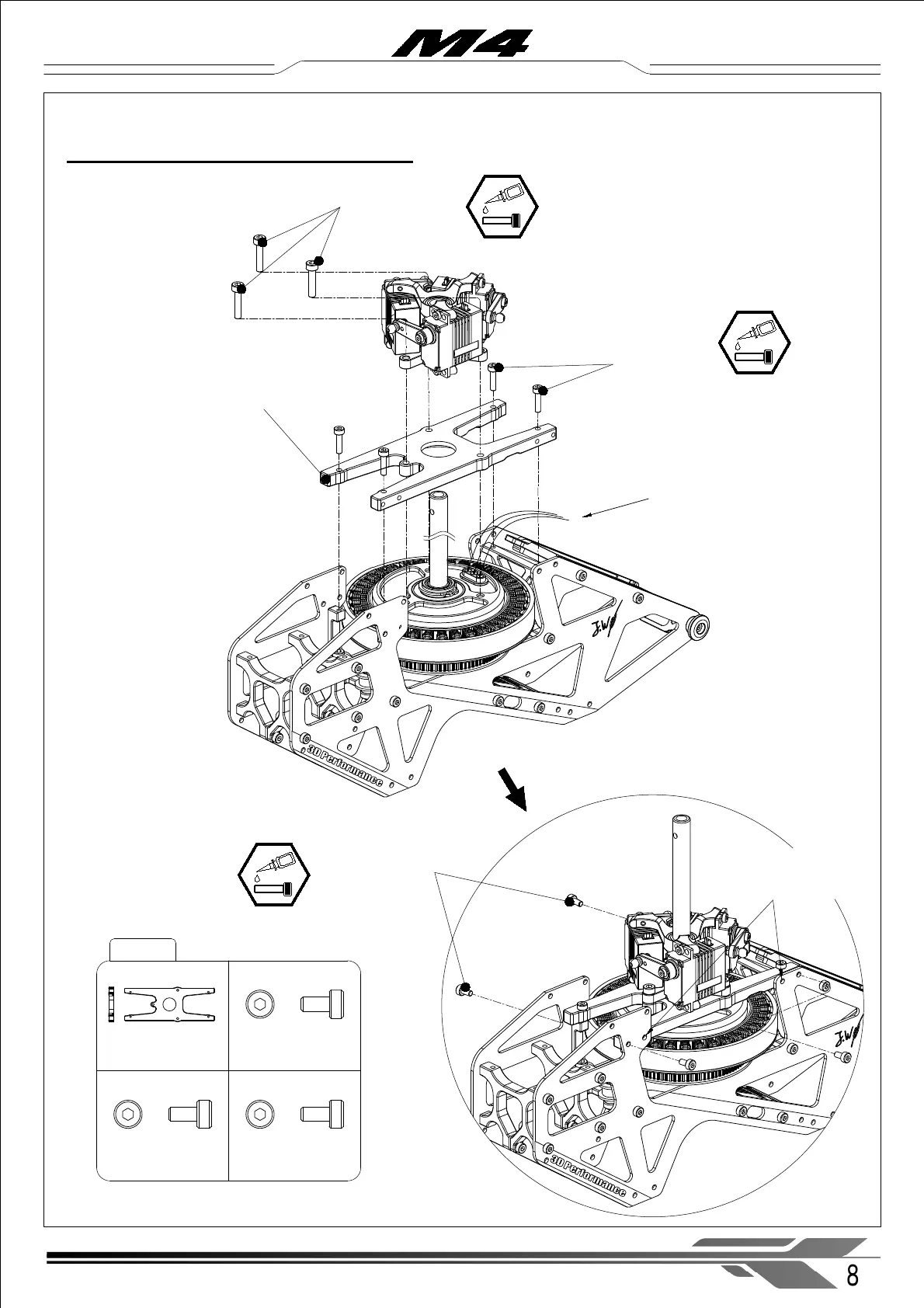

2-4 Motor and servo assembly
Main Plate (×1)
M4-204
Socket cap screw
M3x14mm ( × 3)
Socket cap screw
M2.5x10mm ( × 4)
Socket cap screw
M2.5x5mm ( × 4)
8
WWW.OMPHOBBY.COM
The se four screw holes are
reserved for installation of the the
motor roll bars in a later step .
Socket cap screw
M2.5x5mm ( × 4)
Socket cap screw
M2.5x10mm ( × 4)
Socket cap screw
M3x14mm ( × 3)
Main Plate (×1)
Installation steps 安装步骤
※ Motor wires should exit
towards the front
