OMPHOBBY M4 - Tail Blade Set Installation

Tail Control Rod Guide ( × 1)
Tail Control Rod Guide ( × 1)
Tail Fin (× 1)Tail Case Side Plate ( × 2)
Socket cap screw
M2.5x6mm ( × 2)
M4-301
Tail Pulley ( × 1) Tail Pulley Guidance Flange ( × 2) Tail Rotor Shaft ∅ 5x58mm ( × 1)
Tail Pulley Pin ∅ 2x9.5 ( × 1) Tail Case Crossmember ( × 1)
Flanged Bearing
∅ 5x ∅ 13x4mm (× 2)
Tail Belt ( × 1)
Bearing
∅ 3x ∅ 6x2.5mm (× 4)
Ball Joint Screw - L3 (× 2)
Tail Rotor Blade Grip ( × 2)
Thrust Bearing
∅ 3x ∅ 6x2.8 (× 2)
Shim
∅ 3x ∅ 4.5x0.2mm ( × 2 )

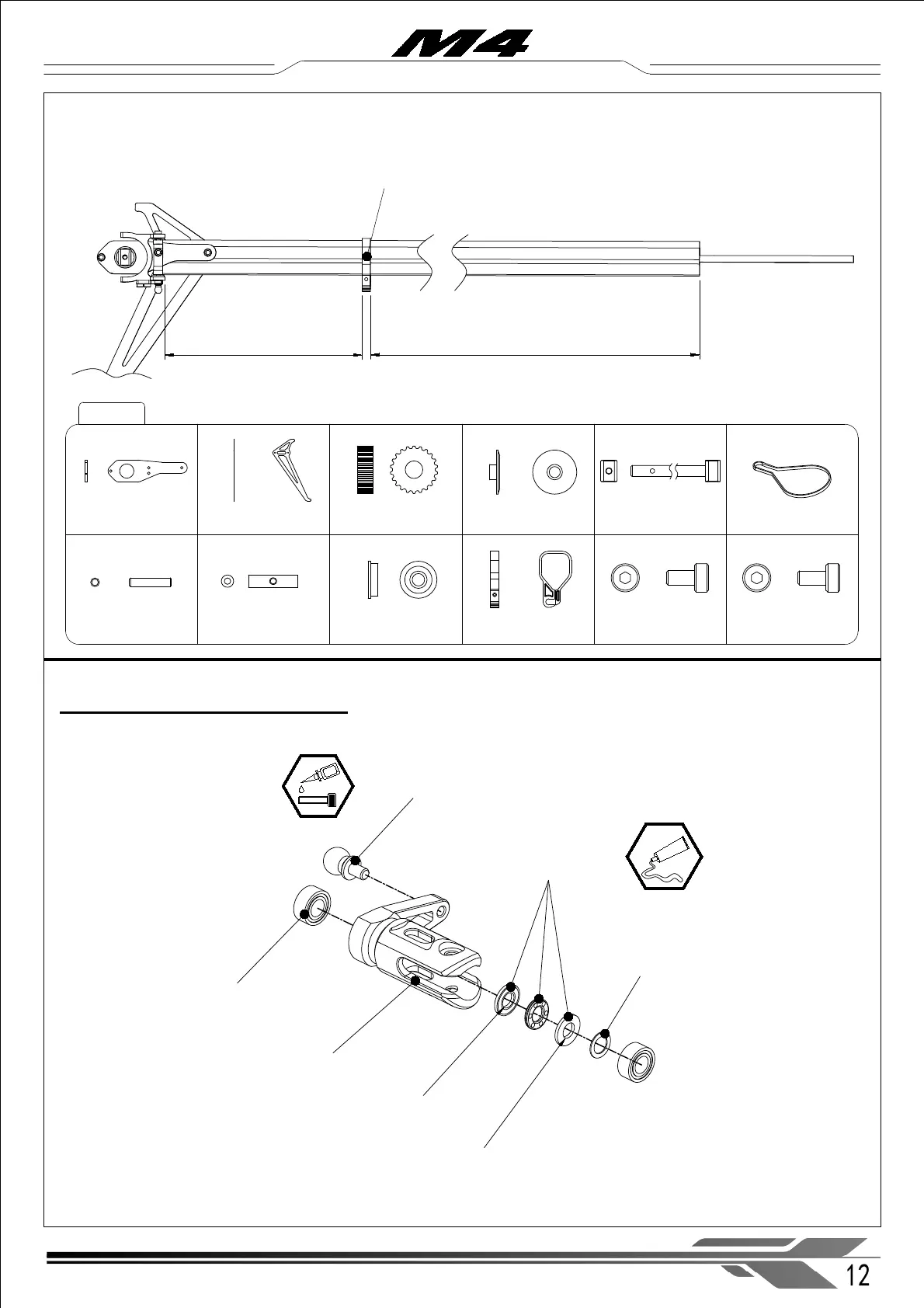

3-2 Tail blade Set installation
Inner Dia. : Large
Inner Dia. : Small
Grease
12
WWW.OMPHOBBY.COM
Installation steps 安装步骤
Socket cap screw
M2.5x8mm (× 4)
about 270mm
about 180mm
