B7A
B7A
99

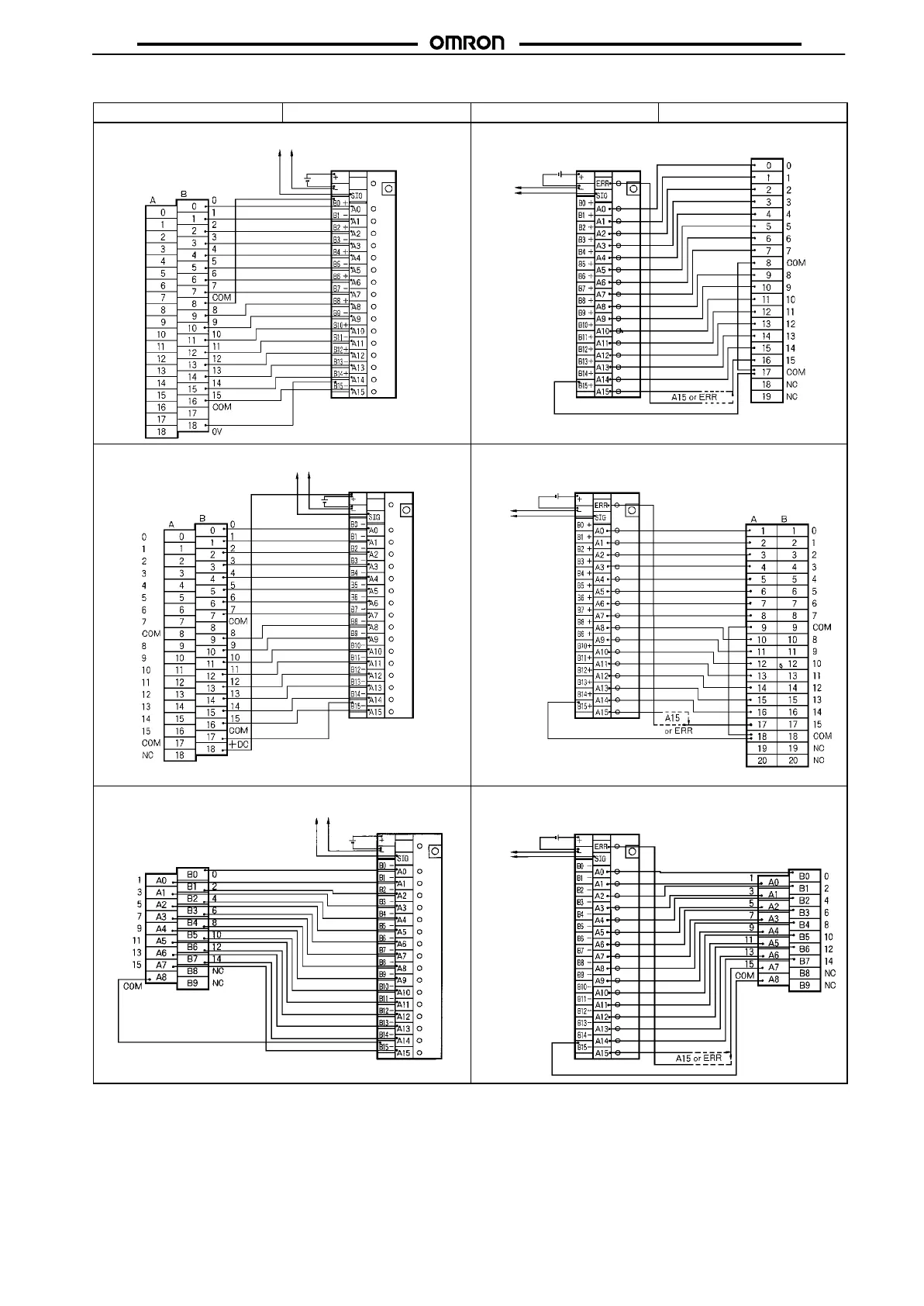

Examples of Connections with PLC I/O Units
PLC output B7A input B7A output PLC input
3G2A5-OD212 B7A-T6Cj
Transmission
path
12 to 24 VDC
B7A-R6Bjj 3G2A5-ID213
Transmission
path
Any one of B0
through B15
can be used.
12 to 24 VDC
3G2A5-OD412 B7A-T6Aj
Note: The B7A-T6B j can be connected in the same method.
Transmission
path
12 to 24 VDC
B7A-R6Bjj 3G2A5-ID219
Transmission
path
24 VDC
Any one of B0
through B15
can be used.
C200H-OC225 B7A-T6Aj
Note: The
B7A-T6B j can be connected in the same method.
24 VDC
Transmission
path
B7A-R6Fjj C200H-ID212
24 VDC
Transmission
path
Any one of B0
through B15
can be used.
