Omron B7A - Page 102

B7A
B7A
100

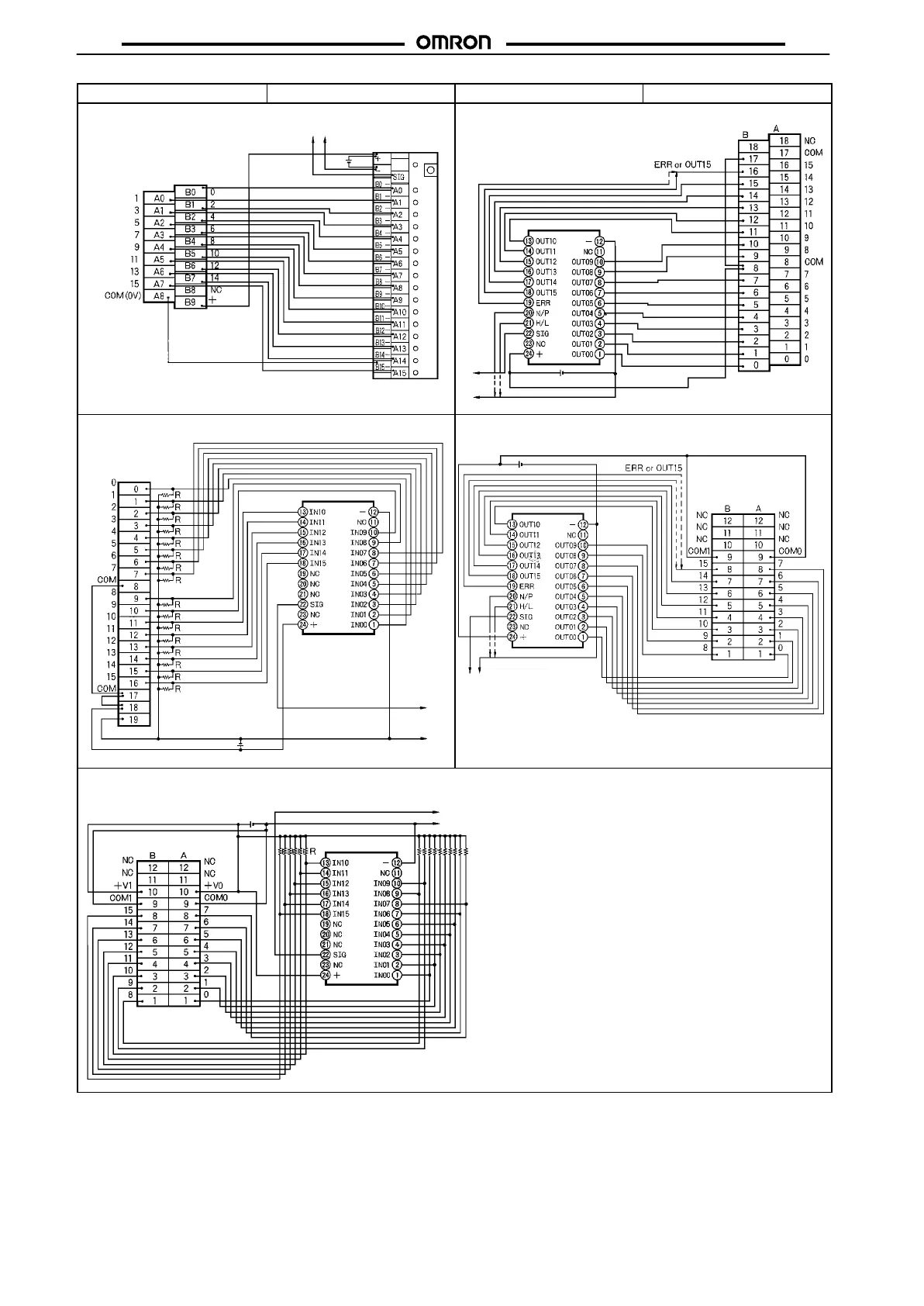

PLC output PLC inputB7A outputB7A input
C200H-OD212 B7A-T6Aj
Note:
The B7A-T6B j can be connected in the same method.
Transmission
path
24 VDC
24 VDC
B7A-R6A5j 3G2A5-ID218
Transmission path
12 to 24 VDC
3G2A5-OC221 B7A-T6Dj
Transmission
path
24 VDC
R=18 kΩ (1/10W min.)
B7A-R6A5j C200H-ID215
24 VDC
Transmission
path
C200H-OD215 B7A-T6Dj
Transmission
path
R=4.7 kΩ (1/2W min.)
12 to 24 VDC
