Omron B7A - Page 113

B7AP
B7AP
111

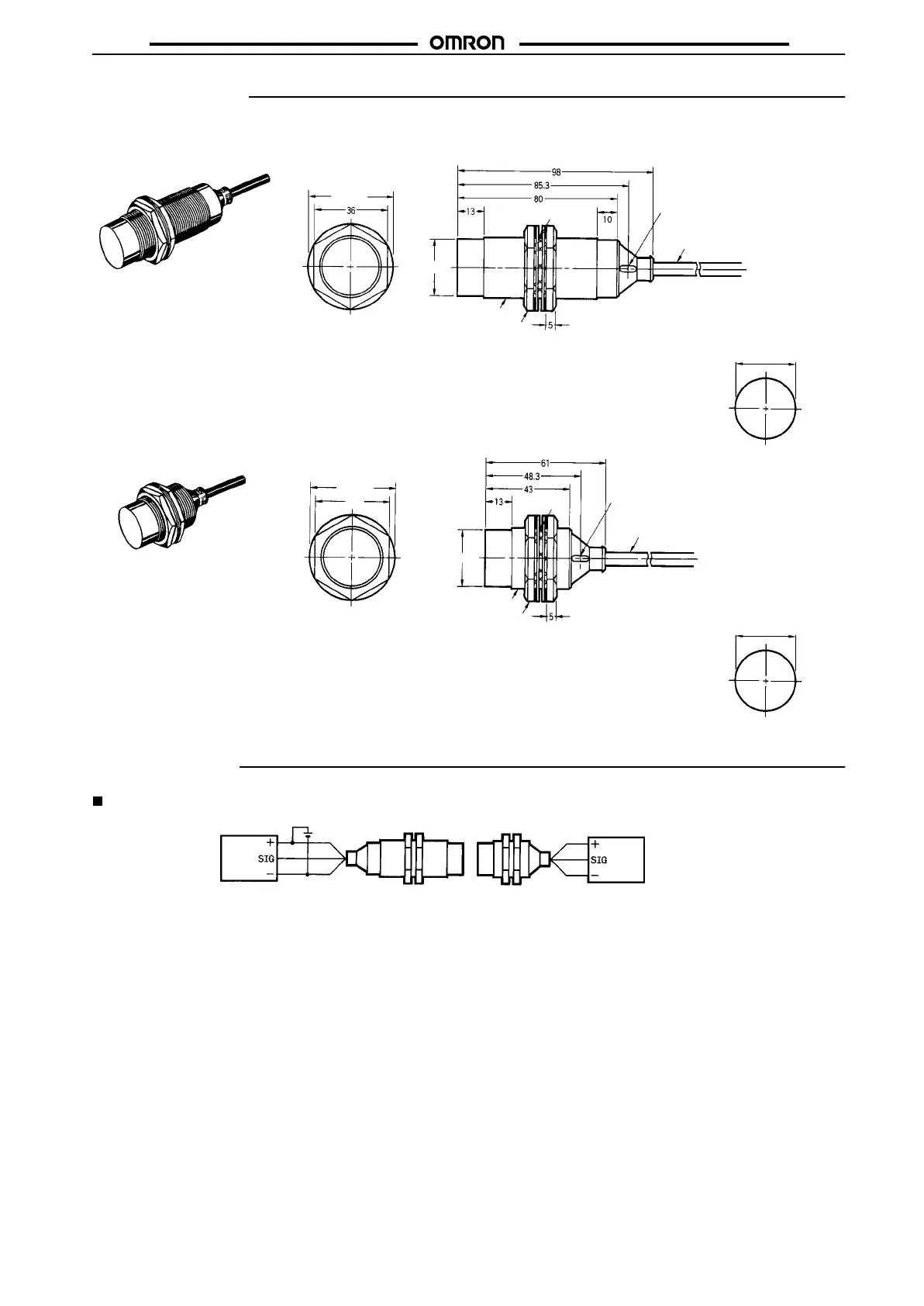

Dimensions
Note: All units are in millimeters unless otherwise indicated.
B7AP-S1
B7AP-M1
Mounting Holes
Mounting Holes
Toothed washer
Power indicator
Round vinyl-insulated cable
6 dia. (0.5 mm
2
)
Standard length: 2 m
Two, clamping nut
27.3 dia
30.5
+0.5
0
dia.
Toothed
washer
Two, clamping nut
Operation indicator
Round vinyl-insulated cable
6 dia. (0.5 mm
2
)
Standard length: 2 m
42 dia.
42 dia.
36
30.5
+0.5
0
dia.
M30 x 1.5
M30 x 1.5
27.3 dia
Installation
Connection
B7A-R Output
Unit
B7A-T Input Unit
B7AP-S1 B7AP-M1
24 VDC±10%
Brown
Black
Blue
Brown
Black
Blue
