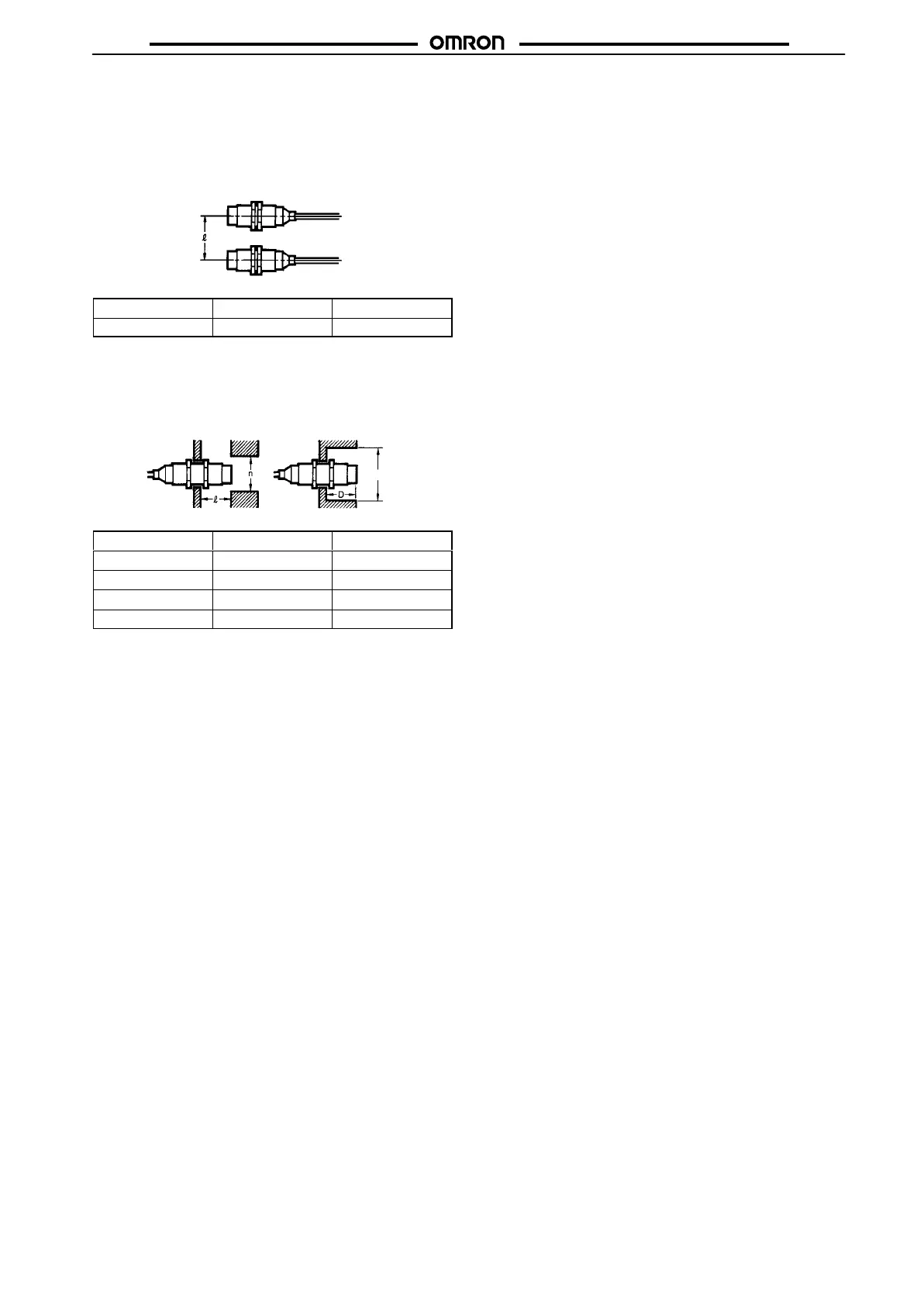

Minimum Distance between Power Couplers
Mounted in Parallel
When
mounting the B7AP-S1 and B7AP-M1 Power Couplers in par
-
allel, refer to the following table. Keep at least the specified mini-
mum distance between adjacent Power Couplers for proper heat
radiation
by considering the temperature
rise (approximately 20
°C)
of
the B7AP-S1 Power Couplers in operation.
Item B7AP-S1 B7AP-M1
ȏ
60 mm 60 mm
Effects of Surrounding Metal
The B7AP Power Coupler may malfunction when affected by sur-
rounding
metal. When mounting the B7AP within a metal panel, en
-
sure
that the clearances given in the following table are maintained.
Be
sure to check in advance that the B7AP operates properly
.
d dia.
Item B7AP-S1 B7AP-M1
ȏ 20
mm
20 mm
d
60 mm dia. 60 mm dia.
D
20 mm 20 mm
n
60 mm 60 mm
Maintenance
Regularly
check the following for the stable operation of the B7AP-
S1
and B7AP-M1 Power Couplers.
• The
mounting positions and the tightening of the mounting nuts.
• The
tightening, contacts, and breaking of the lead wires.
•
Dust accumulation on the heads.
• The ambient operating temperature and other operating
conditions.
• The
transmission distance.
