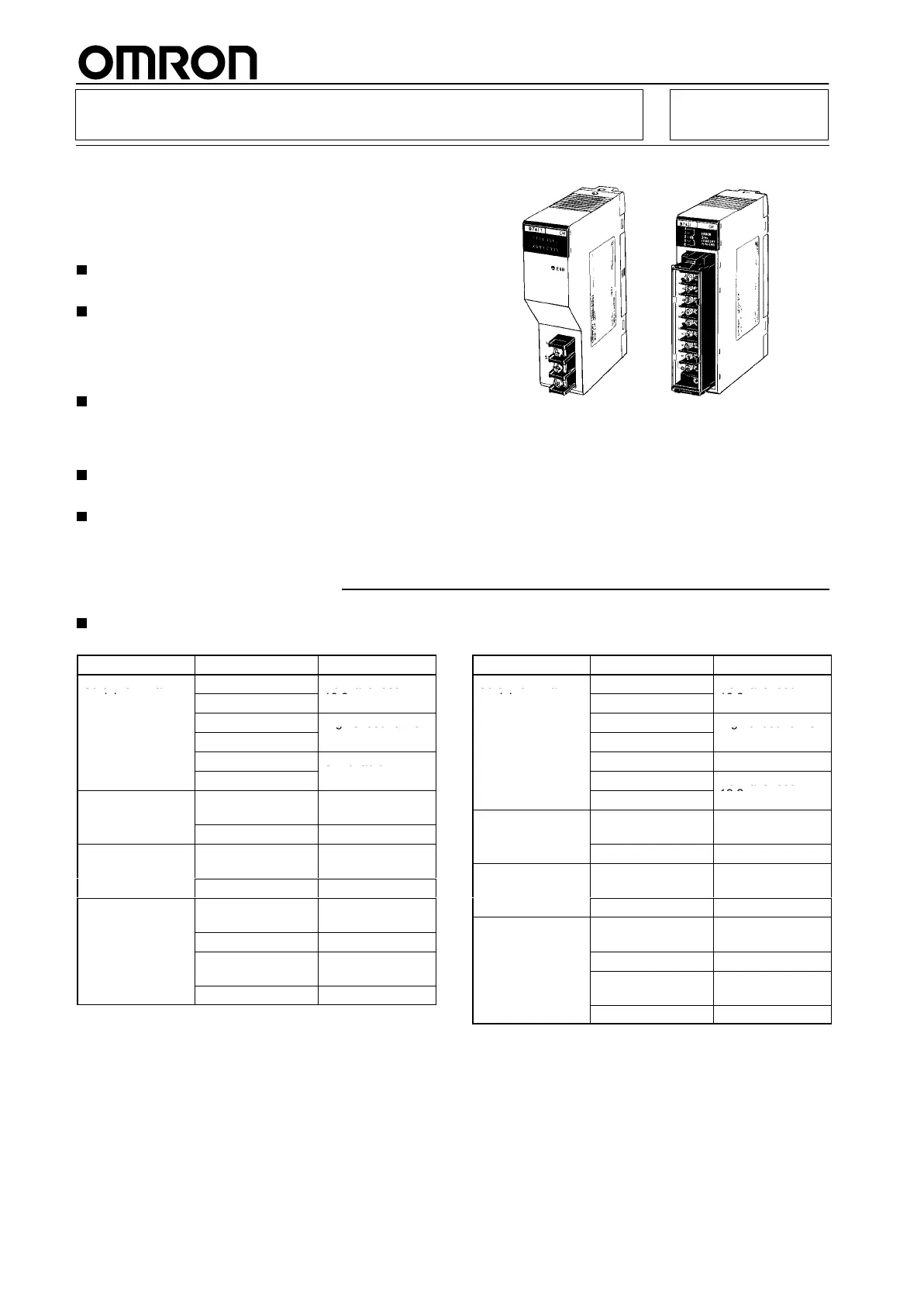

B7A Interface Units for CS1/C200HS/HX/HG/HE PLCs
C200H-B7A
Ideal for reducing wiring between
CS1-series and C200HS/HX/HG/HE
PLCs and I/O devices installed up to
500 m away
Mount
like any other PLC Unit to reduce wiring
and
save space.
Select from the following 6 types according to the
number of I/O points required: models with
16 inputs, 16 outputs, 32 inputs, 32 outputs,
16 inputs and 16 outputs, or 32 inputs and
32 outputs.
I/O
data exchange with B7A Link T
erminals enables
connection to I/O devices such as switches and
lamps
in remote locations without special
consider
-
ation of communications.
Use like a basic I/O Unit or Group-2 Unit. Special
I/O Unit mounting restrictions do not apply.
Both
normal I/O delay and short I/O delay available
with each model (except 16-input and 16-output
models).
Ordering Information
Connectable B7A Link Terminals
Input Models
Type Model I/O
delay time
Screw terminal
B7A-T6j1
Normal speed:
models
B7AS-T6j1
19.2 ms
B7A-T6j6
High speed: 3 ms
B7AS-T6j6
B7AS-T3BS
Switchable
B7AM-6BS
Modular models
B7A-T6D2
Normal speed:
19.2 ms
B7A-T6D7
High speed: 3 ms
Hybrid IC models
B7AH-T6D3
Normal speed:
19.2 ms
B7AH-T6D8
High speed: 3 ms
PLC connector
models
B7A-T6E3
Normal speed:
19.2 ms
B7A-T6E8
High speed: 3 ms
B7A-T3E3
Normal speed:
19.2 ms
B7A-T3E8
High speed: 3 ms
Output Models
Type Model I/O
delay time
Screw terminal
B7A-R6jj1
Normal speed:
models
B7AS-R6jj1
19.2 ms
B7A-R6jj6
High speed: 3 ms
B7AS-R6jj6
B7AM-6BS Switchable
G70D-R6Rj1-B7A
Normal speed:
G70D-R6Mj1-B7A
19.2 ms
Modular models
B7A-R6A52
Normal speed:
19.2 ms
B7A-R6A57
High speed: 3 ms
Hybrid IC models
B7AH-R6D53
Normal speed:
19.2 ms
B7AH-R6D58
High speed: 3 ms
PLC connector
models
B7A-R6Aj3
Normal speed:
19.2 ms
B7A-R6Aj8
High speed: 3 ms
B7A-R3Aj3
Normal speed:
19.2 ms
B7A-R3Aj8
High speed: 3 ms
Note: Use
combinations of B7A Interface Units and B7A Link T
er-
minals
that have the same I/O delay time.
Connection is not
possible
for 10-point B7A LInk T
erminals.
