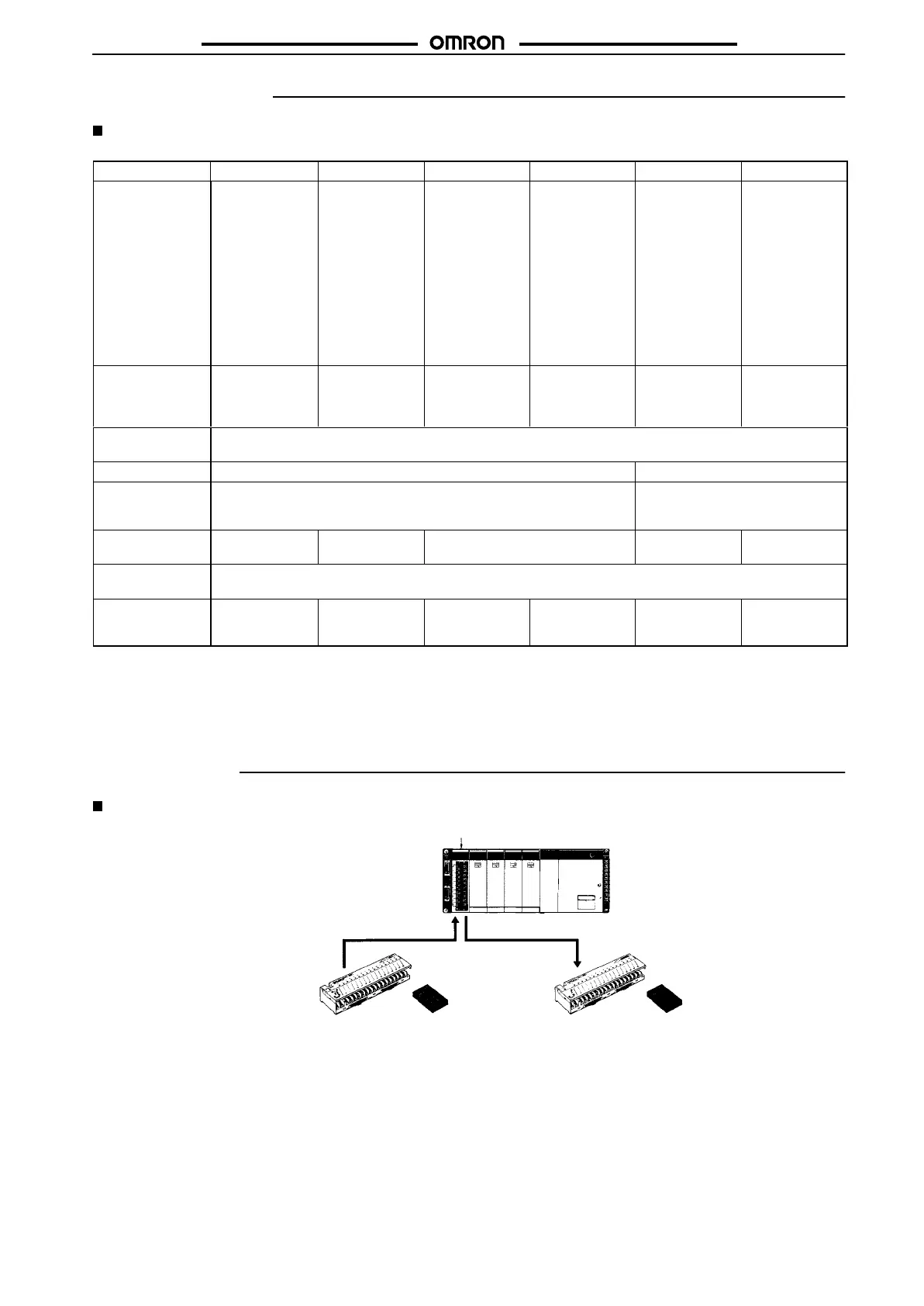

Specifications
Characteristics
General
Item C200H-B7A12 C200H-B7A02 C200H-B7A21 C200H-B7A22 C200H-B7AI1 C200H-B7AO1
Number of I/O
points
32 inputs
Input (reception):
16 points or 15
points and 1
error input
×
2
ports
32 outputs
Output
(transmission):
16 points
×
2
ports
16 inputs and 16
outputs
Input
(reception):
16 points or 15
points and 1
error input
Output
(transmission):
16 points
32 inputs and 32
outputs
Input
(reception):
16 points or 15
points and 1
error input
×
2
ports
Output
(transmission):
16 points
×
2
ports
16 inputs
Input
(reception):
16 points or 15
points and 1
error input
16 outputs
Output
(transmission):
16 points
Number of I/O
Unit words
allocated
2 input words
(Group-2)
2 output words
(Group-2)
1 input word and
1 output word
(total: 2 words;
Group-2)
2 input words
and 2 output
words (total: 4
words; Group-2)
1 input word
(basic I/O Unit)
1 output word
(basic I/O Unit)
Communications
method
Unidirectional, time-division multiplex
I/O delay time
Normal speed (typical: 19.2 ms) or high speed (typical: 3 ms) (switchable) Normal speed (typical: 19.2 ms)
Transmission
distance (see
note 2)
Normal speed:
500 m max.
High speed:
100 m max.
500 m max.
Error processing
HOLD/LOAD
OFF (switchable)
--- HOLD/LOAD OFF (input only)
(switchable)
HOLD ---
Internal current
consumption
5 VDC, 100 mA max.
External power
supply (see note
3)
12 to 24 VDC
±
10%, 50 mA
min.
12 to 24 VDC
±
10%, 60 mA
min.
12 to 24 VDC
±
10%, 50 mA
min.
12 to 24 VDC
±
10%, 80 mA
min.
12 to 24 VDC
±
10%, 10 mA
min.
12 to 24 VDC
±
10%, 30 mA
min.
Note: 1. When
using the C200H-B7A01 with a C200HS/C200H PLC, use a Backplane with “-V
j
” at the end of the model number
. Normal
operation
will not be possible if any other type of Backplane is used.
The C200H-B7A01/12/21/22 cannot be used with a C200H-CPU01/02/03.
2.
The maximum transmission distance varies depending on the wiring method.
3.
The value for the external power supply does not include the power required by the B7A Link T
erminals.
Installation
Example of Connection to a B7A Link Terminal (C200H-B7A21)
C200H-B7A21
500 m max. (normal speed)/
100 m max. (high speed)
500 m max. (normal speed)/
100 m max. (high speed)
B7A/B7AS
16-input model
B7A/B7AS
16-output model
To Next Page
