BN75R/BN150R/BN300R
6
40
3.

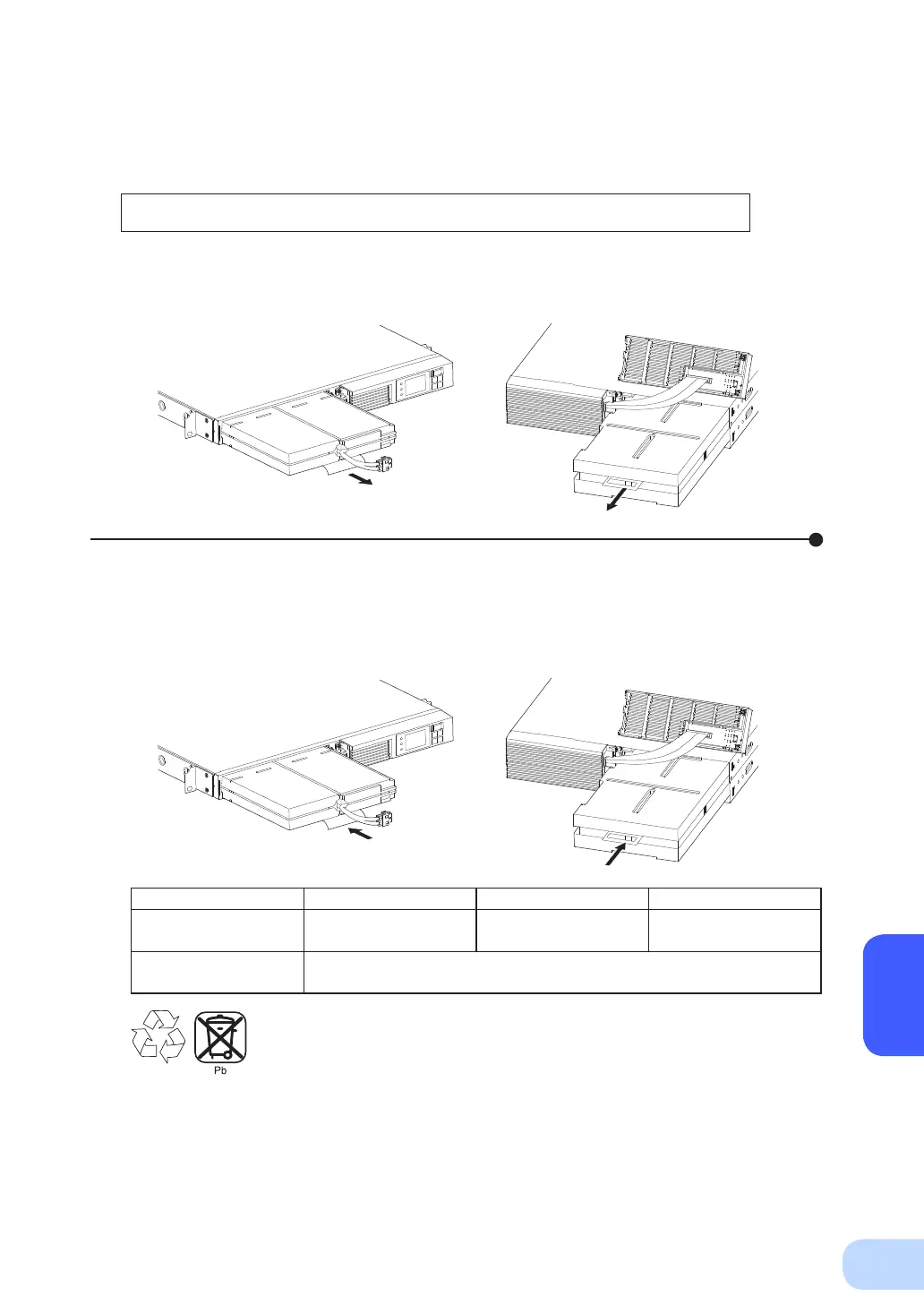

Remove the battery pack by holding the white label on the bottom of the battery pack (for the
BN75R) or by holding the battery pack handle (for the BN150R and BN300R).
Caution: Do not hold the connector or cable of the battery pack.
Use the red line on the label on top of the battery pack, which is 10 cm from the inner edge of the
battery, to gauge how much further you need to pull the battery to remove it. Hold the battery se-
curely with both hands so as not to drop it.
4.
Insert the new battery upright into the unit as far as it will go.
●
Replacement battery pack
For BN75R: Model BNB75R
For BN150R: Model BNB150R
For BN300R: Model BNB300R
BN75R BN150R BN300R
Nominal voltage of
total battery strings
24 VDC
(6 V×4 PCS)
48 VDC
(12 V×4 PCS)
72 VDC
(12 Vx6 PCS)
Nominal capacity of
each battery
9Ah
●
CONTAINS SEALED LEAD-ACID BATTERY.
●
BATTERY MUST BE RECYCLED.
Pb
