6. Maintenance and Inspection

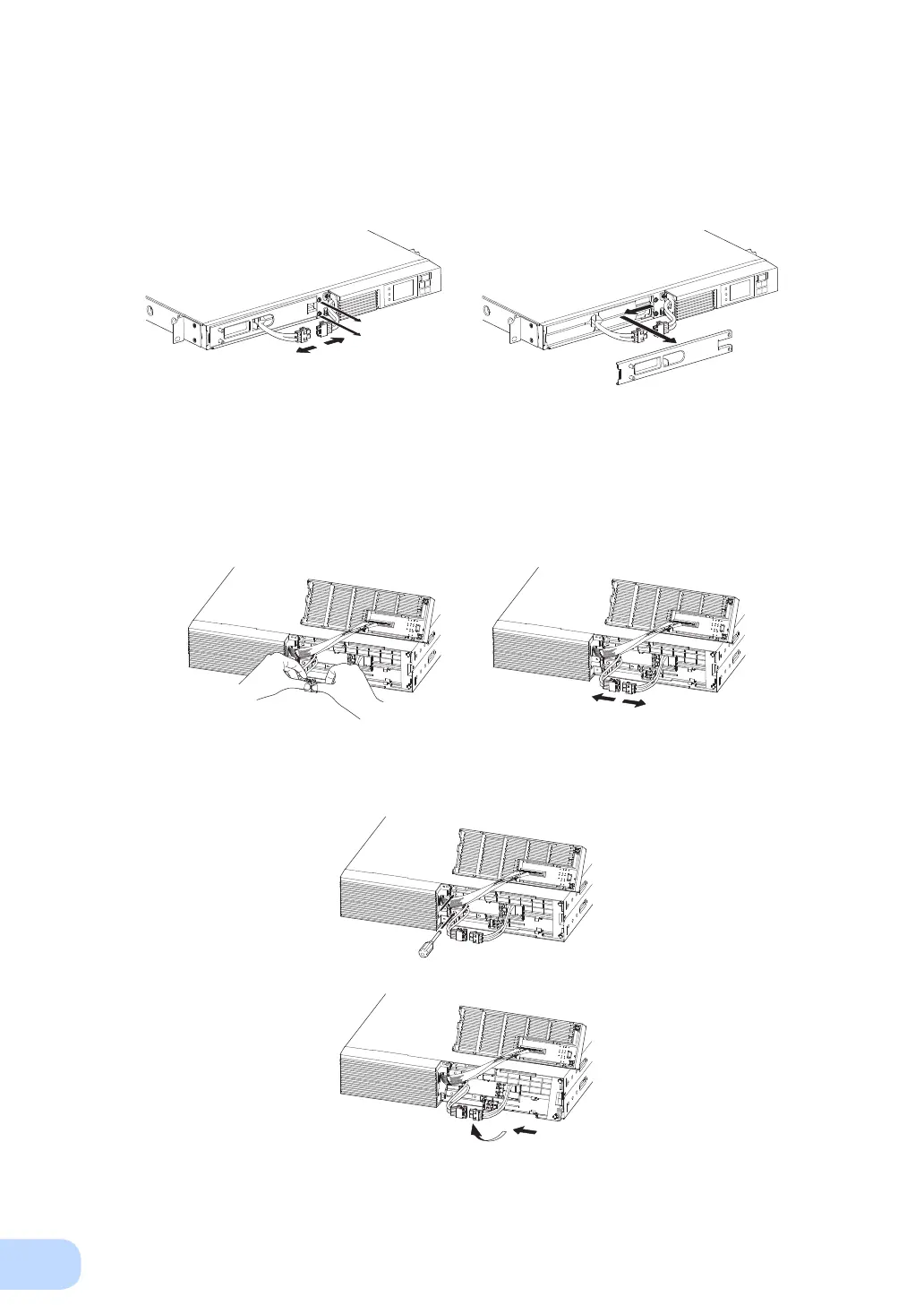

Red and black battery cables are clamped to the unit; hold and pull them out towards you.

Pull the battery connectors apart

②

Hold the battery connectors with both hands, and then, while pressing down on the center of the

connectors

①

, pull them apart

②

①

③

Remove (turn counter-clockwise) the 2 screws that hold the battery cover in place.

③

Slide the battery cover to the left and pull it towards you from the bottom to remove it.

④

③

④

②

①

<BN75R>

Pull the battery connectors apart.

①

Remove (turn counter-clockwise) the 2 screws that hold the battery cover in place.

②

Slide the battery cover to the left and pull it towards your right side to remove it.

③
