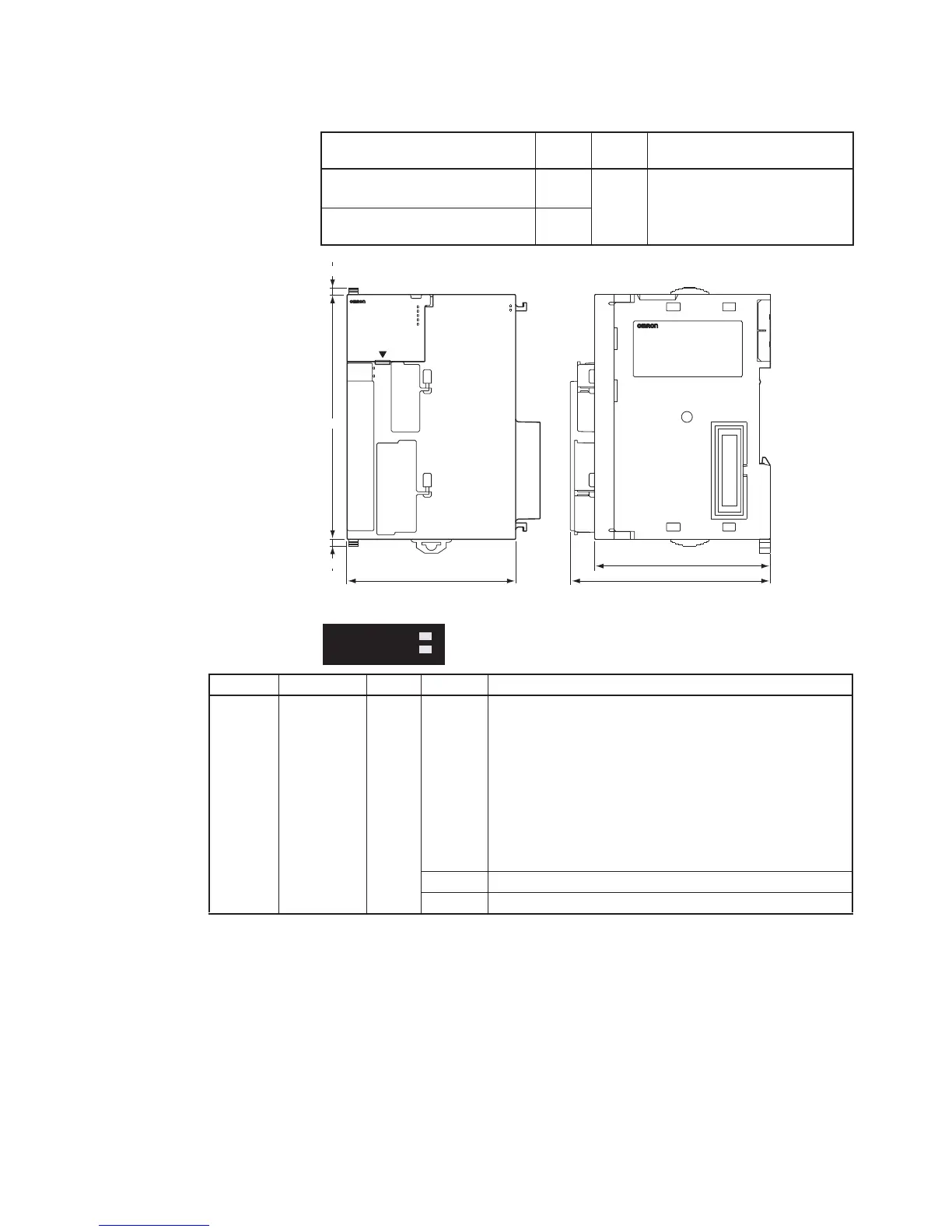

xvi
Loop-control CPU Unit
Dimensions
Indicators
Product name and model W
(mm)
H
(mm)
D (mm)
CJ1G-CPU45P/44P/43P/42P
Loop-control CPU Unit
69 90 65 (not including connector)
73.9 (including connector)
CJ1G-CPU45H/44H/43H/42H
CJ1-H CPU Unit (reference)
62
CONTROLLER
CJ1G-CPU44P
SYSMAC
PROGRAMMABLE
ERR/ALM
RUN
COMM
INH
PRPHL
OPEN
PERIPHERAL
BUSY
MCPWR
PORT
65
69 73.9
2.7
2.7
90
LCB03
EXEC
RDY
INNER LOOP CONTROLLER
RDY
EXEC
Indicator Name Color Status Description
RDY Ready Green Not lit The Loop Control Board is not operating for one of the fol-
lowing reasons:
A Fatal Inner Board Error occurred (A40112 ON.)
Initialization is not completed yet.
A fatal error occurred.
The flash memory backup data is invalid.
The Loop Control Board is initializing.
A hardware failure occurred in the Loop Control Board.
Power is not being supplied from the Power Supply Unit.
A Loop Control Board WDT error occurred.
Flashing A WDT error occurred in the CPU Unit.
Lit The Loop Control Board is ready for operation.
