Expanded System Configuration Section 2-5
CompoWay/F
(Host Function)

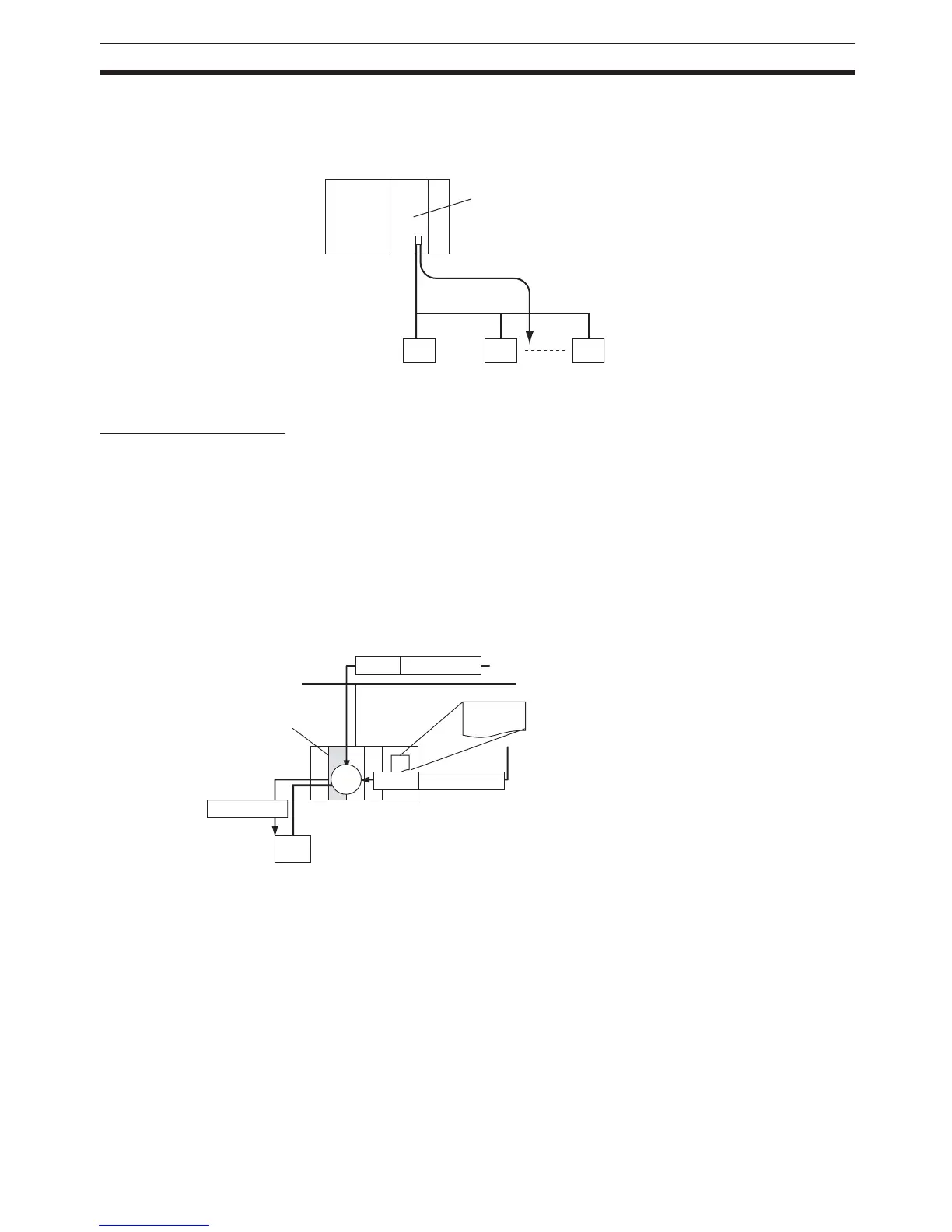

The CJ-series CPU Unit can operate as a host to send CompoWay/F com-
mands to OMRON components connected in the system. CompoWay/F com-
mands are executed by using the CompoWay/F send/receive sequences in
the standard protocols of the protocol macro function.
Serial Gateway Mode
When using CPU Units with unit version 3.0 or later (peripheral port and RS-
232C port), the received FINS message is automatically converted into Com-
poWay/F according to the message (see note). When Serial Communications
Boards/Units with unit version 1.2 or later are used, the received FINS mes-
sage is automatically converted into either CompoWay/F, Modbus-RTU, Mod-
bus-ASCII, or Host Link FINS according to the message.
Note CPU Units with unit version 3.0 or later (peripheral port and RS-232C port)
support automatic conversion into CompoWay/F only (automatic conversion
into Modbus-RTU, Modbus-ASCII, and Host Link FINS is not possible).
CompoWay/F, Modbus-RTU, Modbus-ASCII
CompoWay/F command
Protocol macro
CompoWay/F
OMRON
components
FINS
CompoWay
(See note.)
CompoWay
(See note.)
FINS
CompoWay
(See note.)
CMND(490)
Network
FINS command sent
CPU Unit with unit
version 3.0 or later
(peripheral port or RS-
232C port)
Serial Communications
Board/Unit with unit
version 1.2 or later
CompoWay-compatible
OMRON Component, or
Modbus-RTU-compatible
or Modbus-ASCII-
com
p
atible device
Note: Or Modbus-RTU command or Modbus-ASCII command.
These commands cannot be sent to the CPU Unit.
Serial
Gateway
