CJ-series Basic I/O Units Section 3-6

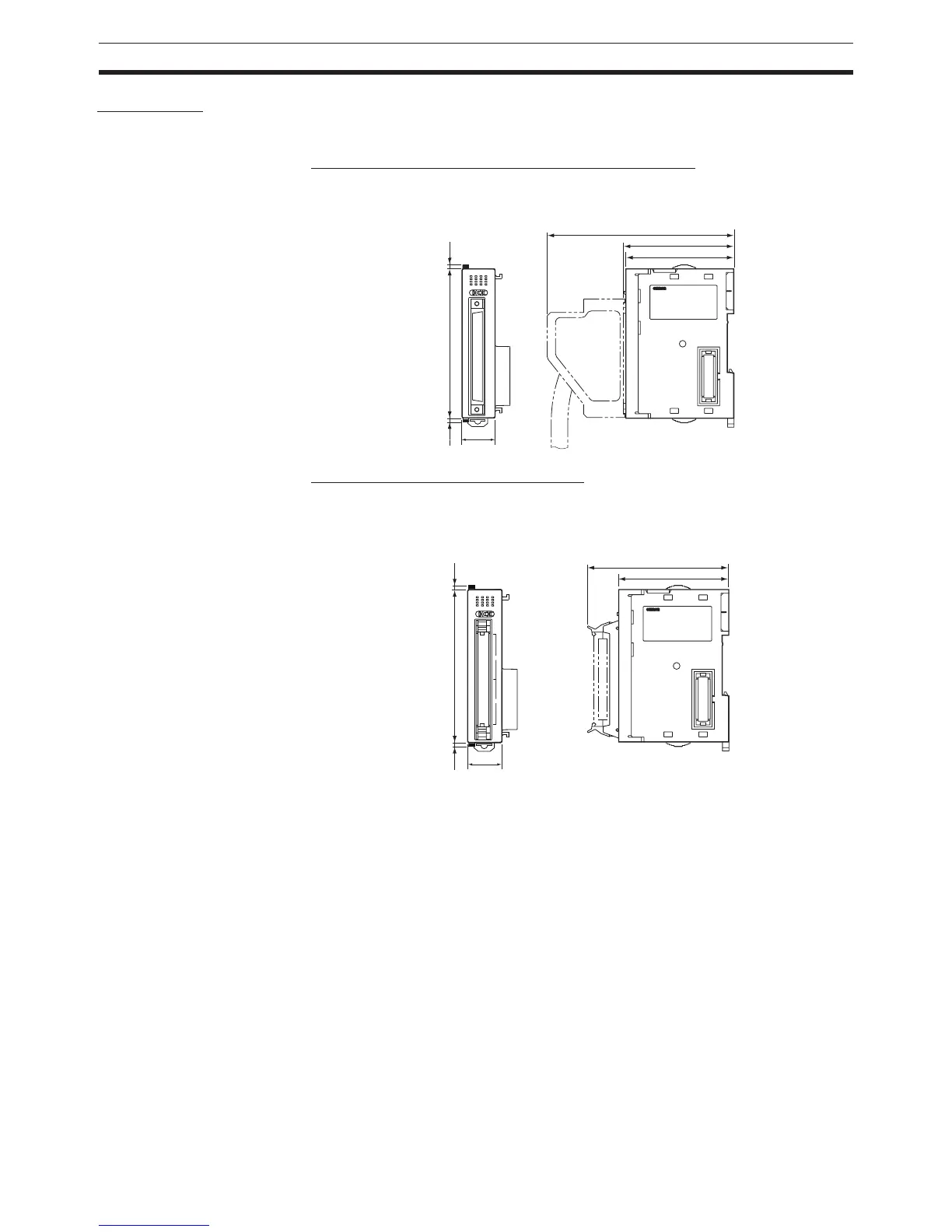

Dimensions
32-point Units (Input Units and Output Units)
■ Units with Fujitsu-compatible Connector (40-pin x 1)
CJ1W-ID231 (32 inputs: 24 V DC)
CJ1W-OD231 (32 outputs: 12 to 24 V DC, 0.5 A)
■ Units with MIL Connector (40-pin x 1)
CJ1W-ID232 (Inputs: 24 V DC, 32 inputs)
CJ1W-OD232 (32 outputs: 24 V DC, 0.5 A, load short-circuit protection)
CJ1W-OD233 (32 outputs: 12 to 24 V DC, 0.5 A)
2.72.7 90
65
66.5
(112.5)
ID231
0
0
1
20
AB
20
1
1
123
456 7
89
10 11
12 13 14 15
DC24V 4.1mA
20
2.72.7 90
65
83.6
ID231
0
0
1
1ch
0ch
123
456 7
89
10 11
12 13 14 15
DC24V 4.1mA
20
