Installation Section 5-2

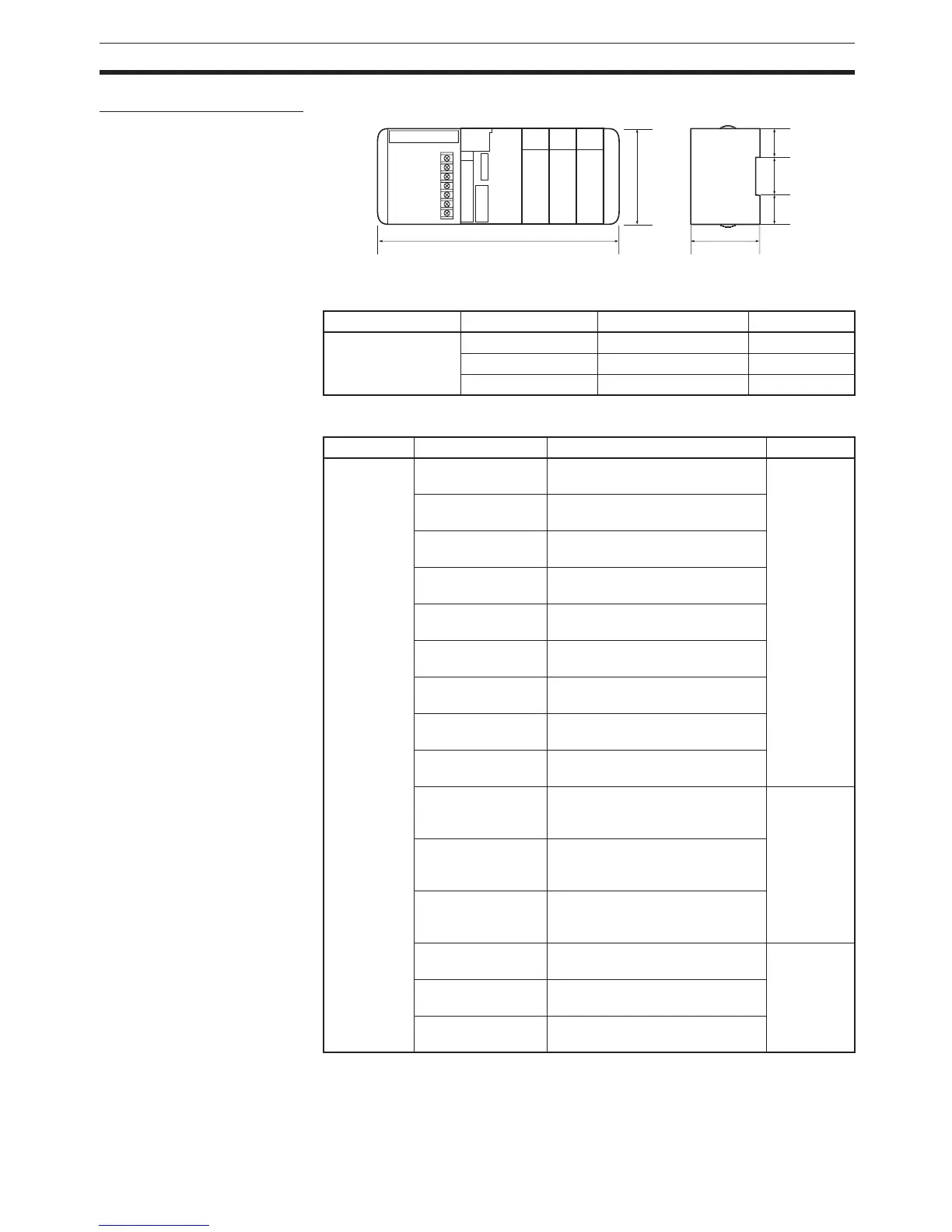

Dimensions (Unit: mm)
The width the CJ-series Power Supply Unit depends on the model. The width
of the Power Supply Unit when computing the width of a Rack, is “a.”
CPU Unit width: b
Name Model number Specifications Unit width
Power Supply Unit CJ1W-PA205R 100 to 240 V AC, 25 W 80 mm
CJ1W-PA202 100 to 240 V AC, 14 W 45 mm
CJ1W-PD025 24 V DC, 25 W 60 mm
Name Model number Specifications Unit width
CPU Unit CJ1H-CPU67H I/O points: 2,560
Program capacity: 250 Ksteps
62 mm
CJ1H-CPU66H I/O points: 2,560
Program capacity: 120 Ksteps
CJ1H-CPU65H I/O points: 2,560
Program capacity: 60 Ksteps
CJ1G-CPU45H I/O points: 1,280
Program capacity: 60 Ksteps
CJ1G-CPU44H I/O points: 1,280
Program capacity: 30 Ksteps
CJ1G-CPU43H I/O points: 960
Program capacity: 20 Ksteps
CJ1G-CPU42H I/O points: 960
Program capacity: 10 Ksteps
CJ1G-CPU45 I/O points: 1,280
Program capacity: 60 Ksteps
CJ1G-CPU44 I/O points: 1,280
Program capacity: 30 Ksteps
CJ1M-CPU23 I/O points: 640
Program capacity: 20 Ksteps
Built-in pulse I/O
49 mm
CJ1M-CPU22 I/O points: 320
Program capacity: 10 Ksteps
Built-in pulse I/O
CJ1M-CPU21 I/O points: 160
Program capacity: 5 Ksteps
Built-in pulse I/O
CJ1M-CPU13 I/O points: 640
Program capacity: 20 Ksteps
31 mm
CJ1M-CPU12 I/O points: 320
Program capacity: 10 Ksteps
CJ1M-CPU11 I/O points: 160
Program capacity: 5 Ksteps
27
35.
4
27.
6
90
65
W
