Installation Section 5-2
Other than the CPU Units and Power Supply Units, CJ-series Units come in
two widths: 20 mm and 31 mm. When computing the width of a Rack, the
number of 20-mm Units is “n.”
When computing the width of a Rack, the number of 31-mm Units is “m.”
W = a (Power Supply Unit) + b (CPU Unit) + 20 x n + 31 x m + 14.7 (End
Cover) mm
Example: CJ1W-PA205R Power Supply Unit, CJ1H-CPU66H CPU Unit, two
32-point Basic I/O Units and eight 31-mm Units.
W = 80 + 62 + 20 x 2 + 31 x 8 +14.7 = 444.7 mm

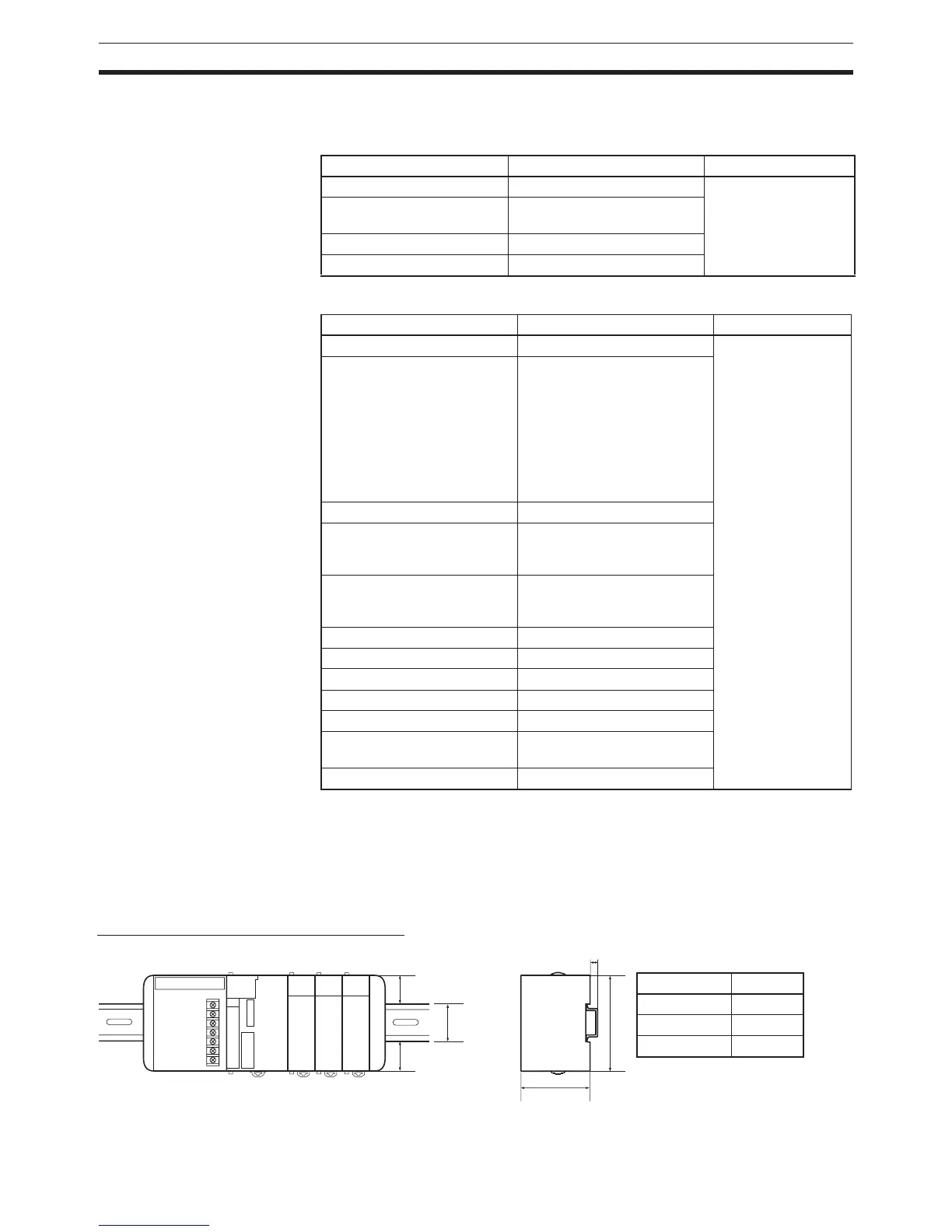

Installation Dimensions (Unit: mm)
Name Model number Unit width
I/O Control Unit CJ1W-IC101 20 mm
32-point Basic I/O Units CJ1W-ID231/ID232
CJ1W-OD231/OD232
B7A Interface Units CJ1W-B7A14/04/22
CompoBus/S Master Unit CJ1W-SRM21
Name Model number Unit width
I/O Interface Unit CJ1W-II101 31 mm
16-point Basic I/O Units CJ1W-ID201
CJ1W-ID211
CJ1W-IA111/201
CJ1W-INT01
CJ1W-OD201/202/203/204/
211/212
CJ1W-OC201/211
CJ1W-OA201
CJ1W-IDP01
32-point Basic Mixed I/O Units CJ1W-MD231/232/233
64-point Basic I/O Units and
64-point Basic Mixed I/O Units
CJ1W-ID261/262
CJ1W-OD261/262/263
CJ1W-MD261/263/563
Analog Input Units
Analog Output Units
Analog I/O Units
CJ1W-AD041/081 (-V1)
CJ1W-DA021/041/08V
CJ1W-MAD42
Temperature Control Units CJ1W-TC@@@
Position Control Units CJ1W-NC@@@
High-speed Counter Unit CJ1W-CT021
DeviceNet Unit CJ1W-DRM21
Controller Link Unit CJ1W-CLK21
Serial Communications Unit CJ1W-SCU41
CJ1W-SCU21
Ethernet Unit CJ1W-ETN11
27
35.4
27.6
90
A
68.8
DIN TrackA
PFP-100N2 16 mm
PFP-100N 7.3 mm
PFP-50N 7.3 mm
