Installation Section 5-2

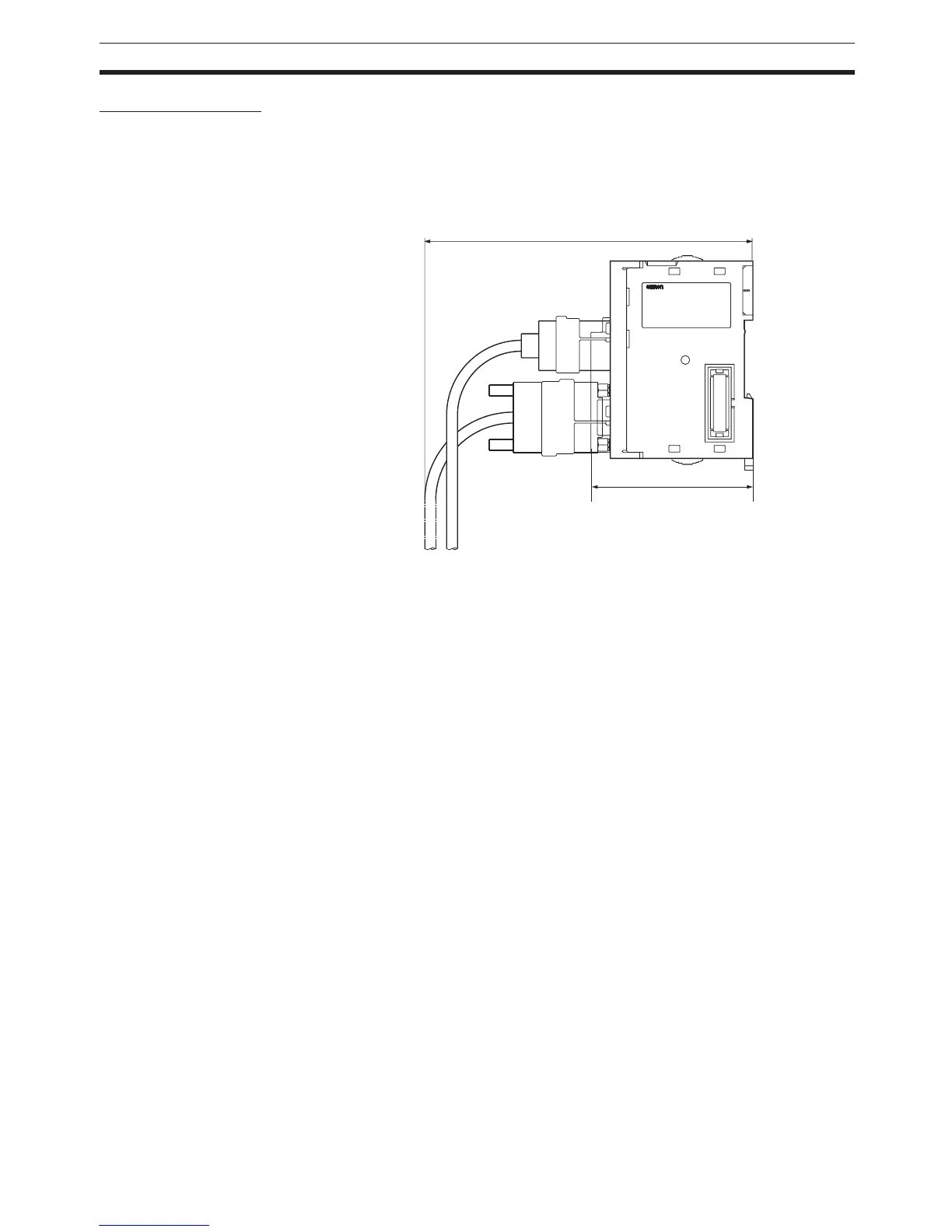

Installation Height
The installation height of the CJ-series CPU Rack and Expansion Racks var-
ies from 81.6 to 89.0, depending on the I/O Units that are mounted. When a
Programming Device (CX-Programmer or Programming Console) is con-
nected, however, even greater height is required. Allow sufficient depth in the
control panel containing the PLC.
Approx. 100 to 150 mm
81.6 to 89.0 mm
