Omron CJ1G/H-CPU series User Manual

251

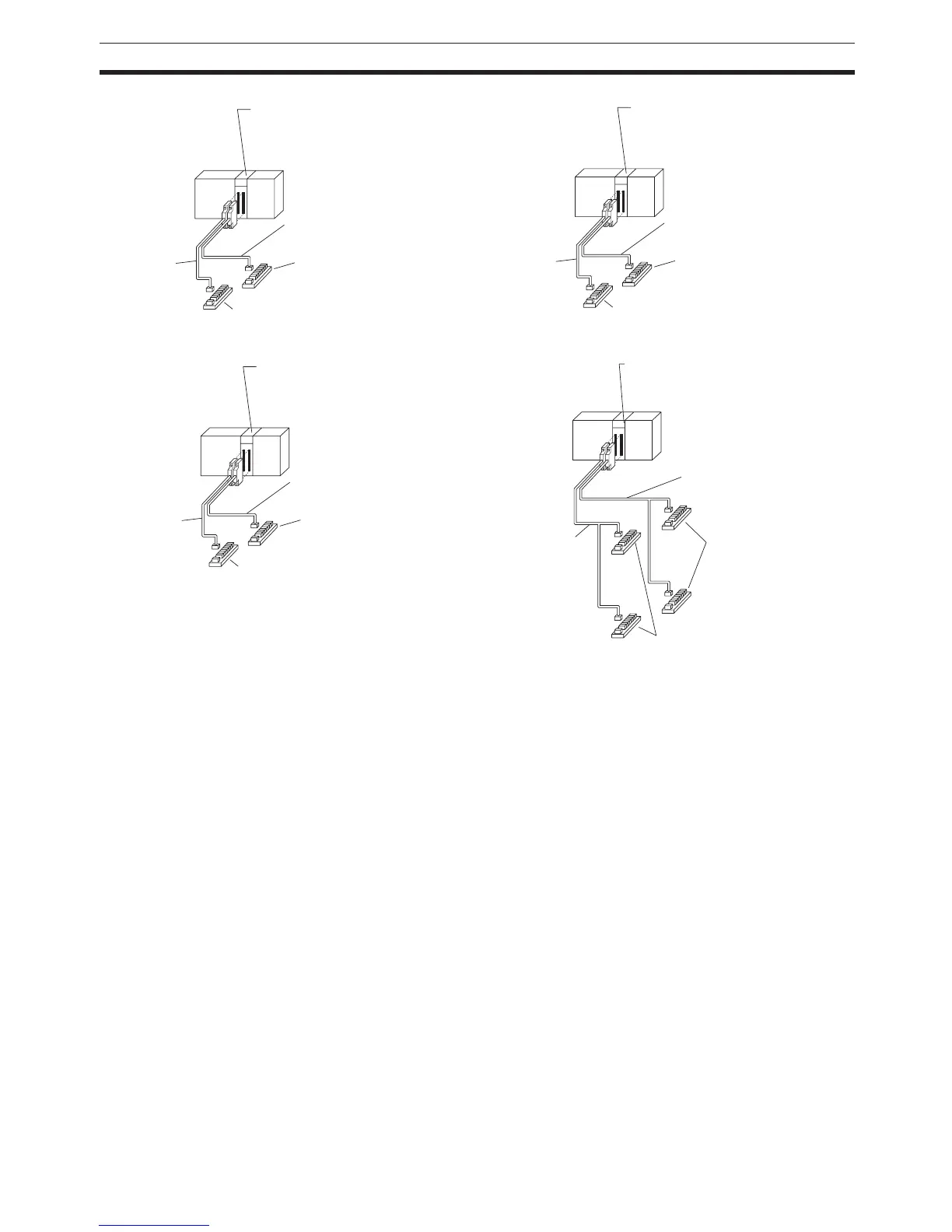

Wiring Section 5-3
CJ-series 32-point Basic I/O Units, 16 inputs, 16 output
s
Output
Input
I/O Blocks
G7TC-ID16
G7TC-IA16
I/O Blocks, I/O Terminals
G7TC-OC16-1
Connecting Cable
G79-O@@C
Connecting Cable
G79-O@@C
CJ1W-MD232 (Mixed I/O Units, MIL connectors,
24-V DC inputs/transistor outputs)
CJ-series 32-point Basic I/O Units, 16 inputs, 16 outputs
Output
Input
I/O Blocks
G7TC-ID16
G7TC-IA16
I/O Blocks, I/O Terminals
G70D-SOC16-1
G70D-FOM16-1
G70A-ZOC16-4 + Relays
Connecting Cable
G79-O
@@C
Connecting Cable
G79-I@@C
CJ1W-MD232 (Mixed I/O Units, MIL connectors,
24-V DC inputs/transistor outputs)
CJ-series 32-point Basic I/O Units, 16 inputs, 16 output
s
Output
Input
I/O Blocks
G7TC-ID16
G7TC-IA16
I/O Blocks, I/O Terminals
G7TC-OC16
G70D-SOC16/VSOC16
G70D-FOM16/VFOM16
G70A-ZOC16-3 + Relays
Connecting Cable
G79-O@@C
Connecting Cable
G79-O@@C
CJ1W-MD233 (Mixed I/O Units, MIL connectors,
24-V DC inputs/transistor outputs)
CJ-series 64-point Basic I/O Units, 32 inputs, 32 outputs
Input
Output
Connecting Cable
G79-O
@-@-D1
I/O Blocks
G7TC-ID16
G7TC-IA16
Connecting Cable
G79-O@-@-D1
I/O Blocks, I/O Terminals
G7TC-OC16
G70D-SOC16/VSOC16
G70D-FOM16/VFOM16
G70A-ZOC16-3 + Relays
CJ1W-MD263 (Mixed I/O Units, MIL connectors,
24-V DC inputs/transistor outputs)
CJ1W-MD563 (Mixed I/O Units, MIL connectors,
TTL inputs/TTL outputs)
