Omron CJ1G/H-CPU series User Manual

250
Wiring Section 5-3
Connecting to I/O Terminals

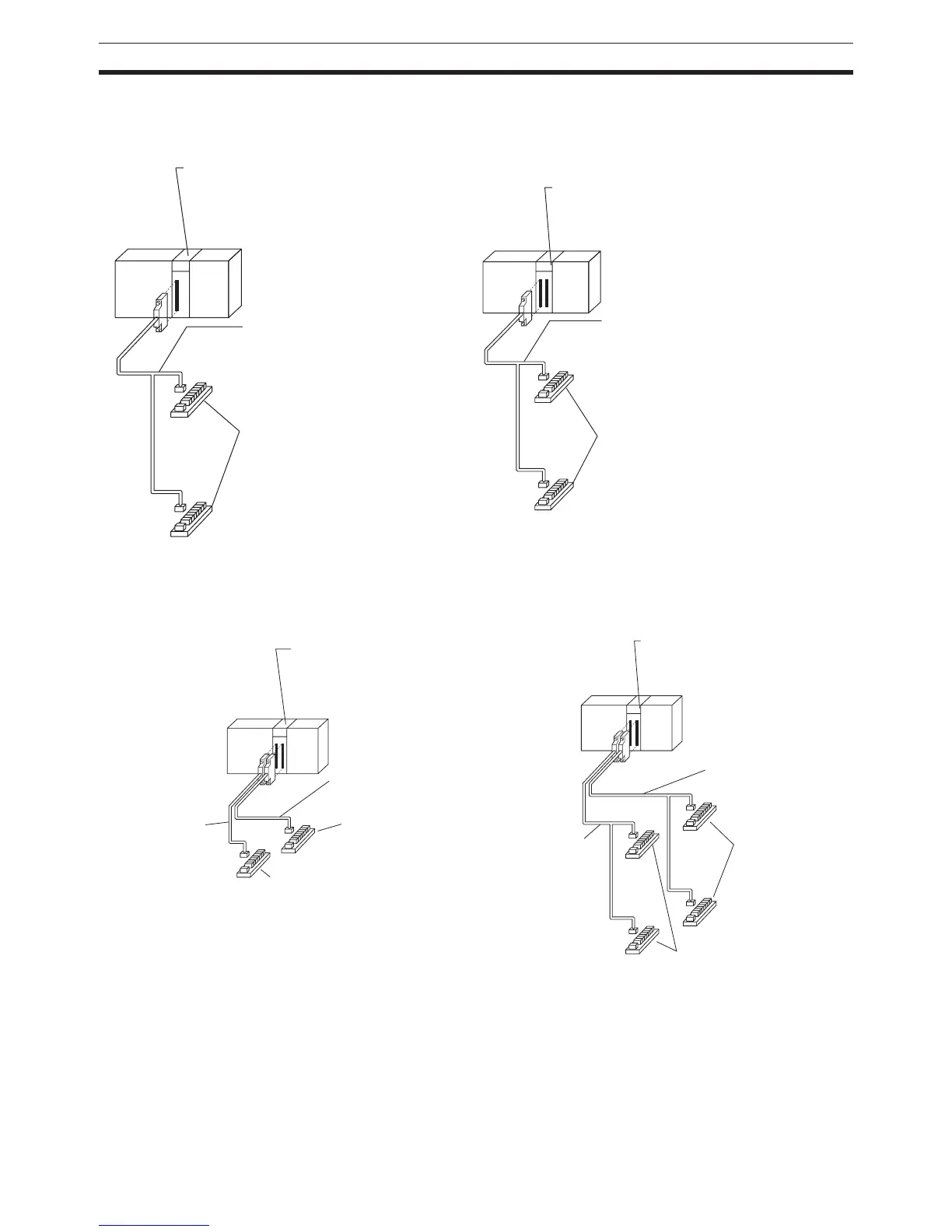

The following Connecting Cables and I/O Terminals are required to connect to
terminal blocks.
Connecting Cable
G79-I@C-@
(for Input Unit, Fujitsu connector)
G79-O@C-@
(for Output Unit, Fujitsu connector)
G79-O@-@-D1
(for Input Unit, MIL connector)
G79-O@-@-D1
(for Output Unit, MIL connector)
Input Blocks
G7TC-ID16
G7TC-IA16
Output Blocks/Terminals
G7TC-OC16 (OD262/263 only)
G70D-SOC16/VSOC16 (OD261/263 only)
G70D-FOM16/VFOM16 (OD261/263 only)
G70A-ZOC16-3 + Relays (OD261/263 only)
Output Blocks/Terminals
G70D-SOC16-1 (OD262 only)
G70D-FOM16-1 (OD262 only)
G70A-ZOC16-4 + Relays (OD262 only)
CJ-series 64-point Basic I/O Units
CJ1W-ID261 (Input Unit, Fujitsu connector)
CJ1W-OD261 (Output Unit, Fujitsu connector)
CJ1W-ID262 (Input Unit, MIL connector)
CJ1W-OD262 (Output Unit, MIL connector)
CJ1W-OD263 (Output Unit, MIL connector)
Two sets
required.
Connecting Cable
G79-I@C-@
(for Input Unit, Fujitsu connector)
G79-O@C-@
(for Output Unit, Fujitsu connector)
G79-O@-@-D1
(for Input Unit, MIL connector)
G79-O@-@-D1
(for Output Unit, MIL connector)
Input Blocks
G7TC-ID16
G7TC-IA16
Output Blocks/Terminals
G7TC-OC16
G70D-SOC16/VSOC16
G70D-FOM16/VFOM16
G70A-ZOC16-3 + Relays
(CJ1W-OD231/233 only)
G70D-SOC16-1
(CJ1W-OD232 only)
G70D-FOM16-1
(CJ1W-OD232 only)
G70A-ZOC16-4 + Relays
(
CJ1W-OD232 onl
y)
CJ-series 32-point Basic I/O Units
CJ1W-ID231 (Input Unit, Fujitsu connector)
CJ1W-OD231 (Output Unit, Fujitsu connector)
CJ1W-ID232 (Input Unit, MIL connector)
CJ1W-OD232 (Output Unit, MIL connector)
CJ1W-OD233 (Output Unit, MIL connector)
Connecting Cable
G79-@C
Output
Input
I/O Block
G7TC-ID16
G7TC-IA16
I/O Block, I/O Terminals
G7TC-OC16
G70D-SOC16/VSOC16
G70D-FOM16/VFOM16
G70A-ZOC16-3 + Relays
Connecting Cable
G79-@C
CJ-series 32-point Basic I/O Units,
16 inputs, 16 outputs
CJ1W-MD231 (Mixed I/O Units,
Fujitsu connectors, 24-V DC
inputs/transistor outputs)
Connecting Cable
G79-I@C-@
Output
Input
I/O Blocks
G7TC-ID16
G7TC-IA16
I/O Blocks, I/O Terminals
G7TC-OC16
G70D-SOC16/VSOC16
G70D-FOM16/VFOM16
G70A-ZOC16-3 + Relays
Connecting Cable
G79-O@C-@
CJ-series 64-point Basic I/O Units,
32 inputs, 32 outputs
CJ1W-MD261 (Mixed I/O Units,
Fujitsu connectors,
24-V DC inputs/transistor outputs)
