Omron CJ1M-CPU series User Manual

101
Basic System Configuration Section 2-3

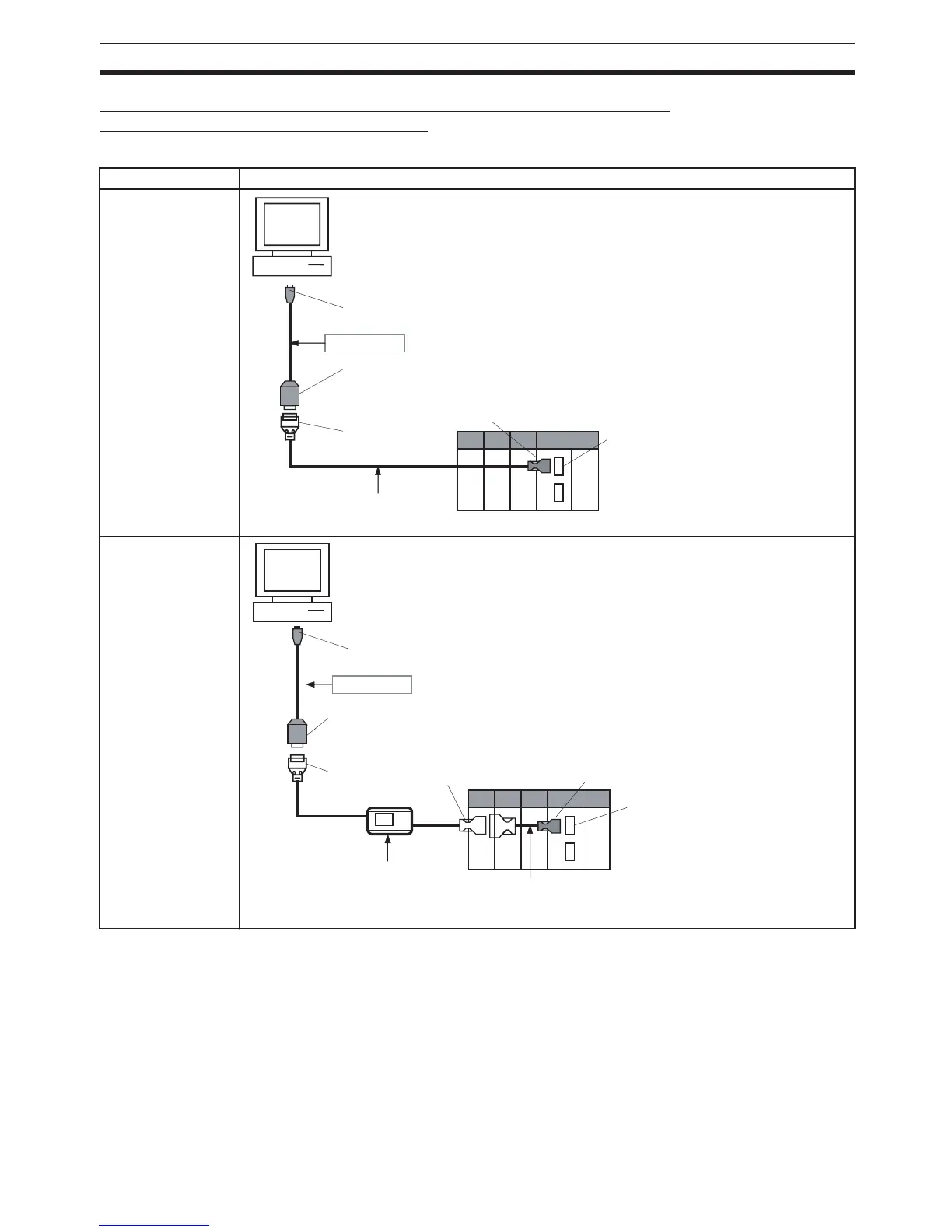

Connecting Personal Computers Running Programming Devices
(Using USB-Serial Conversion Cable)
Connecting to the Peripheral Port
Cable Connection Diagram
Using a CS1W-
CN226/626 cable
Using a CQM1-
CIF02 cable
Note With a CS/CJ-series PLC, the connection must be a host link connection.
CS1W-CIF31
USB type A plug, male
Peripheral port
D-sub Connector
(9-pin male)
D-sub Connector
(9-pin female)
CS/CJ-series PLC connection
Customizable Counter Unit connection
CS/CJ-series peripheral connector
Recommended cable:
CS1W-CN226/626
CS1W-CN114
CS1W-CIF31
Peripheral port
CS/CJ-series PLC connection (see note)
USB type A plug, male
D-sub Connector
(9-pin male)
D-sub Connector
(9-pin female)
C-series peripheral
connector
CS/CJ-series peripheral
connector
Recommended cable:
CQM1-CIF02
