Specifications Section 3-1
Range: –10 to 10 V

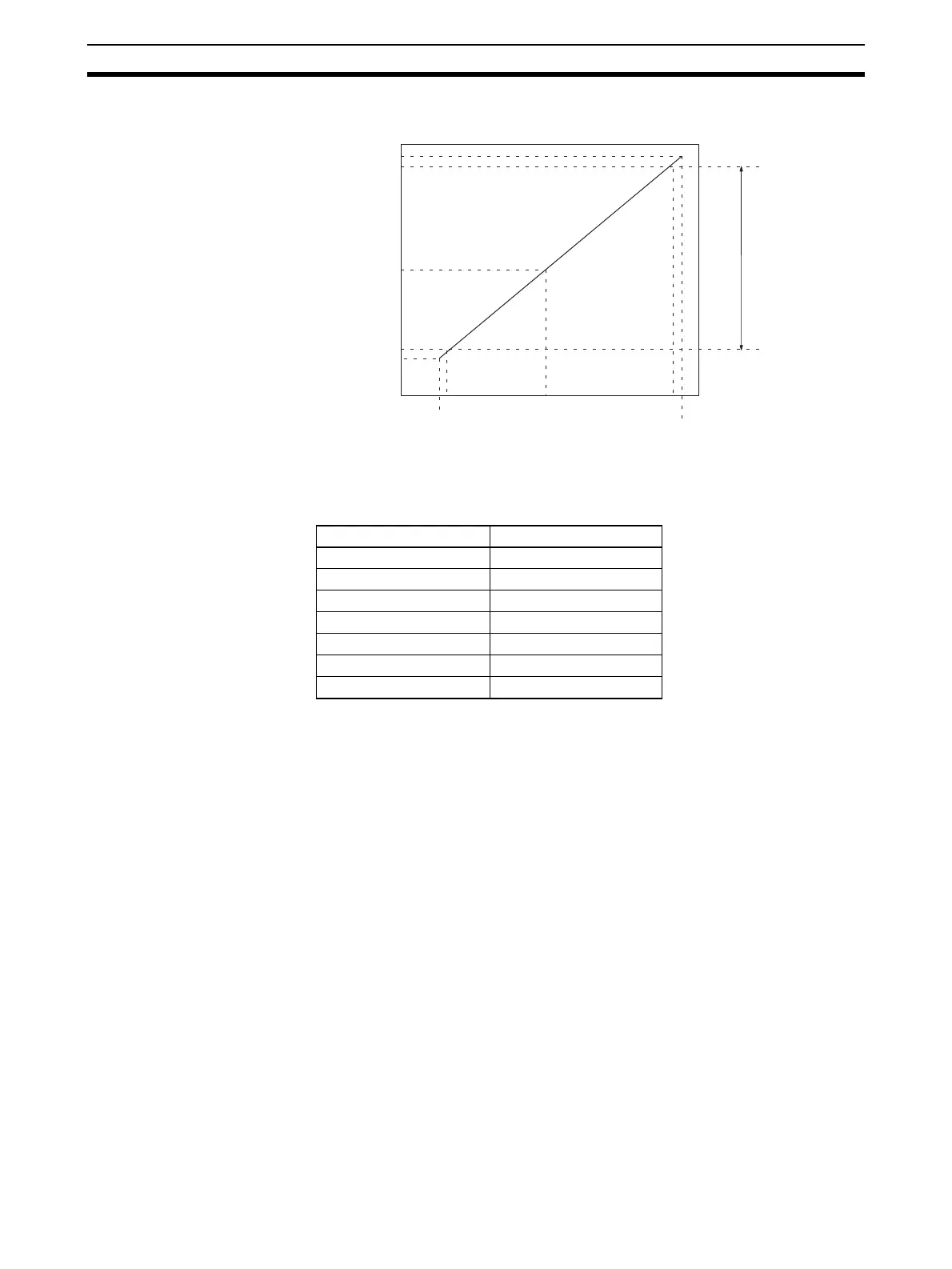

Note The conversion values for a range of –10 to 10 V will be as follows (for a reso-
lution of 4,000):
Resolution: 4,000
(Resolution: 8,000)
0 V 10 V
11 V
0898 (1130)
07D0 (0FA0)
F830 (F060)
F768 (EED0)
0000 (0000)
–10 V
–11 V
Conversion value
Analo
g
input si
g
nal
16-bit binary data BCD
F768 –2200
::
FFFF –1
0000 0
0001 1
::
0898 2200
