5 Remote I/O Slave Communications
5-10
CJ-series DeviceNet Units Operation Manual for NJ-series CPU Unit(W497)
You can set the block allocation order and block allocation areas as required. Refer to CX-Integrator
Ver.2.
@
OPERATION MANUAL (Cat. No. W464).
You can specify the type of connection if the CX-Integrator is used for settings. The number of applica-
ble allocation areas varies with the type of connection used.
• You can use a maximum of three areas (OUT 1, IN 1, and IN 2) if you specify multiple connec-
tions.
• You can use two allocation areas (OUT 1 and IN 1) if you specify the automatic connection setting
or a single connection.

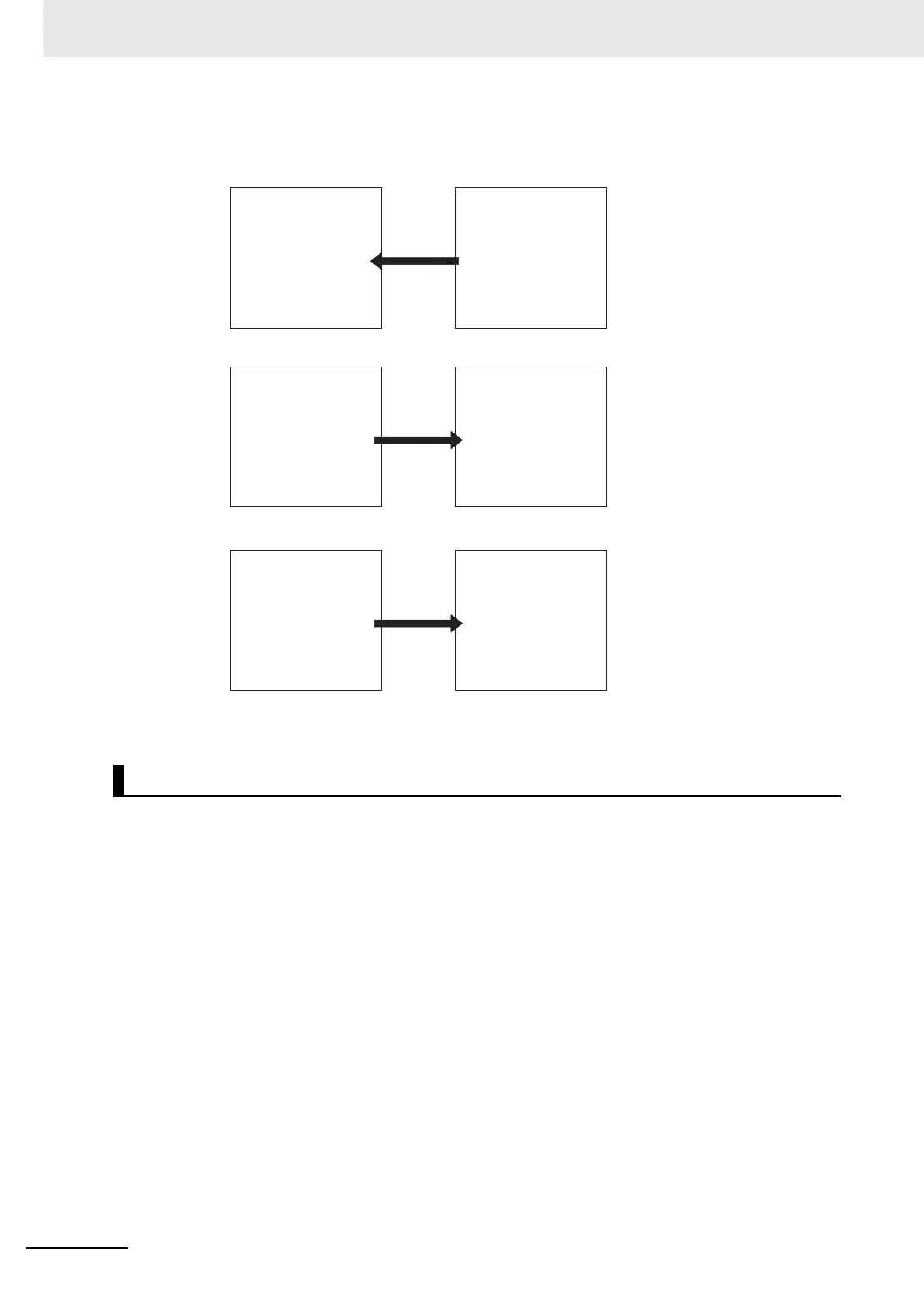

Connection Types
Specified areas in memory used for CJ-series Unit
User-set block order
Master
Slave output
(OUT) area 1
OUT area
Slave input
(IN) area 1
IN area
Bit
First word
specified
15 0
to
Bit
First word
specified
15 0
to
Slave input
(IN) area 2
IN area
Bit
First word
specified
15 0
to
To Next Page
