7. EtherNet/IP Connection Procedure
9
Personal computer
Destination
device
Controller
7. EtherNet/IP Connection Procedure
This section describes the procedure for connecting the PLC and the Controller via
EtherNet/IP using the "procedure for using configuration files".
This document explains the procedures for setting up the Controller and the PLC from the
factory default setting. For the initialization, refer to Section 8 Initialization Method.
■Setting Overview

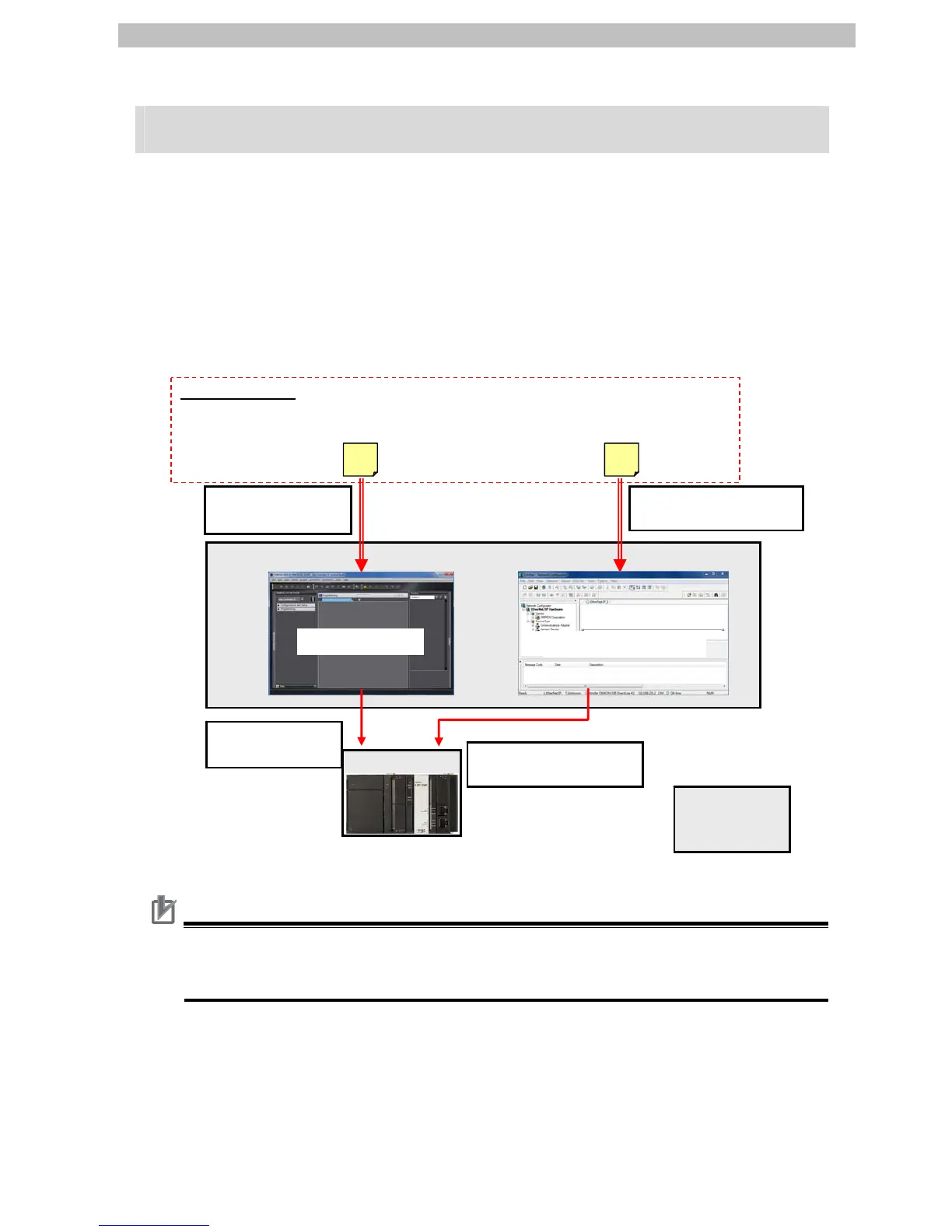

The following figure shows the relationship between the processes to operate the
EtherNet/IP tag data link using the "procedure for using configuration files".
Precautions for Correct Use
Prepare the latest "Sysmac Studio project file" and "Network Configurator v3 network
configuration file" from OMRON in advance.
(To obtain the files, contact your OMRON representative.)
Transferring
the project data
Importing the
project file
Transferring the tag
data link parameters
Reading the network
configuration file
Sysmac Studio
project file
Network Configurator v3
network configuration file
Configuration file
Network Configurator
Sysmac Studio

Omron CJ2 Series Specifications

General

CPU Units	CJ2H, CJ2M
Data Memory Capacity	32K words (CJ2M), 128K words (CJ2H)
EtherNet/IP	Yes (some models)
I/O Capacity	Up to 2, 560 I/O points
Communication Ports	Ethernet, RS-232C
Expansion Units	Up to 40 expansion units
Programming Languages	Ladder diagram, Structured text, Function block diagram
Instruction Execution Speed	0.04 μs (basic instructions)
Serial Ports	1 (RS-232C)
Expansion Slots	Up to 10 (CJ2H)
Operating Temperature	0 to 55°C
Storage Temperature	-25°C to 75°C
Power Supply Voltage	100 to 240 VAC, 24 VDC
