Omron CJ2 Series User Manual

7. EtherNet/IP Connection Procedure
28

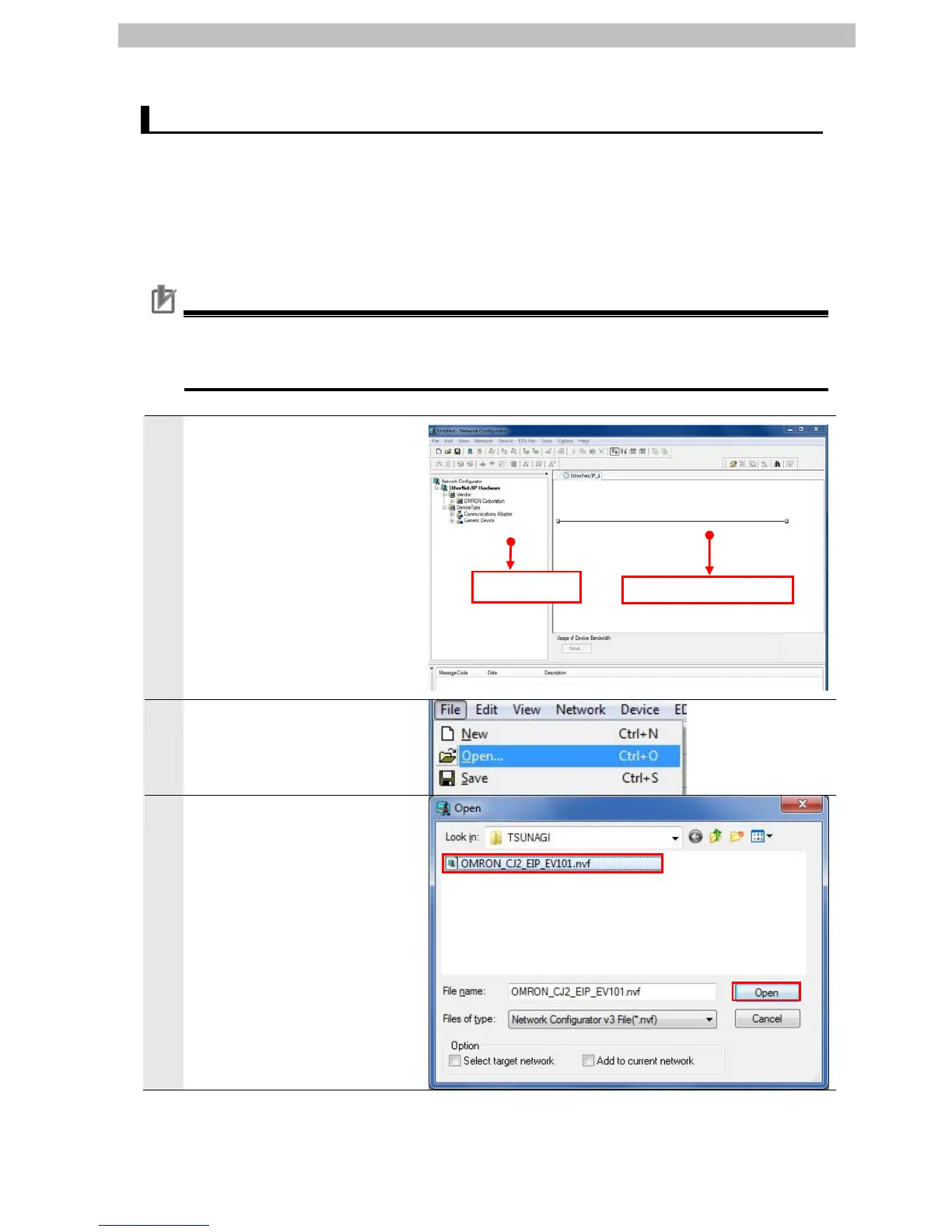

7.4. Setting Up the Network
Set the tag data links for EtherNet/IP.
7.4.1. Opening the Network Configuration File and Connecting Online
Start up the Network Configurator, open the Network Configurator v3 network configuration
file, and connect online with the Controller.
Precautions for Correct Use
Please confirm that the LAN cable is connected before performing the following procedure.
When it is not connected, turn OFF the power supply to each device and then connect the
LAN cable.
1
Start the Network Configurator.
2
Select Open from the File Menu.
3
The Open Dialog Box is
displayed. Select
OMRON_CJ2_EIP_EV101.nvf
(Network Configurator v3
network configuration file) and
click the Open Button.
*Obtain the Network
Configurator v3 network
configuration file from OMRON.
Network Configuration
Hardware List

Omron CJ2 Series Specifications

General

CPU Units	CJ2H, CJ2M
Data Memory Capacity	32K words (CJ2M), 128K words (CJ2H)
EtherNet/IP	Yes (some models)
I/O Capacity	Up to 2, 560 I/O points
Communication Ports	Ethernet, RS-232C
Expansion Units	Up to 40 expansion units
Programming Languages	Ladder diagram, Structured text, Function block diagram
Instruction Execution Speed	0.04 μs (basic instructions)
Serial Ports	1 (RS-232C)
Expansion Slots	Up to 10 (CJ2H)
Operating Temperature	0 to 55°C
Storage Temperature	-25°C to 75°C
Power Supply Voltage	100 to 240 VAC, 24 VDC
