10. Appendix 2 Setting the Tag Data Links Using the Software
45
Personal computer
Global variable
(CSV file)
Destination
device
Controller
10. Appendix 2 Setting the Tag Data Links Using the
Software
This section describes the procedure for setting the Controller without the configuration files
(Procedure for setting parameters from the beginning).
You can also refer to this section when you want to change the parameters of the
configuration files.

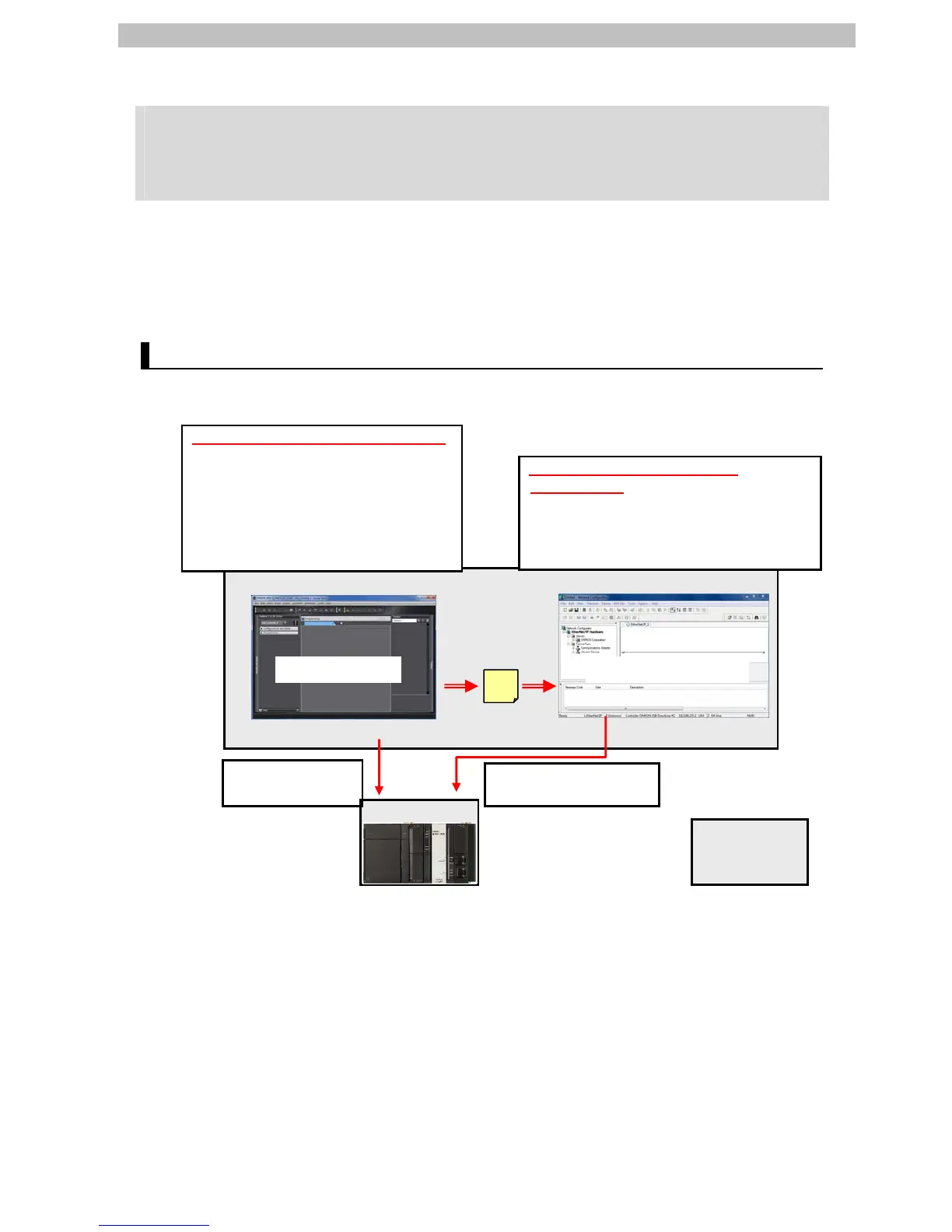

10.1. Overview of Setting Tag Data Links
The following is the relationship between the processes to operate the tag data links using the
"procedure for setting parameters from the beginning".
Settings made with Sysmac Studio
•Setting parameters (IP address,
etc.)
•Setting global variables (name,
network setting and task setting,
etc.)
•Exporting global variables
•Building
Transferring the
Project Data
Transferring tag data
link parameters
Settings made with Network
Configurator
•Uploading network configuration
•Importing CSV file (tag name)
•Tag registration
•Connection setting (associating tags)
Network Configurator Sysmac Studio

Omron CJ2 Series Specifications

General

CPU Units	CJ2H, CJ2M
Data Memory Capacity	32K words (CJ2M), 128K words (CJ2H)
EtherNet/IP	Yes (some models)
I/O Capacity	Up to 2, 560 I/O points
Communication Ports	Ethernet, RS-232C
Expansion Units	Up to 40 expansion units
Programming Languages	Ladder diagram, Structured text, Function block diagram
Instruction Execution Speed	0.04 μs (basic instructions)
Serial Ports	1 (RS-232C)
Expansion Slots	Up to 10 (CJ2H)
Operating Temperature	0 to 55°C
Storage Temperature	-25°C to 75°C
Power Supply Voltage	100 to 240 VAC, 24 VDC
