Omron CJ2 Series User Manual

7. EtherNet/IP Connection Procedure
21

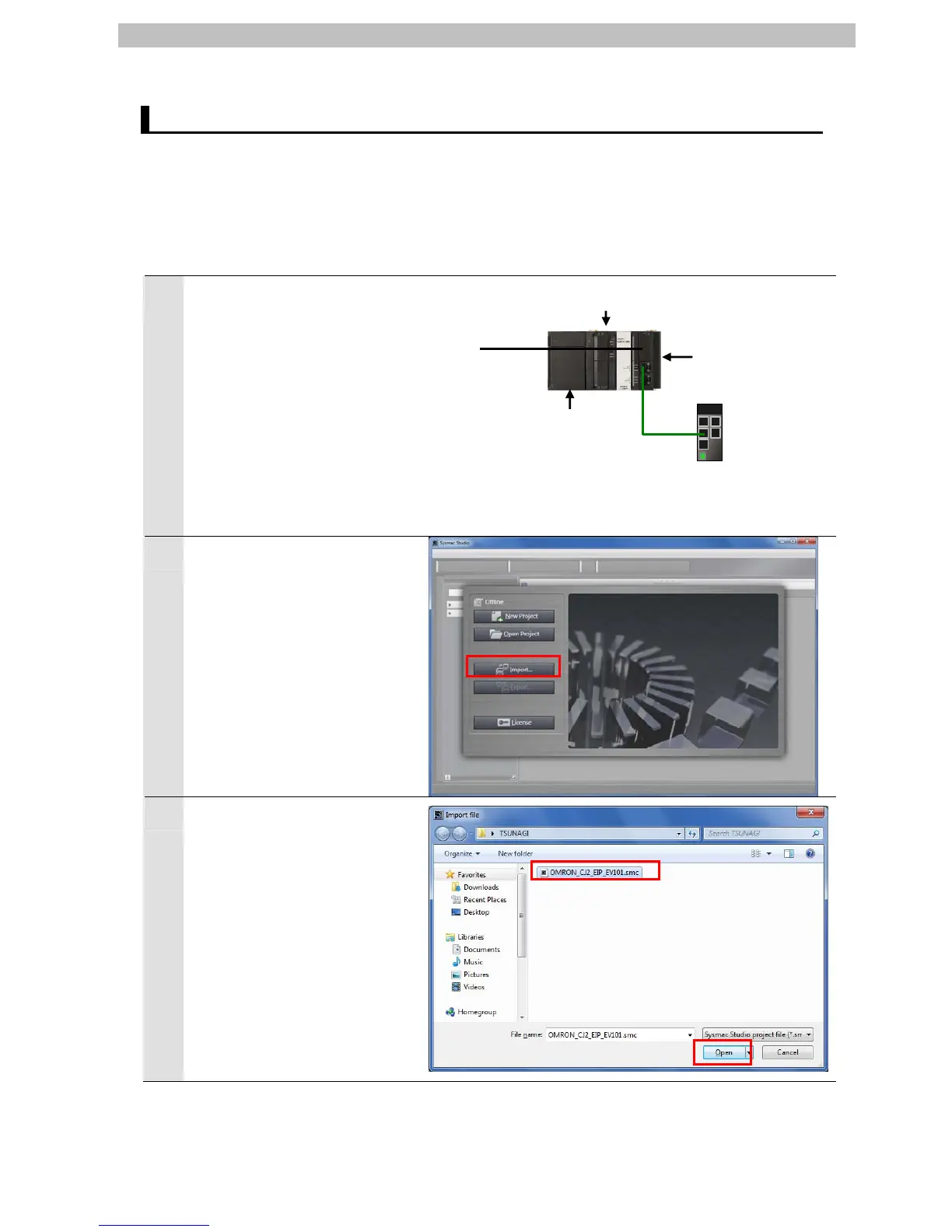

7.3. Setting Up the Controller
Set up the Controller.
7.3.1. Starting the Sysmac Studio and Importing the Project File
Start the Sysmac Studio and import the Sysmac Studio project file.
Install the Sysmac Studio and USB driver in the personal computer beforehand.
1
Connect the LAN cable to the
built-in EtherNet/IP port
(PORT1) of the Controller and
connect the USB cable to the
peripheral (USB) port. Then
connect the personal computer,
Switching Hub, and Controller
by referring to 5.2. Device
Configuration.
Turn ON the power supply to the
Controller.
2
Start the Sysmac Studio.
Click the Import Button.
*If a confirmation dialog box for
an access right is displayed at
start, select to start.
3
The Import File Dialog Box is
displayed. Select
OMRON_CJ2_EIP_EV101.smc
(Sysmac Studio project file) and
click the Open Button.
*Obtain the Sysmac Studio
project file from OMRON.
USB cable
CPU Unit
End Cover
Power Supply Unit
LAN cable
Switching Hub
Controller
