Omron CJ2 Series User Manual

7. EtherNet/IP Connection Procedure
22
4

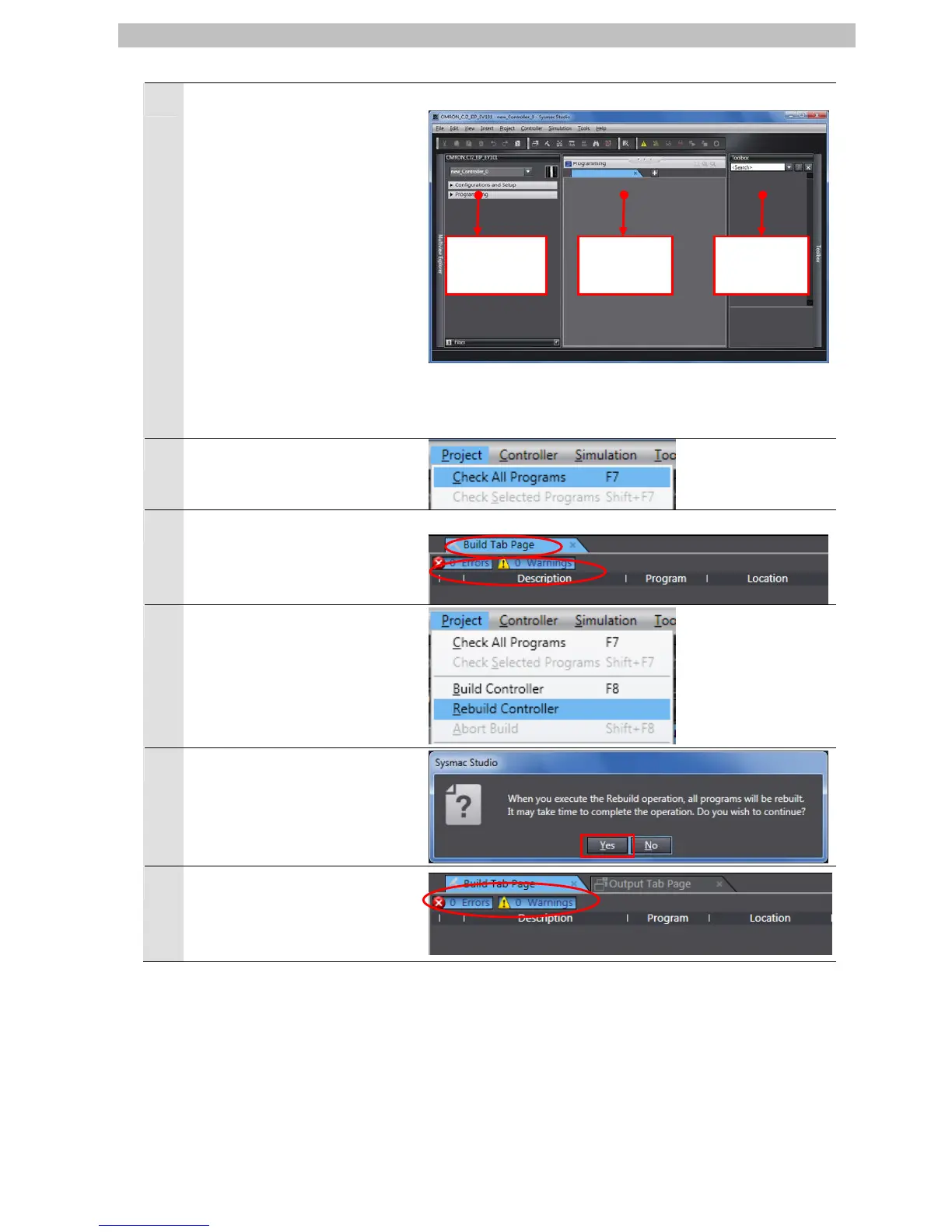

The OMRON_CJ2_EIP_EV101
project is displayed.
The left pane is called Multiview
Explorer, the right pane is called
Toolbox and the middle pane is
called Edit Pane.
*If an error message is
displayed stating "Failed to
Load Descendants", change
the version of the Sysmac
Studio to the version specified
in 5.2. Device Configuration or
higher version.
5
Select Check All Programs
from the Project Menu.
6
The Build Tab Page is displayed
in the Edit Pane.
Confirm that "0 Errors" and "0
Warnings" are displayed.
7
Select Rebuild Controller from
the Project Menu.
8
A confirmation dialog box is
displayed. Confirm that there is
no problem and click the Yes
Button.
9
Confirm that "0 Errors" and "0
Warnings" are displayed in the
Build Tab Page.
Multiview
Explorer
Edit Pane Edit Pane Toolbox

Omron CJ2 Series Specifications

General

CPU Units	CJ2H, CJ2M
Data Memory Capacity	32K words (CJ2M), 128K words (CJ2H)
EtherNet/IP	Yes (some models)
I/O Capacity	Up to 2, 560 I/O points
Communication Ports	Ethernet, RS-232C
Expansion Units	Up to 40 expansion units
Programming Languages	Ladder diagram, Structured text, Function block diagram
Instruction Execution Speed	0.04 μs (basic instructions)
Serial Ports	1 (RS-232C)
Expansion Slots	Up to 10 (CJ2H)
Operating Temperature	0 to 55°C
Storage Temperature	-25°C to 75°C
Power Supply Voltage	100 to 240 VAC, 24 VDC
