Omron CJ2 Series User Manual

10. Appendix 2 Setting the Tag Data Links Using the Software
48
10.3. Setting Up the Controller without the Configuration Files
Set up the Controller using the software.
10.3.1. Starting the Sysmac Studio and Setting the Parameters for the
Controller
Start the Sysmac Studio and set the parameters for the Controller.
Install the Sysmac Studio and USB driver in the personal computer beforehand.
1
Connect the LAN cable and the
USB cable to the Controller, and
turn ON the power supply to the
Controller.
*For details, refer to step 1 of
7.3.1. Starting the Sysmac
Studio and Importing the
Project File.

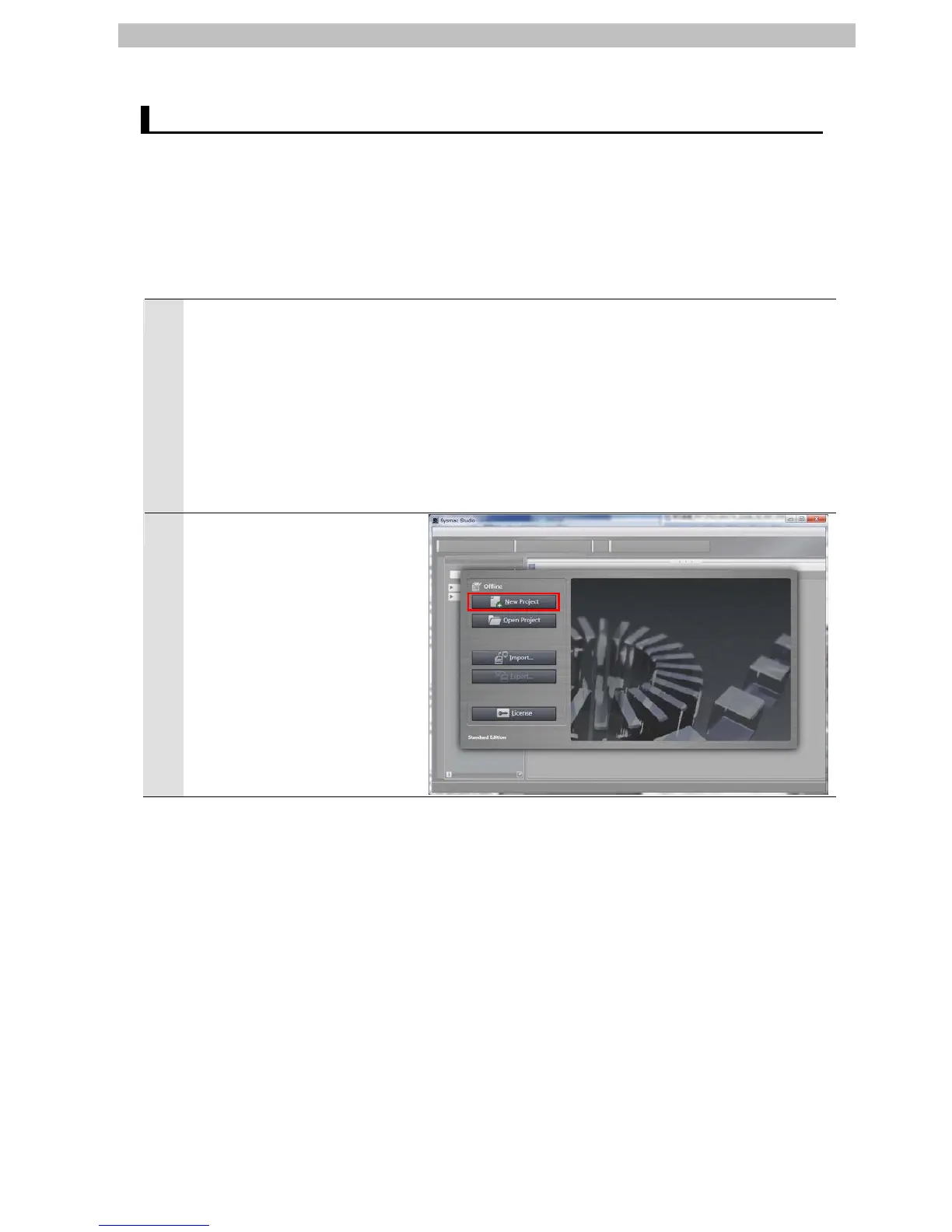

2
Start the Sysmac Studio.
Click the New Project Button.
*If a confirmation dialog box for
an access right is displayed at
start, select to start.

Omron CJ2 Series Specifications

General

CPU Units	CJ2H, CJ2M
Data Memory Capacity	32K words (CJ2M), 128K words (CJ2H)
EtherNet/IP	Yes (some models)
I/O Capacity	Up to 2, 560 I/O points
Communication Ports	Ethernet, RS-232C
Expansion Units	Up to 40 expansion units
Programming Languages	Ladder diagram, Structured text, Function block diagram
Instruction Execution Speed	0.04 μs (basic instructions)
Serial Ports	1 (RS-232C)
Expansion Slots	Up to 10 (CJ2H)
Operating Temperature	0 to 55°C
Storage Temperature	-25°C to 75°C
Power Supply Voltage	100 to 240 VAC, 24 VDC
