Omron CJ2 Series User Manual

5. Applicable Devices and Device Configuration
6

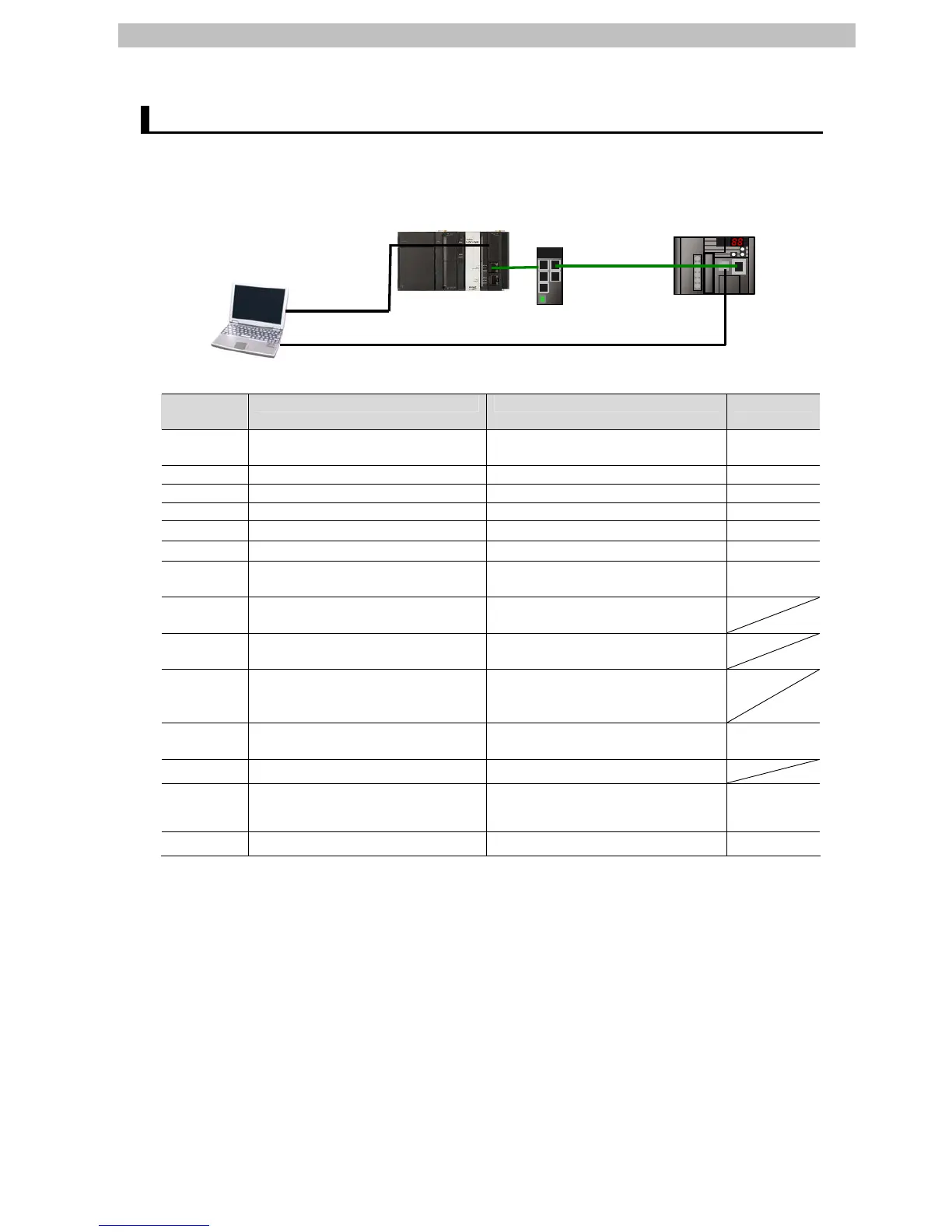

5.2. Device Configuration
The hardware components to reproduce the connection procedure of this document are as
follows:
Manufact
urer
Name Model Version
OMRON NJ-series CPU Unit
(Built-in EtherNet/IP port)
NJ501-1500 Ver.1.05
OMRON Power Supply Unit NJ-PA3001
OMRON Switching Hub W4S1-05C Ver.1.00
OMRON Sysmac Studio SYSMAC-SE2[][][] Ver.1.06
OMRON Network-Configurator (Included in Sysmac Studio.) Ver.3.55
OMRON Sysmac Studio project file OMRON_CJ2_EIP_EV101.smc Ver.1.01
OMRON Network Configurator v3 network
configuration file
OMRON_CJ2_EIP_EV101.nvf Ver.1.01
- Personal computer (OS:
Windows7)
-
- USB cable
(USB 2.0 type B connector)
-
- LAN cable (STP (shielded,
twisted-pair) cable of Ethernet
category 5 or higher)
-
OMRON
PLC CPU Unit
(Built-in EtherNet/IP port)
CJ2M-CPU32
(Built-in CJ2M-EIP21)
Ver.2.0
(Ver.2.1)
OMRON
Power Supply Unit
CJ1W-PA202
OMRON
CX-One
CXONE-AL[][]C-V4
/AL[][]D-V4
Ver.4.[][]
OMRON CX-Programmer (Included in CX-One.) Ver.9.43
Personal computer
(Sysmac Studio and
CX-One installed,
OS: Windows 7)
USB cable
LAN cable
NJ501-1500
(Built-in EtherNet/IP port)
Switching Hub
W4S1-05C
CJ2M-CPU32
(Built-in EtherNet/IP port)
USB cable

Omron CJ2 Series Specifications

General

CPU Units	CJ2H, CJ2M
Data Memory Capacity	32K words (CJ2M), 128K words (CJ2H)
EtherNet/IP	Yes (some models)
I/O Capacity	Up to 2, 560 I/O points
Communication Ports	Ethernet, RS-232C
Expansion Units	Up to 40 expansion units
Programming Languages	Ladder diagram, Structured text, Function block diagram
Instruction Execution Speed	0.04 μs (basic instructions)
Serial Ports	1 (RS-232C)
Expansion Slots	Up to 10 (CJ2H)
Operating Temperature	0 to 55°C
Storage Temperature	-25°C to 75°C
Power Supply Voltage	100 to 240 VAC, 24 VDC
